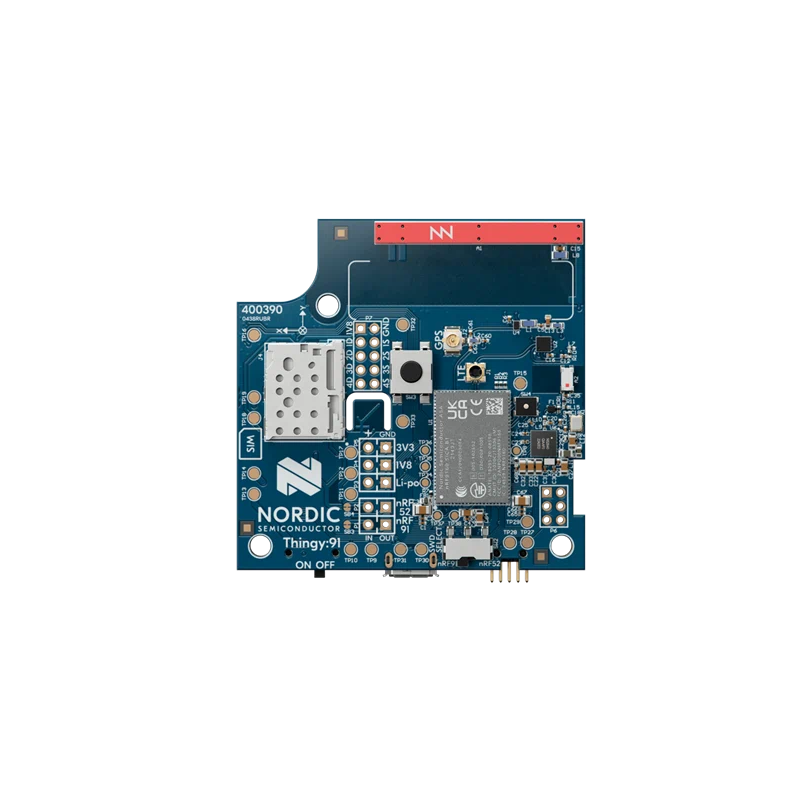

THINGY91X - IoT sensor prototyping platform
search
  • THINGY91X - IoT sensor prototyping platform
  • THINGY91X - IoT sensor prototyping platform
  • THINGY91X - IoT sensor prototyping platform
ID: 1197112
5902186302990
zł569.01
Tax included

zł462.61 tax excl.

compact, battery-powered prototyping platform for rapid development of IoT solutions with support for LTE-M, NB-IoT, GNSS, Bluetooth LE, and NFC. Equipped with the nRF9160 SiP module, environmental sensors, and an asset tracking application, it is ideal for Proof-of-Concept and demonstrations. It includes a global eSIM with free data, and support for the nRF Connect SDK and nRF Cloud platform. Nordic Semiconductor THINGY91X

24h
Available
Available quantity: 1

Description

Nordic Thingy:91 is a compact battery-powered prototyping platform designed for rapid development of IoT solutions based on LTE-M, NB-IoT, and GNSS. Thanks to the built-in nRF9160 SiP module and global LTE band certification, the Thingy:91 can be used almost worldwide. The platform is ideal for creating proof-of-concept, demos, and prototypes at early stages of IoT product development. The device comes preloaded with an advanced asset tracking application that uses a combination of cellular data and GNSS positioning. The kit includes multiple sensors such as air quality, temperature, humidity, light, and acceleration sensors. Thingy:91 also supports Bluetooth Low Energy and NFC thanks to the presence of the nRF52840 chip. The kit includes a global eSIM card from iBasis with a free 10 MB data package, enabling immediate use. The platform works with the nRF Connect SDK and enables remote management and testing through the nRF Cloud platform.

Features

  • Support for LTE-M, NB-IoT, and GNSS
  • Support for Bluetooth Low Energy and NFC
  • Built-in nRF9160 SiP with LTE modem and GNSS positioning
    • Global certification: AT&T, Bell, China Telecom, Deutsche Telekom, KDDI, Telstra, Verizon, Vodafone, and others
    • Certifications: GCF, PTCRB, FCC (USA), CE (EU), UKCA (UK), ISED (CAN), SRRC (CHN), RCM (AUS), and others
    • Supported LTE bands: 700–2200 MHz
    • Modem output power: +23 dBm
    • GNSS support: GPS, QZSS
    • Power-saving features: eDRX and PSM
    • Antenna interface: single 50 Ω pin
    • UICC interface (eSIM/SIM support)
    • Application processor: 64 MHz Arm Cortex-M33
    • Arm TrustZone® and CryptoCell 310 for application security
    • Memory: 1 MB Flash, 256 KB RAM
    • Interfaces: 4 x SPI/UART/TWI, PDM, I2S, PWM, ADC
  • nRF52840 SoC with Bluetooth LE and NFC support
    • 64 MHz Arm Cortex-M4 with FPU
    • 1 MB Flash & 256 KB RAM
  • Built-in environmental sensor: temperature, humidity, air quality, pressure
  • Light and color sensor
  • Accelerometers: low-power and High-G types
  • Programmable user button
  • Multicolor RGB LED
  • Built-in Li-Po battery:
    • 1400 mAh in Thingy:91 v1.0.0
    • 1350 mAh in Thingy:91 v1.4.0 and later
  • Integration with the nRF Cloud platform
  • Support and examples in the nRF Connect SDK

Kit contains

  • Nordic Thingy:91
  • iBasis eSIM card with free 10 MB data package
1197112

Data sheet

Microcontroller
nRF9160
Flash memory
1 MB
Number of I/O
None
Ethernet
none
WiFi/BT module
No
Bluetooth module
Yes
MicroSD slot
No
Length
Other
Width
Other
USB connector type
microUSB type B
