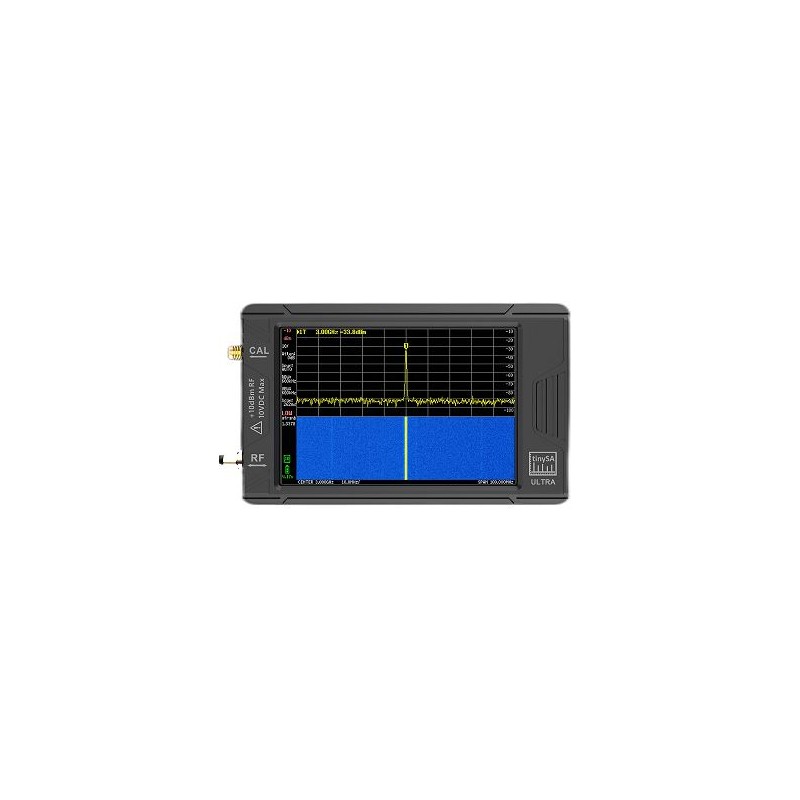

TinySA Ultra - 100kHz - 5.3GHz network analyzer with 4" display
ID: 1186077
5906623467020
zł703.49
Tax included
zł571.94 tax excl.
Network analyzer with two ports. It can perform measurements for frequencies from 100 kHz to 5.3 GHz. Equipped with an LCD display, it can be connected to a computer via USB. TinySA Ultra
Description
The network analyzer is an advanced tool in the field of electromagnetic signal analysis, offering comprehensive measurement capabilities in the frequency range from 100 kHz to 5.3 GHz. It is distinguished not only by its compact design, but also by a clear 4-inch display, on which information about the measured signal characteristics and analysis results are available. Valuable data can be easily read thanks to the color presentation, and up to 450 scanning points on the spectrum graph provide detailed information about the processes taking place.
The analyzer is equipped with two inputs: an input with a range of 0.1 MHz to 800 MHz and an input in Ultra mode covering the band up to 5.3 GHz. The built-in signal generator is an additional function of the analyzer. With two outputs, it generates a sine wave for the range from 0.1 MHz to 800 MHz and a square wave for the range up to 5.3 MHz. The analyzer has bandpass filters with switched resolution, allowing for precise selection of the analysis band. This resolution can be adjusted from 200 Hz to 850 kHz, allowing the examination of both detailed and broadband signals.
In order to ensure the accuracy of measurements, the analyzer is equipped with an input step attenuator, the level of which can be adjusted from 0 dB to 31 dB. Please note that the attenuator cannot be used in conjunction with an LNA (Low Noise Amplifier) to avoid interference. For calibration and self-tests, a built-in calibration signal generator is used to ensure the accuracy and consistency of measurement results. The ability to connect the analyzer to a computer via a USB port enables data transfer and archiving, which supports the analysis and reporting of results. The device has a built-in battery, so it can be used as a portable network analyzer and work for at least 2 hours without access to a power source.
Features
- Display: 4"
- Spectrum analyzer with two inputs
- High quality input for 0.1MHz to 800MHz, Ultra mode input up to 5.3GHz, Observable up to 12GHz
- Signal generator with two outputs, a sine wave output for 0.1 MHz to 800 MHz and a square wave output for 5.3 GHz
- Switchable resolution bandpass filters for both ranges from 200Hz to 850kHz
- Built-in optional 20dB LNA
- Color display showing up to 450 scan points
- microSD card slot
- Input step attenuator from 0dB to 31dB (cannot be used in conjunction with LNA)
- Built-in calibration signal generator for automatic self-test and calibration
- Can be connected to a computer via USB
- Rechargeable battery for at least 2 hours of operation
- Maximum input level +10dBm
Kit contains
- TinySA Ultra
- 2 x SMA M-M cable
- Calibration kit
- SMA F-F Adapter
- USB cable
