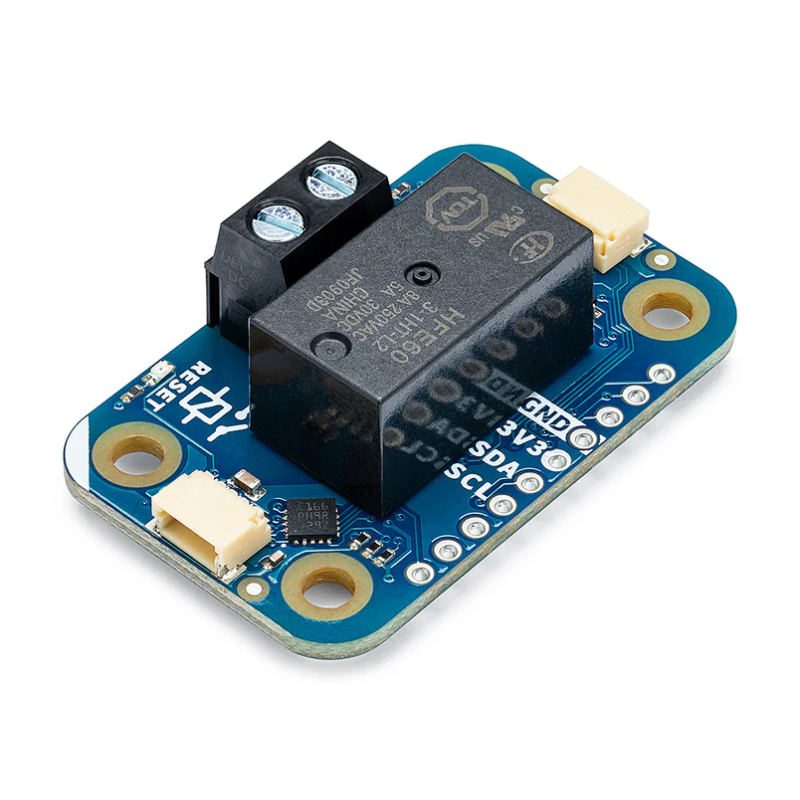

Arduino Modulino Latch Relay - ABX00138
ID: 1202936
zł50.23
Tax included
zł40.84 tax excl.
This relay module features a bistable relay that draws power only when its state changes. It communicates via I2C and uses a Qwiic connector, allowing for quick connection and daisy-chaining without soldering. Designed for controlling DC loads, the module is ideal for IoT projects, home automation, and battery-powered systems. It is fully compatible with Arduino platforms such as the UNO R4 WiFi, UNO Q, Nano, and Nesso N1. Arduino ABX00138
Description
Modulino® Latch Relay is a compact and energy-efficient relay module designed for safe and efficient switching of external loads in automation projects and energy-saving systems. Thanks to the use of a bistable (latching) relay, the module consumes power only when changing state, making it an ideal solution for battery-powered and IoT applications. It is part of the Modulino® family, which simplifies electronics and enables the creation of interactive projects with minimal coding. The module is fully assembled and ready to use straight out of the box. The Qwiic connector allows quick, solder-free connection and daisy-chaining with other modules.
Modulino® Latch Relay works seamlessly with Arduino UNO R4 WiFi, UNO Q, Nano, and Nesso N1 boards. Communication via the I2C bus ensures stable and simple relay control. The module is well suited for smart home projects, lighting control, industrial automation, and energy management systems. Its solid construction enables use in demanding edge IoT environments. Compact dimensions make integration easy even in small enclosures. The module allows straightforward system expansion without the need for hardware redesign. Full compatibility with the Arduino ecosystem provides access to libraries, documentation, and community support. Modulino® Latch Relay is a reliable solution for makers, educators, and professionals.
Features
- Bistable relay HFE60/3-1HT-L2 (Latch Relay)
- Microcontroller: STM32C011
- Communication: I2C
- I2C address: 0x04 (software configurable)
- Connector: Qwiic (I2C)
- Power supply: 3.3 V (Qwiic connector)
- Construction: fully assembled, plug-and-play
- Energy-efficient bistable relay
- Intended use: DC load control
- Dimensions: 25.36 × 41 mm
- Weight: 4.4 g
Kit contains
- Modulino® Latch Relay module
- Qwiic cable (5 cm)
