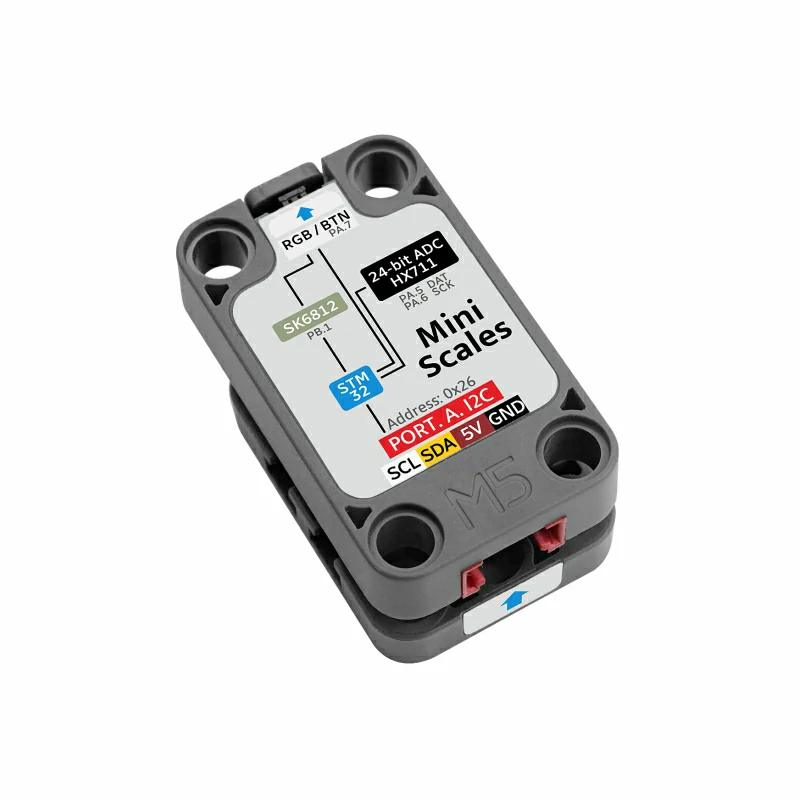

M5Stack U177 – Unit Mini Scales – 5 kg scale module with HX711, I2C, STM32, RGB LED
ID: 1200565
zł37.39
Tax included
zł30.40 tax excl.
M5Stack U177 – Unit Mini Scales is a ready-to-use weighing module based on the HX711 and STM32, featuring I2C communication and support for popular platforms. It is used in laboratory, production and educational projects that require precise mass measurement.
Description
The Unit Mini Scales is a compact weighing module equipped with a load cell sensor with a maximum capacity of 5 kg, an HX711 ADC converter, and an STM32F030F4P6 microcontroller, enabling direct weight readout via the I2C interface. Thanks to the built-in button, it is possible to quickly zero the readings and set the tare. An additional RGB LED indicator (SK6812) can be used for measurement status signaling or other events.
The module is designed to work with development platforms such as Arduino, UiFlow and Python. The enclosure includes M3 mounting holes with nuts, which facilitates installation in research, production and educational projects.
Properties
- Type: load-cell scale module (digital scale)
- Load cell sensor capacity: up to 5 kg
- ADC converter: HX711
- Microcontroller: STM32F030F4P6 (ARM Cortex-M0)
- Communication interface: I2C (supports multiple modules simultaneously)
- Button: zero and tare function
- LED: SK6812 programmable RGB LED
- Compatibility: Arduino, UiFlow, Python
- Dimensions: 40 × 24 × 18 mm
- Mounting holes: with M3 nuts (6 × 2.25 mm)
Included
- 1 × M5Stack Unit Mini Scales
- 4 × M3 nuts (hex, 6 × 2.25 mm)
- 1 × HY2.0-4P Grove cable (20 cm)
