zł92.42 tax excl.
ArduCam MT9D111 2MPx camera module with matrix MT9D111. Resolution: 1600 x 1200 px (2 MPx), pixel size: 2.8 x 2.8 μm, built-in JPEG encoder - operating in real time. B0010
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description

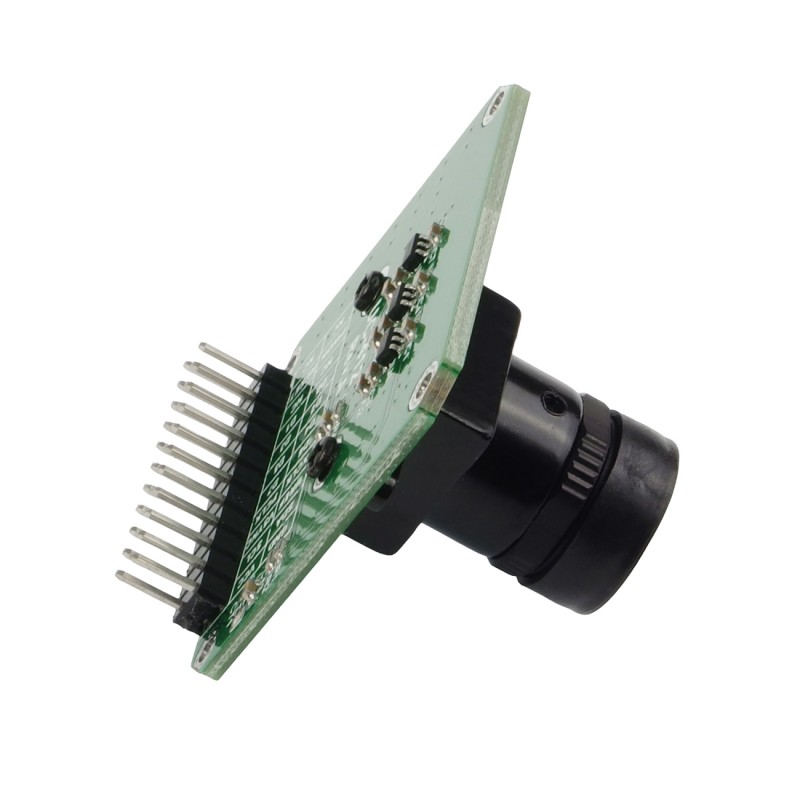

The ArduCam MT9D111 2MPx camera module is based on the MT9D111 matrix. Allows you to record single images and video recording by AVR microcontrollers ( ARDUINO boards), STM32 , Raspberry Pi single board computers ( Raspberry Pi 3 B + model , Raspberry Pi 3 B model , Raspberry Pi 2 B model , Raspberry Pi 1 B + model ) or BeagleBone Black .
The data transfer rate for JPEG compression and full 1600 x 1200 pixel resolution is 15 fps. The module is equipped with a 1/4 '' lens with an M12x0.5 connector. The camera module works with 3.3 V and communicates via a parallel interface.
properties
- Matrix MT9D111, CMOS, 2 MPx, 1 / 3.2 ''
- Resolution: 1600 x 1200 pixels (2 MPx)
- Pixel size: 2.8 x 2.8 μm
- Integrated auto-focus
- Built-in JPEG encoder - working in real time
- Built-in A / C converter with a resolution of 10 bits
- Sensitivity: 1.0 V / lux-sec (for 550 nm)
- SNRMAX: 42 dB
- Speed:
- 21600 x 1200 px: 15 fps
- 800 x 600 px: 30 fps
- JPEG 4: 2: 2 and 4: 2: 0
- 1/4 "lens with M12x0.5 connector
- Work voltage:
- I / O outputs: 1.7 V to 3.6 V
- Core: 1.7 V to 1.9 V (1.8 V nominal)
- Analogue circuits: 2.5 V to 3.1 V (nominal 2.8 V)
Data sheet
- Resolution
- 2Mpx
- Interface
- Parallel
- Sensor
- MT9D111
- IR filter
- Yes
- Lens assembly
- M12x0.5
