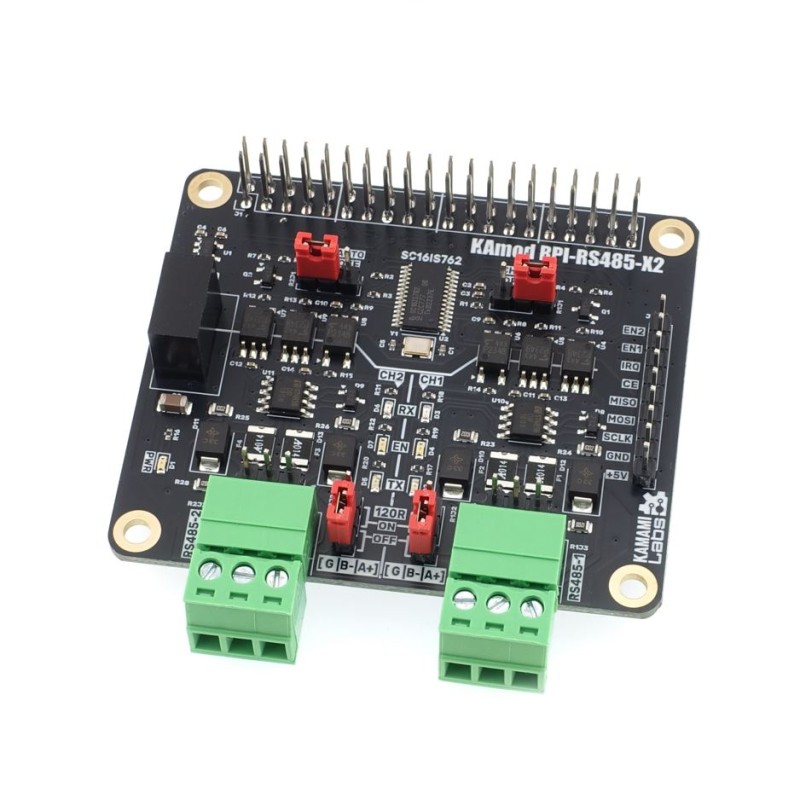

Main view
search
  • Main view
  • Angled view
  • Full kit
ID: 1200267
zł74.78
Tax included

zł60.80 tax excl.

Module for Raspberry Pi with two RS485 interfaces, controlled via SPI, featuring galvanic isolation, line protection, and communication support up to 500 kbps

Delivery date unknown
Out-of-Stock

Description

KAmod RPi RS485 X2 allows easy expansion of Raspberry Pi mini computers, including Raspberry Pi 5, with two RS485 interfaces. The interfaces incorporate advanced protection circuits and are galvanically isolated from the control circuitry, ensuring stable operation and resistance to interference and failures. The module is designed to be compatible not only with Raspberry Pi 5 but also with other Raspberry Pi series boards. It is controlled via the SPI interface available on the 40-pin GPIO header of Raspberry Pi and can also be used with other platforms such as Arduino or STM32.

Features

  • 2 RS485 interfaces controlled by the SC16IS762 controller (SPI to 2x UART)
  • RS485 interfaces equipped with ST485 transceivers
  • RS485 interfaces galvanically isolated from control circuits
  • Option to connect 120 Ω termination resistors to each RS485 line
  • Maximum RS485 communication speed: 500 kbps
  • Control via SPI interface operating at 3.3 V
  • Automatic control of RS485 transceiver transmission direction
  • Power supply: 5 V / 0.2 A drawn from the Raspberry Pi board or from an external source
  • Easy mounting on Raspberry Pi 5, including versions with the RPi Active Cooler heatsink
  • Module dimensions: 65 x 56 mm, height approx. 15 mm (plus bottom connector with a height of approx. 13 mm)

Kit includes

  • 1x Assembled and tested module
  • 1x Set of screws and spacers for mounting the module to a Raspberry Pi board
1200267

Data sheet

Compatible with
Raspberry Pi

Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20

Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
