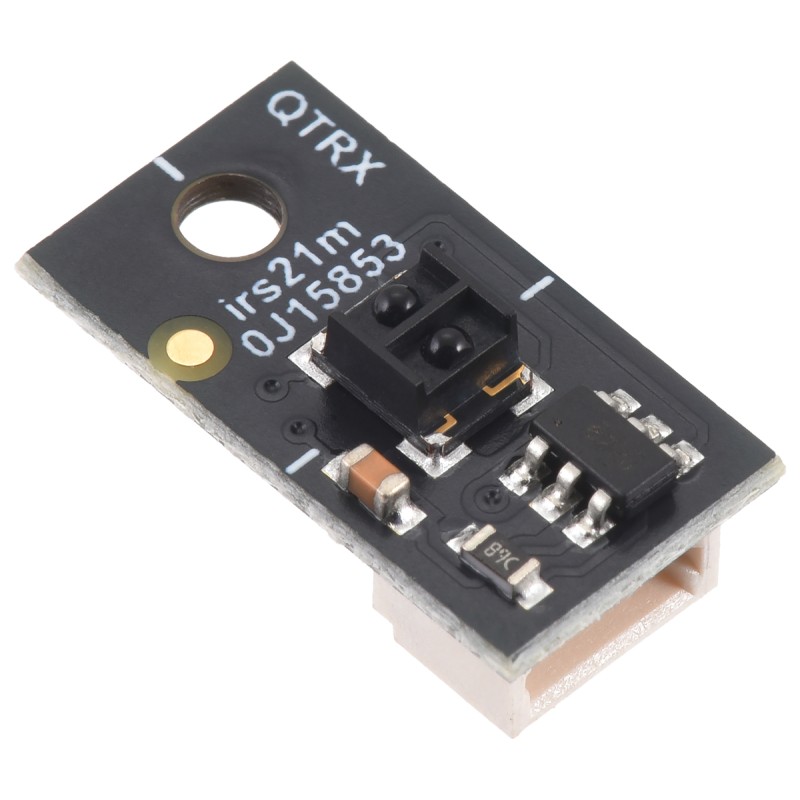

RC Reflectance Sensor Module 1-Channel 8mm-QTRX-MD-01RC-S
ID: 1202577
zł16.08
Tax included
zł13.07 tax excl.
Reflectance sensor module with a single QTRX sensor and RC output, designed for detecting differences in surface reflectivity. Supply voltage 2.9–5.5V, low current consumption, version with side-entry JST-SH connector. Pololu 4340
Description
The reflectance sensor module is designed to detect changes in light reflected from a surface, such as contrast between light and dark areas. The solution is commonly used in mobile robots of the line follower type, edge and drop detection systems, as well as simple measurement setups and educational projects.
The module is based on a single QTRX-type sensor consisting of an infrared LED emitter and a phototransistor. The RC output generates a digital signal in which the reflectance level is encoded in the pulse duration, enabling direct connection to microcontroller I/O pins without the need for an ADC.
An operating voltage range of 2.9–5.5V allows integration with both 3.3V and 5V systems. The module features very low current consumption, independent of the supply voltage. The optimal sensing distance from the reflective surface is approximately 10mm, with a maximum recommended detection distance of up to 30mm. The version with a side-entry JST-SH connector allows convenient cable routing in applications with limited mounting space.
Features
- Sensor type: QTRX
- Number of sensors: 1
- Sensor spacing: 8 mm (distance between optical elements)
- LED current at full brightness: 3.5 mA (independent of supply voltage)
- Maximum module current consumption: 5 mA
- Output signal: digital RC output, compatible with microcontroller I/O pins; value represented by pulse duration
- Optimal sensing distance: 10 mm
- Maximum recommended sensing distance: 30 mm

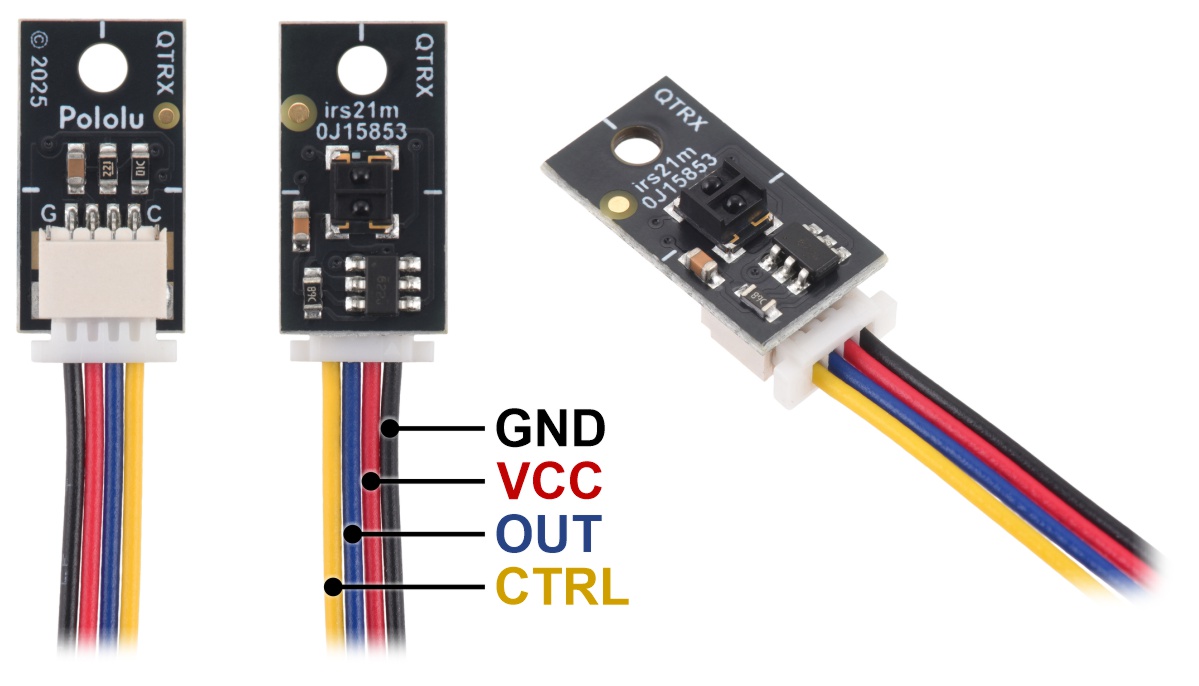

- Connector: side-entry JST-SH 4-pin
- Supply voltage: 2.9 – 5.5 V
- Dimensions: 7.5 x 20.0 x 3.0 mm
- Weight: 0.35 g
1202577
Data sheet
- Type of sensor
- QTRX
- Output type
- digital
- Number of sensors
- 1
- Power supply voltage
- 2,9 - 5,5 V
