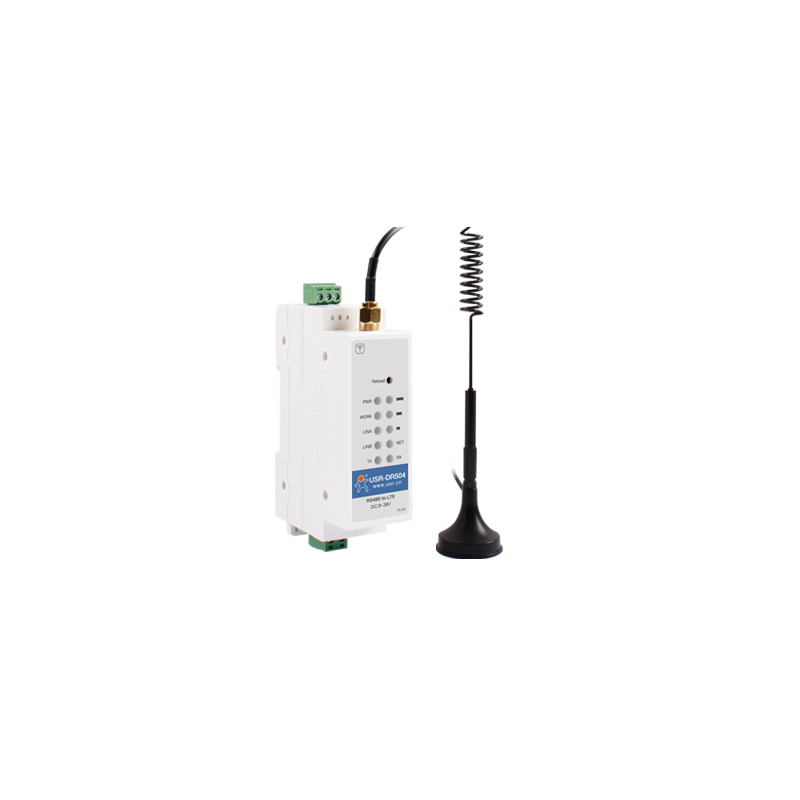

USR-DR504-G - LTE Cat.4 cellular modem with DIN-rail mounting, RS485 and Modbus TCP/RTU support
search
  • USR-DR504-G - LTE Cat.4 cellular modem with DIN-rail mounting, RS485 and Modbus TCP/RTU support
ID: 1200632
zł307.11
Tax included

zł249.68 tax excl.

USR-DR504-G is a compact LTE modem with DIN mounting, RS485 and Modbus conversion functions, designed for reliable data transmission in IoT systems, industrial automation and telemetry devices. Thanks to wide band compatibility and advanced configuration options, it provides flexibility and high connection availability in demanding applications.

4 weeks
Awaiting delivery
Kamami is the official distributor of USR converters. All products of this brand in our offer are original and come directly from the manufacturer.

Description

USR-DR504-G is an industrial LTE Cat.4 cellular modem with DIN-rail mounting, designed for data transmission over the 4G network with fallback to 3G/2G. It enables bidirectional transmission via TCP/UDP, HTTP, SMS and supports Modbus TCP and RTU protocol conversion, allowing integration with automation systems. Thanks to MQTT support, the modem can be used in advanced IoT projects. The compact housing, wide power supply voltage range and resistance to electromagnetic interference enable operation in industrial environments. The transmission speed reaches 150 Mbps downstream and 50 Mbps upstream. The device works with mobile operators worldwide due to the wide range of supported LTE, UMTS and GSM bands.

Properties

  • LTE Cat.4 cellular connectivity with fallback to 3G/2G
  • Transmission support via TCP/UDP, HTTP, SMS, MQTT
  • Modbus RTU ↔ Modbus TCP protocol conversion
  • Supported frequency bands (global version USR-DR504-G):
  • LTE-FDD: B1/B3/B7/B8/B20/B28A
  • LTE-TDD: B38/B40/B41
  • WCDMA: B1/B8
  • GSM: B3/B8
  • RS485 interface (3-pin)
  • Support for micro SIM 3FF cards (1.8 V/3.0 V)
  • SMA antenna connector
  • Status LEDs: PWR, WORK, NET, LINK, Tx, Rx, RSSI
  • DC 9–36 V power supply with reverse polarity protection
  • Current consumption: 67–102 mA at 12 V
  • Resistance to ESD, EFT, surge in accordance with IEC 61000-4-2/4-5 level 3
  • Operating temperature range: -35°C to +75°C
  • Dimensions: 28 × 64.7 × 109.7 mm
  • DIN-rail mounting
  • LTE transmission speed: up to 150 Mbps (DL), 50 Mbps (UL)
  • Support for remote updates via FTP and FOTA
  • Certifications: CE, RoHS

Included in the set

  • USR-DR504-G modem
  • LTE antenna
  • Power connector
  • DIN-rail mounting bracket
