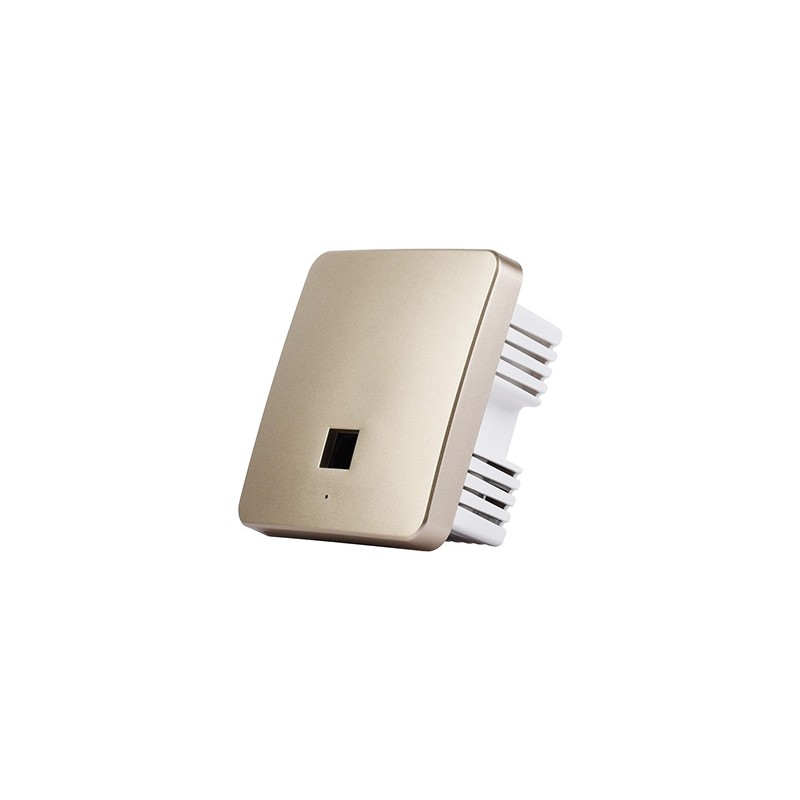

Wall-mounted 86-type WiFi access point with a total wireless throughput of 3000 Mbps, powered via PoE, intended for home and commercial applications. Waveshare AP-AX3000G-POE

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The Waveshare AP-AX3000G-POE is designed for building high-performance wireless networks in home, office, and commercial environments. The 86-type wall-mount design allows installation directly into a standard wall back box, providing a clean appearance and saving space. Power over Ethernet (PoE) simplifies cabling and reduces installation complexity.

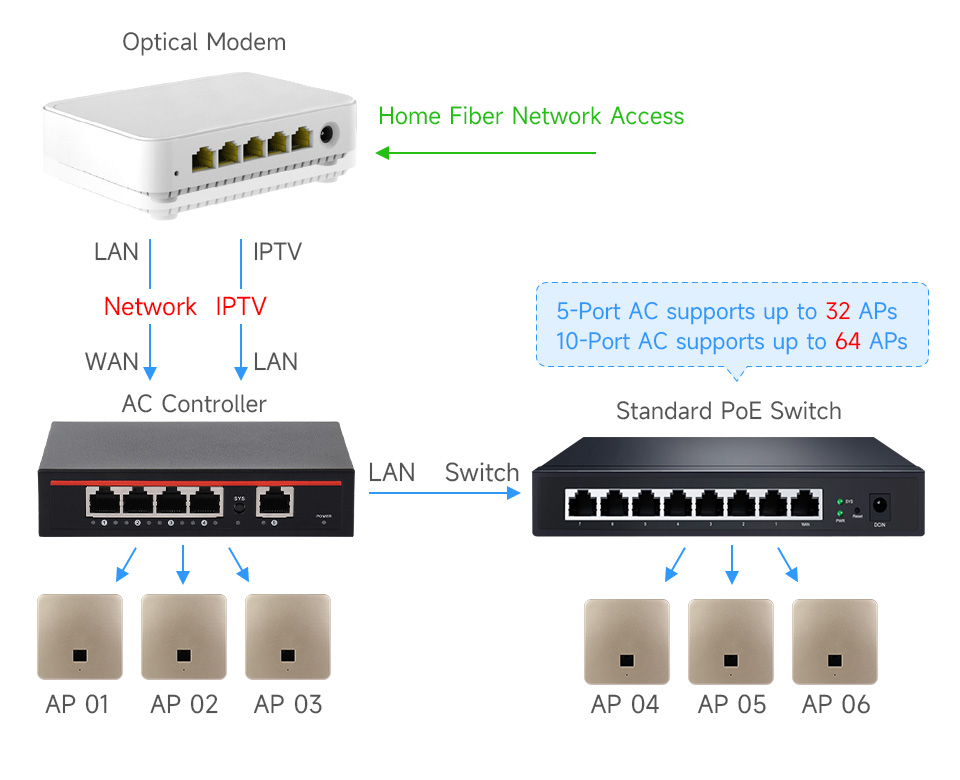

The device supports a total wireless throughput of up to 3000 Mbps across the 2.4 GHz and 5 GHz bands, with a maximum channel width of up to 160 MHz. A built-in processor and optimized antenna and RF design ensure stable connections and uniform signal coverage. The access point supports Fit AP and Fat AP operating modes and can be centrally managed using a compatible PoE router.

The AP-AX3000G-POE is equipped with a Gigabit Ethernet WAN port with PoE support, status indicator LEDs, and a hidden reset button. The device is designed to operate over a wide range of environmental conditions, making it suitable for various installation scenarios.


Features

  • Model: AP-AX3000G-POE
  • Manufacturer: Waveshare
  • Device type: wall-mounted WiFi access point
  • Mounting standard: 86 type
  • Total wireless throughput: 3000 Mbps
  • 2.4 GHz band: up to 574 Mbps
  • 5 GHz band: up to 2402 Mbps
  • Maximum channel width: 160 MHz
  • Operating modes: Fit AP, Fat AP
  • Network port: 1 x Ethernet 10/100/1000 Base-T (PoE)
  • Power supply: PoE
  • Antenna type: built-in, high-performance
  • Maximum transmit power 2.4 GHz: 21.5 ±1.5 dBm
  • Maximum transmit power 5 GHz: 23.5 ±1.5 dBm
  • Recommended number of connected devices: up to 64
  • Maximum number of connected devices: 246
  • Button: hidden reset
  • Indicators: status and activity LEDs
  • Color: light gold
  • Dimensions: 86 x 86 x 42 mm
  • Device weight: 190 g ±10%
  • Operating temperature: 0°C – 40°C
  • Storage temperature: -40°C – 70°C
  • Operating humidity: 10%–90% RH, non-condensing
