TTL-to-RS485 converter module (C), half-duplex galvanically isolated, up to 1.2 km - Waveshare 27479
ID: 1196641
5902186303935
zł27.16
Tax included
zł22.08 tax excl.
The TTL TO RS485 (C) module enables the conversion of TTL serial signals to differential RS485 while maintaining high noise immunity and galvanic isolation. With its compact design and built-in ESD and surge protection, it is well-suited for automation systems, IoT, industrial applications, and distributed communication—especially in high-interference environments.
Description

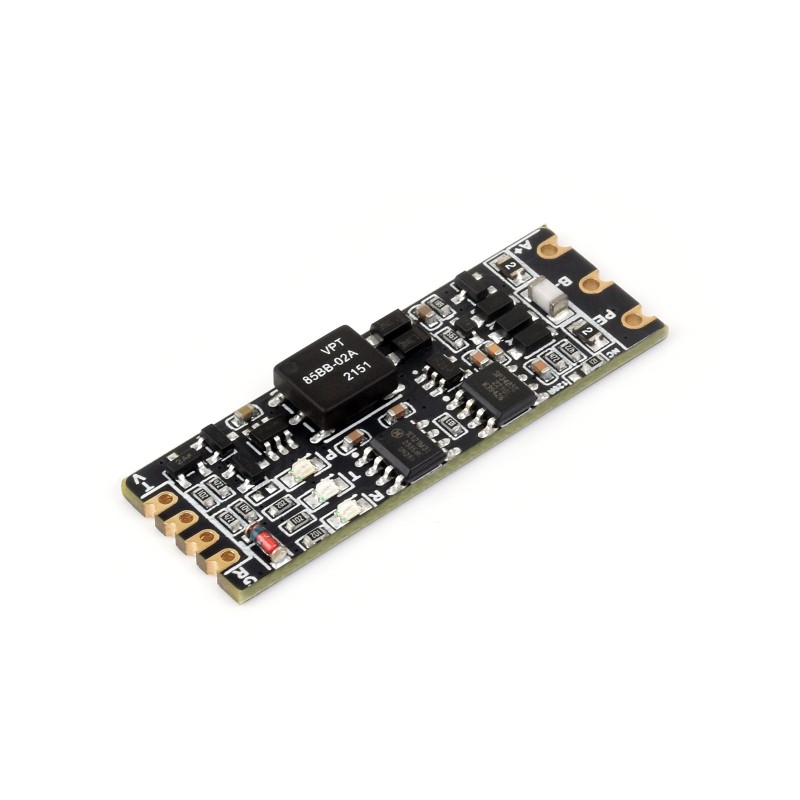

The TTL TO RS485 (C) module converts TTL signals (3.3 V – 5 V) to differential RS485 signals, providing galvanic isolation for both power and signal lines and supporting half-duplex transmission over distances up to 1.2 km. Featuring a compact design, immersion gold finish, and castellated mounting holes, it enables easy integration with target devices.
Designed for high reliability and noise resistance, it includes surge protection, electrostatic protection, and a resettable fuse. A built-in 120 Ω termination resistor can be activated via a solder jumper to match impedance on the RS485 bus.
Features
- TTL (3.3–5 V) to RS485 signal conversion in half-duplex mode
- Galvanic isolation of power and signal lines
- Transmission range: TTL – up to 10 m, RS485 – up to 1.2 km
- RS485: point-to-point or multipoint communication (up to 32 nodes)
- Protections: TVS transients, 6 kV ESD, protective diodes, resettable fuse
- 120 Ω termination resistor, enabled via solder jumper
- Compact dimensions: 42.8 × 15.2 × 4.75 mm
- Indicator LEDs: power (PWR), transmit (TXD), receive (RXD)
- Immersion gold finish, castellated holes for easy integration
