USB-RS485 converter module with FT232RL chip
ID: 1183122
5906623446261
zł14.96
Tax included
zł12.16 tax excl.
USB-RS485 converter module based on the FTDI FT232RL chip. Provides communication between USB interface and RS485 serial standard
Description
USB-RS485 converter based on the FTDI FT232RL chip. It provides easy communication between USB interface and RS485 serial standard with up to 32 devices. It has a number of built-in protection circuits, such as ESD protection and TVS diode. The converter is characterized by fast communication, stability, reliability and safety. Therefore, it is an ideal choice for industrial control devices and applications with high communication requirements.
Features
- Industrial USB-RS485 converter
- Transmission speed: 300 to 921600 bps
- Host port: USB 2.0
- Device port: RS485
- USB connector: USB type B
- RS485 connector: screw terminal, TX, RX, GND
- Transmission mode: point-to-multipoint, up to 32 nodes
- FTDI FT232RL and MAX485 chip
- LEDs to indicate transmission
- Transmission range: 1200 m
- Operating system: Windows 10, 8.1, 8, 7, XP, Linux
- Dimensions: 75 x 18 x 14 mm
1183122
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Cabel USB-A - USB-B 2.0 0,5m, Black, Lanberg, CA-USBA-11CC-0005-BK
zł2.95
24h
Available quantity: 15
Available
Cabel USB-A - USB-B 2.0 1m, Black, Lanberg, CA-USBA-10CC-0005-BK
zł3.86
24h
Available quantity: 6
Available
USB-RS485 converter for industrial applications. It provides communication between the USB interface and the RS485 serial standard. Waveshare USB TO RS485
zł44.65
24h
Available quantity: 195
Available
RS232 to RS485 converter dedicated to industrial applications
zł18.03
24h
Available quantity: 2
Available
Other products in the same category (16)
KAmodRPI RS485 CAN HAT is a shield for the Raspberry Pi computer that extends its interfaces with RS485 and CAN. Bus signals are led out to goldpin connectors and terminal blocks.
zł39.90
24h
Available quantity: 83
Available
The module with the UART-RS485 converter is designed to work with the Raspberry Pi Pico. It has a built-in SP3485 chip and enables data transmission between the UART interface and the RS485 device. Waveshare Pico-2CH-RS485
zł23.19
4 weeks
No product available!
USB-RS485 converter for industrial applications. It provides communication between the USB interface and the RS485 serial standard. Waveshare USB TO RS485
zł44.65
24h
Available quantity: 195
Available
UART-RS485 converter module based on the TD (H) 541S485H chip. Equipped with power isolation and TVS. DFRobot DFR0845
zł86.46
24h
Available quantity: 2
Available
UART-RS485 converter module. It enables communication of Arduino boards with industrial modules. DFRobot DFR0259
zł48.68
24h
Available quantity: 2
Available
USB-RS485 converter for industrial applications. It provides communication between the USB interface and the RS485 serial standard. Waveshare USB TO RS485 (B)
zł27.68
24h
Available quantity: 64
Available
Converter dedicated to industrial applications. It provides communication between the USB interface and the RS485 serial standard
zł12.10
4 weeks
No product available!
Converter dedicated to industrial applications. It provides communication between the USB interface and the RS232 and RS485 serial standard
Regular pricezł66.95zł46.36
24h
Available quantity: 4
Available
Converter dedicated to industrial applications. It provides communication between the USB interface and the RS422 and RS485 serial standard
zł60.16
24h
Available quantity: 7
Available
Converter dedicated to industrial applications. It provides communication between the USB interface and the RS485 serial standard
zł81.38
24h
Available quantity: 1
Available
USB-RS485 converter module based on the FTDI FT232RL chip. Provides communication between USB interface and RS485 serial standard
zł14.96
4 weeks
No product available!
USB-RS485/RS422 converter dedicated to industrial applications. It provides communication between USB interface and RS485 and RS422 serial standard. YN-4852
zł23.97
Delivery date unknown
No product available!
RS485 bus transceiver controlled via USB, equipped with FT230 chip, USB-C connector, ST485BDR controller for 64 devices, galvanic isolation, overvoltage protection and RS485 bus terminator option, ensuring effective and safe communication in industrial systems
zł79.90
24h
Available quantity: 178
Available
USB - RS232/RS485 converter with the original FT2132RNL chip. It uses a USB type A connector and a screw connector to connect RS232 and RS485 interfaces. Supports a wide range of operating systems: Mac, Linux, Android and Windows 11, 10, 8.1, 8, 7. Waveshare USB TO RS232/485
zł51.72
4 weeks
No product available!

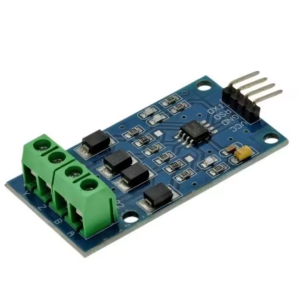

RS422 to TTL converter module based on MAX490 for long-distance bidirectional serial communication, up to 1000 meters, with a transmission speed of up to 2.5 Mbps. Equipped with ESD protection up to 15 kV, TVS diodes and 120 Ω terminating resistors, it provides stability and immunity to interference in demanding industrial conditions. Powered by 5 V, it works with TTL logic and is compatible with popular platforms, and LED indicators facilitate diagnostics and integration.
