ID: 1195093
zł774.91
Tax included

zł630.01 tax excl.

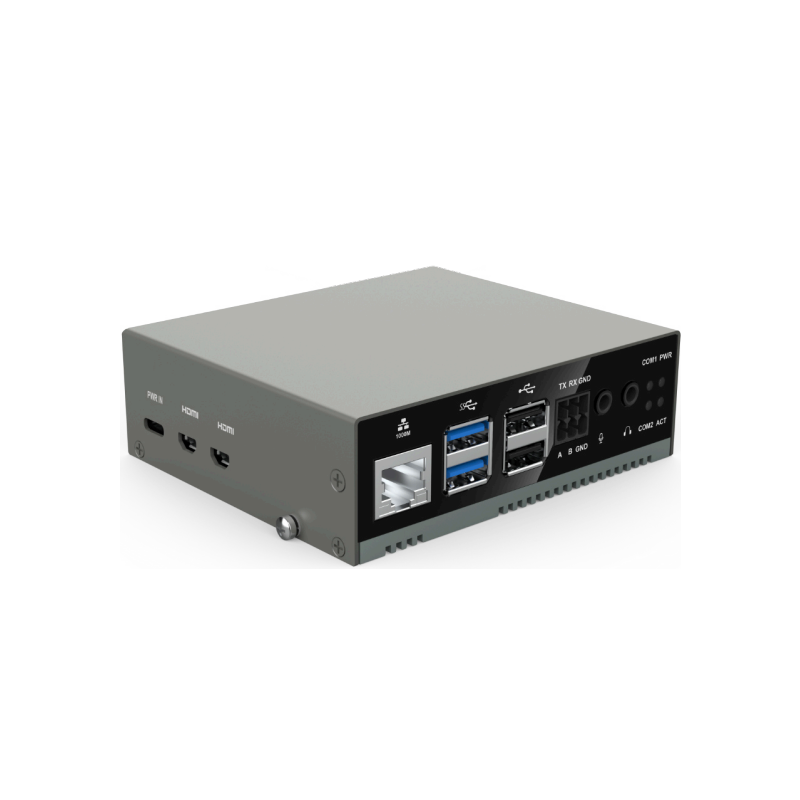

Industrial computer based on Raspberry Pi 5 with quad-core Cortex-A76 2.4GHz processor and 8GB LPDDR4X RAM provides high performance in industrial and multimedia applications, offering dual 4Kp60 video output via HDMI ports. Equipped with Gigabit Ethernet, USB 3.0 and 2.0 ports, RS232, RS485, RTC and backup power option, it is ideal for IoT, automation and data processing. Edatec ED-IPC3020-08320

5 weeks
Awaiting delivery

Description

Industrial computer based on the Raspberry Pi 5, powered by the Broadcom BCM2712 processor with a quad-core Arm Cortex-A76 64-bit architecture clocked at 2.4GHz, delivering high performance and reliability. It features 8GB of LPDDR4X-4267 SDRAM, enabling it to handle diverse applications effectively. Storage options include a 32GB Micro SD card for expansion. The device supports dual video output at 4Kp60 via HDMI ports, making it ideal for multimedia and high-quality content display. Audio capabilities include separate stereo input and output, each accessible through individual 3.5mm jacks.


This computer offers a comprehensive set of interfaces: 1 Gigabit Ethernet port (PoE optional), 2 USB 3.0 ports, 2 USB 2.0 ports, 1 RS232 port, 1 RS485 port, and a built-in buzzer. Power is supplied through a USB Type-C port (5V DC), with an integrated power button for convenience. Additional features include RTC, backup power via a supercapacitor or CR1220 battery, ensuring dependable operation in industrial environments. This versatile solution is perfect for IoT, automation, and data-intensive applications.

Features

  • Processor (CPU): Broadcom BCM2712, 2.4GHz, quad-core 64-bit ARM Cortex-A76
  • VPU: HEVC (H.265) decoder up to 4Kp60
  • GPU: OpenGL ES 3.1 and Vulkan 1.2
  • RAM: 8GB LPDDR4X-4267 SDRAM
  • Expandable storage: Micro SD card slot with a pre-installed 32GB card
  • Operating system: Raspberry Pi OS (Desktop and Lite, 32-bit and 64-bit versions)
  • External connectors:
    • Front panel:
      • Audio IN: 1 x LINE IN (3.5mm red jack)
      • Audio OUT: 1 x Headphone OUT (3.5mm green jack)
      • RS485: 1 x RS485 port with 120Ω isolation, 3-pin Phoenix connector
      • RS232: 1 x RS232 port, 3-pin Phoenix connector
      • USB 2.0: 2 x Type-A ports
      • USB 3.0: 2 x Type-A ports
      • Ethernet: 1 x 10/100/1000M RJ45 port with PoE option
    • Rear panel:
      • Micro SD card slot for OS installation
    • Side panel:
      • HDMI: 2 x Micro HDMI ports supporting 4K 60Hz
      • Power input: USB Type-C port (5V/5A)
  • Power button: ON/OFF switch
  • LED Indicators:
    • PWR: Red (Power)
    • ACT: Green (System Status)
    • COM1~COM2: Green (UART communication status)
  • Internal connectors:
    • 5V 1A output: 1 x DC OUT, 3-pin WTB (power for LCD)
    • M.2 M-Key: Supports SSDs (2230, 2242, 2260)
    • MIPI CSI/DSI: 2 x CSI/DSI ports, 2-lane with backlight control for LCDs
  • Real-time clock (RTC) with SuperCAP and CR1220 battery
  • Buzzer
  • Wireless communication:
    • Dual-band Wi-Fi 802.11ac
    • Bluetooth 5.0 / BLE
  • Operating temperature: -25°C to 60°C
  • Humidity: 5% to 95%
  • Input voltage: 5V DC
  • Maximum power consumption: 25W
  • Dimensions: 102.8 x 89.5 x 32.5 mm
  • Weight: 300g
