Qwiic 9DoF IMU Breakout - module with ISM330DHCX and MMC5983MA sensors
ID: 1181681
5906623418251
zł222.29
Tax included
zł180.72 tax excl.
Module with 9-axis IMU. It combines the ISM330DHCX (accelerometer and gyroscope) and MMC5983MA (magnetometer) systems. Communication via the I2C interface. SparkFun SEN-19895
Description
Module with 9-axis IMU that combines ISM330DHCX (accelerometer and gyroscope) and MMC5983MA (magnetometer). The ISM330DHCX sensor provides high performance with very low power consumption and measures acceleration in the range of ±2/±4/±8/±16g and angular velocity in the range of ± 125/±250/±500/±1000/±2000/±4000dps . It also comes with a set of built-in features including machine learning, programmable FSM, FIFO, sensor hub, event and interrupt decoding. The MMC5983MA sensor can measure magnetic field strength over the full scale range of ±8 Gauss (G), with a resolution of 0.25 mG/0.0625 mG per LSB in 16 bit or 18 bit mode and 0.4 mG RMS total noise level. Communication with the module can be realized via the I2C (Qwiic) interface. A guide with examples is available on the product page.
Features
- ISM330DHCX:
- Accelerometer measuring scale: ±2g/±4g/±8g/±16g
- Gyro measurement scale: ±125/±250/±500/±1000/±2000/±4000 dps
- 16 bit data output
- I2C or SPI interface
- I2C address: 0x6B (default), 0x6A
- Data transmission frequency: from 12.5 Hz to 6.7 kHz for the accelerometer and from 1.6 Hz to 6.7 kHz for the gyroscope
- Working temperature: -40 to + 105°C
- Temperature compensation
- I2C sensor hub function
- Built-in FIFO up to 9 kB
- Machine learning function
- Built-in functions and interruptions: tilt detection, free fall, wake up, 6D / 4D orientation, click and double click
- Built-in pedometer
- MMC5983MA
- Fully integrated 3-axis magnetic sensor
- Dynamic range and accuracy:
- ± 8G FSR
- 18 bit resolution
- 0.4 mG RMS total noise
- Heading accuracy ± 0.5º
- Maximum frequency of measurements 1000 Hz
- Sensitivity Compensation
- Built-in temperature sensor
- I2C address: 0x30
- 2 x Qwiic connector
1181681
Data sheet
- Interface
- I2C
- Type of sensor
- ISM330DHCX
- Module type
- 9DoF
- Power supply voltage
- 3,3 V
- Sensor type
- Akcelerometr, żyroskop i magnetometr
Manufacturer
- BTC Korporacja sp. z o. o.
- Ludwinowo Zegrzyńskie 52G
- 05-140 Ludwinowo Zegrzyńskie
- Poland
- [email protected]
- 22 767 36 20
Responsible person
- BTC Korporacja sp. z o. o.
- Ludwinowo Zegrzyńskie 52G
- 05-140 Ludwinowo Zegrzyńskie
- Poland
- [email protected]
- 22 767 36 20
You might also like
Available
Qwiic to Grove adapter cable, 100 mm long. Enables interoperability between the SparkFun Qwiic Connect system and Seeed Studio I2C-based Grove boards. SparkFun PRT-15109
zł10.34
24h
Available quantity: 13
Available
Flexible 4-core cable, 50 mm long, terminated on both sides with a Qwiic plug. Sparkfun PRT-17260
zł9.14
24h
Available quantity: 25
Available
Other products in the same category (16)
Module with 6-axis IMU sensor that allows you to measure acceleration and rotational speed in the range up to ±16g and ±2000dps. Equipped with a STEMMA QT connector, it communicates via I2C or SPI. Adafruit 4503
zł52.09
24h
Available quantity: 7
Available
Module with 3-axis accelerometer and ISM330DHCX gyroscope. Equipped with a Qwiic connector, it communicates via the I2C or SPI interface. SparkFun SEN-19764
zł133.26
24h
Available quantity: 1
Available
Module with 3-axis accelerometer and ISM330DHCX gyroscope. Equipped with a Qwiic connector, it communicates via the I2C interface. SparkFun SEN-20176
zł202.72
3 weeks
No product available!
A module with an acceleration and rotational speed sensor based on the LSM6DS3TR-C system and the LIS3MDL magnetometer. Equipped with a STEMMA QT connector, it communicates via the I2C or SPI interface. Adafruit 5543
zł108.86
24h
Available quantity: 2
Available
Module with 9-axis IMU. It combines the ISM330DHCX (accelerometer and gyroscope) and MMC5983MA (magnetometer) systems. Communication via the I2C interface. SparkFun SEN-19895
zł222.29
3 weeks
No product available!
Small 10 DoF IMU module with 3-axis gyroscope and accelerometer (LSM6DSO), 3-axis magnetometer (LIS3MDL) and barometer (LPS22DF). It is equipped with an I2C interface, a voltage stabilizer and a voltage level converter. Pololu 2863
zł128.07
24h
Available quantity: 1
Available
Small 9 DoF IMU module with 3-axis gyroscope and accelerometer (LSM6DSO) and 3-axis magnetometer (LIS3MDL). It is equipped with an I2C interface, a voltage stabilizer and a logic level converter. Pololu 2862
zł123.63
24h
Available quantity: 5
Available
Module with 3-axis accelerometer and gyroscope LSM6DSV16X. The chip is a low-power IMU optimized for IoT devices with data processing capabilities using machine learning. Equipped with a Qwiic connector, it communicates via the I2C interface. SparkFun SEN-21325
zł119.57
3 weeks
No product available!
Module with 3-axis accelerometer and gyroscope LSM6DSV16X. The chip is a low-power IMU optimized for IoT devices with data processing capabilities using machine learning. Equipped with a Qwiic connector, it communicates via the I2C interface. SparkFun SEN-21336
zł125.84
24h
Available quantity: 1
Available
BMI270 3-axis accelerometer and gyroscope module. The chip is a low-power IMU optimised for wearables, providing precise acceleration measurement, angular velocity measurement and motion-triggered interrupt functions. Equipped with a Qwiic connector, it communicates via an I2C interface. SparkFun SEN-22397
zł89.54
3 weeks
No product available!
BMI270 3-axis accelerometer and gyroscope module. The chip is a low-power IMU optimised for wearables, providing precise acceleration measurement, angular velocity measurement and motion-triggered interrupt functions. Equipped with a Qwiic connector, it communicates via an I2C interface. SparkFun SEN-22398
zł84.83
24h
Available quantity: 3
Available
Module with a sensor for use in the field of virtual reality (VR). It is based on the BNO086 system, which integrates an accelerometer, gyroscope, magnetometer and a microcontroller with an ARM Cortex M0+ core. SparkFun SEN-22857
zł200.76
3 weeks
No product available!

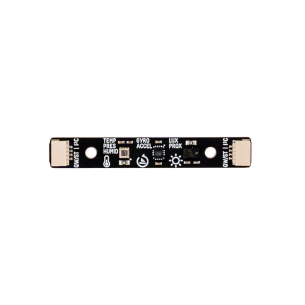

Compact module with three I2C sensors, enabling measurement of temperature, humidity, pressure, light, proximity and motion. It offers two Qw/ST connectors, so you can quickly connect it to Raspberry Pi, Pico or other microcontrollers. Ideal for IoT applications, home automation and environmental analysis in mobile or stationary projects. Pimoroni PIM745
