New products
New products
zł77.58 tax excl.

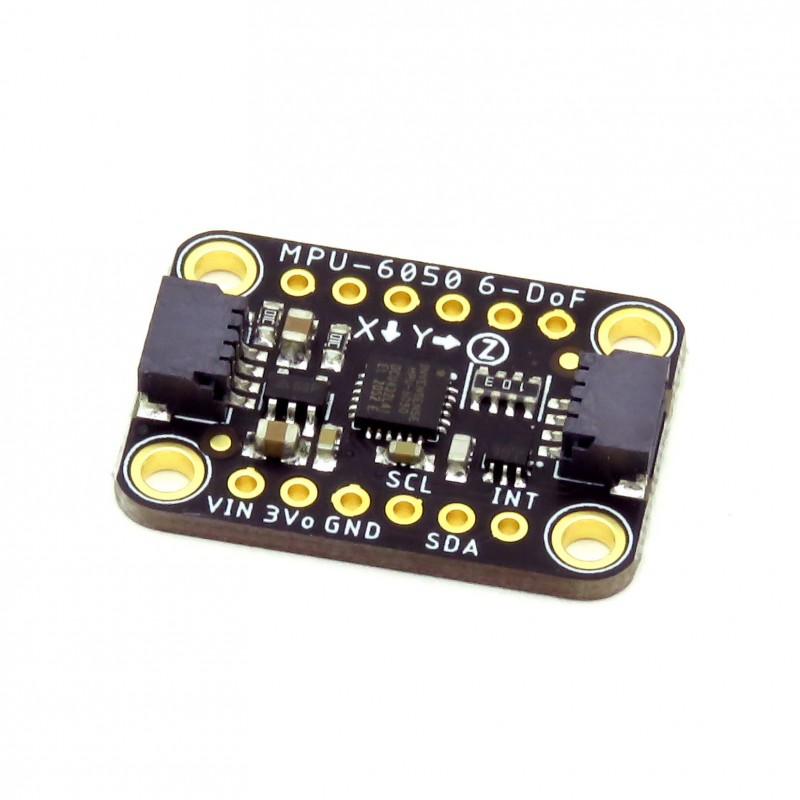

Module with acceleration and rotational speed sensor based on the MPU-6050 system. Equipped with a STEMMA QT connector, it communicates via the I2C interface. Adafruit 3886
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
6 DoF module with a 3-axis accelerometer and a 3-axis gyroscope based on the MPU-6050 system. It allows you to measure the acceleration relative to the Earth and the rotational speed, which allows you to determine the orientation in space. It will work, among others in projects of mobile robots or flying objects (UAV). The module is compatible with 3.3 V and 5 V controllers, and communication is via the I2C interface (STEMMA QT connector). Full documentation is available on the product page.
Features
- Gyroscope:
- Programmable range ± 250, ± 500, ± 1000 and ± 2000 ° / s
- External synchronization signal connected to the FSYNC pin
- Integrated 16-bit ADC converters
- Improved sensitivity temperature bias and stability reduces the need for calibration
- Improved low frequency noise performance
- Digitally programmable low-pass filter
- Gyro working current: 3.6mA
- Standby current: 5µA
- Factory calibrated sensitivity scale factor
- Accelerometer:
- Triaxial accelerometer with digital output with programmable ranges of ± 2g, ± 4g, ± 8g and ± 16g
- Integrated 16-bit ADC converters
- Normal operating current of the accelerometer: 500 µA
- Current in Low Power Mode: 10 µA at 1.25 Hz, 20 µA at 5 Hz, 60 µA at 20 Hz, 110 µA at 40 Hz
- Orientation detection and signaling
- User programmable interrupts
- Interruption of the free fall
- User self-test
- I2C interface
- Supply voltage: 3.3 V to 5 V
- Dimensions: 26 x 17.8 x 4.6 mm
Kit contains
- STEMMA QT AHT20 Temperature & Humidity Sensor
- 6-pin goldpin male connector
Data sheet
- Interface
- I2C
- Type of sensor
- MPU6050
- Module type
- 6DoF
- Power supply voltage
- 3,3 - 5 V
- Sensor type
- Akcelerometr i żyroskop
