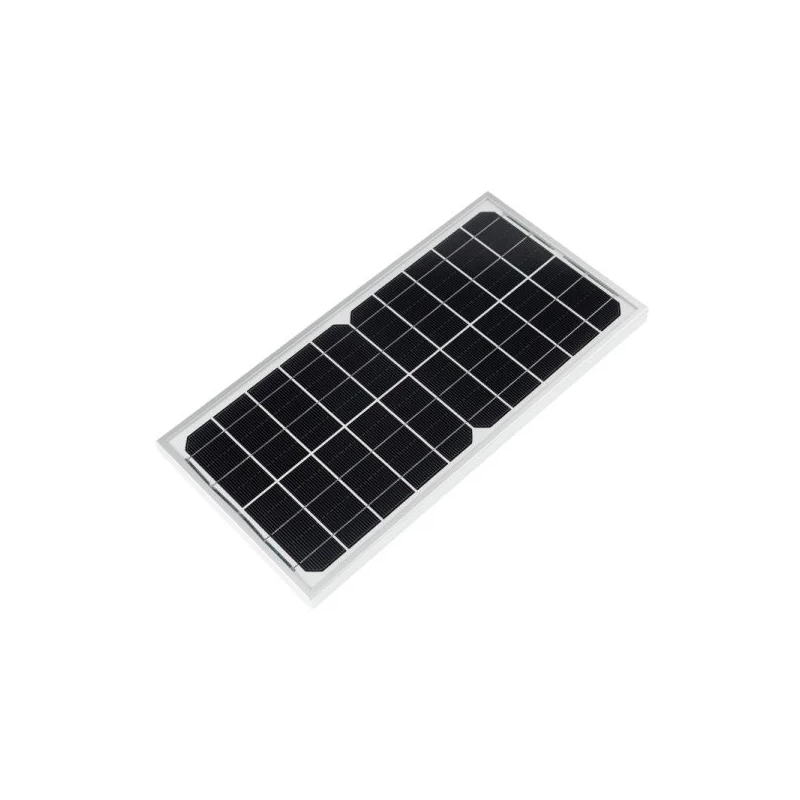

PowerFeather Solar Panel - 12V 10W solar panel for ESP32-S3 PowerFeather
ID: 1201150
5902186331730
zł159.00
Tax included
zł129.27 tax excl.
A 10W solar panel designed to power the ESP32-S3 PowerFeather device. It offers an operating voltage of 12V and a current of 830mA, ensuring efficient charging and safe operation within the permitted voltage range. Constructed with monocrystalline cells, an aluminum frame, and tempered glass, it guarantees high efficiency and weather resistance. With DC5521 connectors and a 30cm cable, it offers a practical solution for IoT projects, weather stations, and mobile power systems.
Description
PowerFeather Solar Panel is a high-efficiency 10 W solar panel designed specifically for powering and charging the ESP32-S3 PowerFeather device. With a working voltage of 12 V and a maximum current of 830 mA, the panel can, under ideal conditions, fully utilize the PowerFeather’s maximum charging current limit of 2 A. Made of monocrystalline solar cells, it provides excellent energy conversion efficiency, making it ideal for use in backup power systems, IoT projects, weather stations, and outdoor installations. The sturdy construction with an aluminum frame and tempered glass ensures durability and resistance to environmental conditions, making it perfect for outdoor use. The open-circuit voltage of 13.9 V remains below the ESP32-S3 PowerFeather’s maximum input voltage limit (18 V), ensuring safe operation.
The panel comes with a 30 cm cable terminated with a DC5521 connector, enabling quick and stable connections. When combined with the PowerFeather ProtoWing, it allows for direct and reliable device powering without the need for additional voltage regulators. Thanks to its compact size and low weight, the panel is lightweight, portable, and easy to mount anywhere. It’s an excellent solution for anyone looking for an eco-friendly power source for electronic projects, outdoor sensors, or power systems in remote locations.
Features
- Cell type: Monocrystalline
- Maximum power: 10 W
- Voltage at maximum power point (Vmp): 12 V
- Open-circuit voltage (Voc): 13.9 V
- Maximum current (Imp): 830 mA
- Short-circuit current (Isc): 890 mA
- Cable length: 30 cm
- Connector: DC5521 (barrel jack)
- Aluminum frame
- Tempered glass
- Compatibility: ESP32-S3 PowerFeather (with PowerFeather ProtoWing)
- Safe operating voltage: below 18 V (maximum allowed for PowerFeather)
- Dimensions: 355 × 180 × 18 mm
- Weight: 0.75 kg
1201150
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
