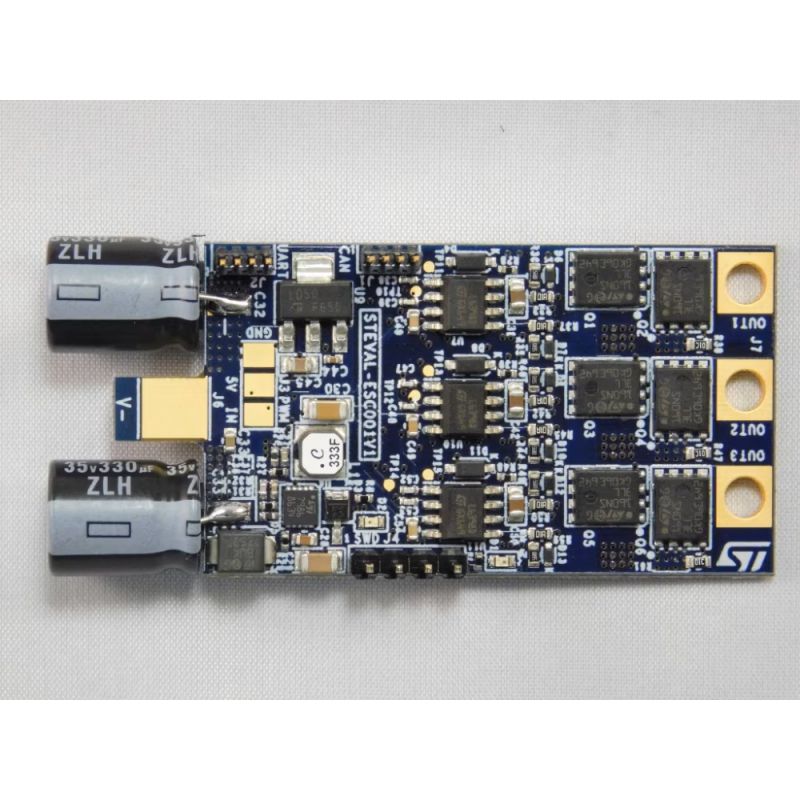

STEVAL-ESC001V1 - ESC speed controller module
ID: 1202261
zł153.06
Tax included
zł124.44 tax excl.
A compact and powerful ESC module for BLDC and PMSM motors, ideal for racing drones and lightweight aircraft. Featuring an STM32F303 microcontroller with sensorless FOC and advanced 3-shunt current measurement, it delivers smooth operation and high efficiency. It supports 3S–6S LiPo power, currents up to 20A RMS, and PWM, UART, CAN, and I²C communication for easy integration with flight controllers. STMicroelectronics STEVAL-ESC001V1
Description
STEVAL-ESC001V1 is an advanced, compact, and fully pre-configured electronic speed controller (ESC) module designed primarily for modern racing drones and lightweight unmanned aerial vehicles. The device enables quick startup and testing of three-phase brushless motors (BLDC or PMSM), powered from 6S LiPo packs or another compatible DC source. Thanks to compatibility with the STM32 Motor Control SDK (X-CUBE-MCSDK), the project allows you to start the motor and rotor within minutes, significantly reducing development time. The integrated STM32F303CBT7 microcontroller with an Arm® Cortex®-M4 core delivers high computational performance and full support for sensorless FOC, ensuring smooth operation and high energy efficiency. The reference design also includes an advanced 3-shunt current-sensing system, accurate BEMF detection, and active braking features that increase control precision and safety.
With support for PWM, UART, CAN, and I²C communication, the module can be easily integrated with most flight controllers used in commercial drones. Its small dimensions allow installation even in very compact builds, where every gram and cubic millimeter matters. The system also provides overcurrent and overvoltage protection, an integrated 5 V / 0.5 A BEC, and an NTC sensor for temperature monitoring. Thanks to the use of STripFET™ F7 MOSFETs with very low Rds(on), the module ensures high current capability and low power losses. It is an ideal solution for drone builders, hobbyists, educators, and designers working with BLDC or PMSM motors who need a stable, efficient, and proven ESC design.
Features
- Compact and lightweight design, ideal for small drones and mobile projects
- Support for sensorless six-step and sensorless FOC algorithms
- Power supply range: 3S–6S Li-Po (11.1–22.2 V)
- Maximum output current: 20 A RMS, 30 A peak
- STM32F303 microcontroller and L6398 driver
- Built-in MOSFET drivers with very low resistance (STripFET™ F7 – 2.8 mΩ)
- Integrated 5 V / 0.5 A BEC for powering receiver or FCU
- BEMF detection using integrated operational amplifiers
- Overcurrent and overvoltage protection (OCP/OVP)
- Support for PWM, UART, CAN, and I²C communication
- Full compatibility with STM32 Motor Control SDK (X-CUBE-MCSDK) and ST Motor Profiler
- Support for active motor braking
- Board dimensions: 29.1 × 58 mm
1202261
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
