- New
zł30.52

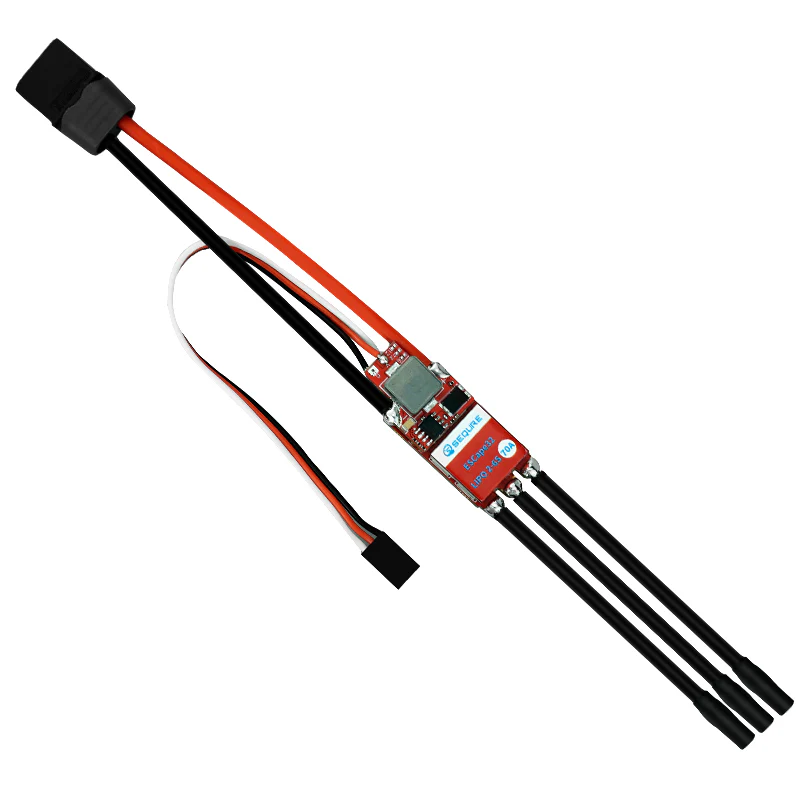

SEQURE SQESC 2670 - ESC controller 2-6S 70A (ESCape32) + BEC
ID: 1205237
zł212.18
Tax included
zł172.50 tax excl.
<p>ESC brushless motor speed controller designed for FPV drones and RC models. Equipped with a 32-bit STM32G071 processor and PWM support up to 128 kHz, it ensures smooth and responsive motor operation. It supports DShot, PWM, Oneshot, and Multishot protocols, offering broad compatibility with flight controllers, as well as a continuous current of 70 A and a maximum current of 110 A. It has a built-in adjustable BEC (5-12 V) SEQURE SQESC 2670 ESCape32 + BEC.</p>
Description
SEQURE SQESC 2670 is an advanced brushless motor ESC designed for a wide range of RC applications, including FPV drones, multirotors, RC airplanes, boats, and off-road vehicles. The device is powered by an efficient 32-bit STM32G071 processor running at up to 64 MHz, ensuring very fast and precise motor control. Support for PWM frequencies up to 128 kHz enables smooth, responsive operation and high drive efficiency. The use of high-current MOSFET transistors and a metal heatsink allows for effective heat dissipation.
SEQURE SQESC 2670 offers broad compatibility thanks to support for DShot (all variants), PWM, Oneshot, and Multishot protocols, enabling cooperation with most flight controllers. Automatic throttle signal detection at startup simplifies configuration and speeds up setup. The built-in protection system, including low voltage, overheating, motor stall, and overcurrent protection, enhances operational safety and protects components. A major advantage is the integrated adjustable BEC, offering output voltages of 5V, 6V, 7.2V, 8.2V, and 12V, allowing direct powering of receivers, servos, and other onboard devices.
Advanced configuration options are available via a visual programming tool, enabling adjustment of parameters such as motor timing, throttle calibration, rotation direction, and response characteristics. Additionally, the device features programmable RGB LED lighting, allowing for visual customization. Thanks to its versatility and high performance, SEQURE SQESC 2670 is an excellent choice for demanding users looking for a reliable ESC for various RC applications.
Features
- Processor: STM32G071
- Input voltage: DC 7V to 25.2V (2 to 6S LiPo)
- Continuous current (with proper cooling): 70A
- Peak current (with proper cooling): 110A
- Supported firmware: ESCape32
- Supported protocols: DShot (All), PWM, Oneshot, Multishot, etc.
- Programmable parameters
- Throttle calibration
- Timing adjustment
- Current sensing
- Telemetry signal
- Motor rotation direction settings
- RGB LED lighting
- BEC: 5V/4A, 6V/4A, 7.2V/4A, 8.2V/4A, 12V/3A (adjustable)
- Dimensions: 190 × 18 × 11 mm
- Weight: 22 g
1205237
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
