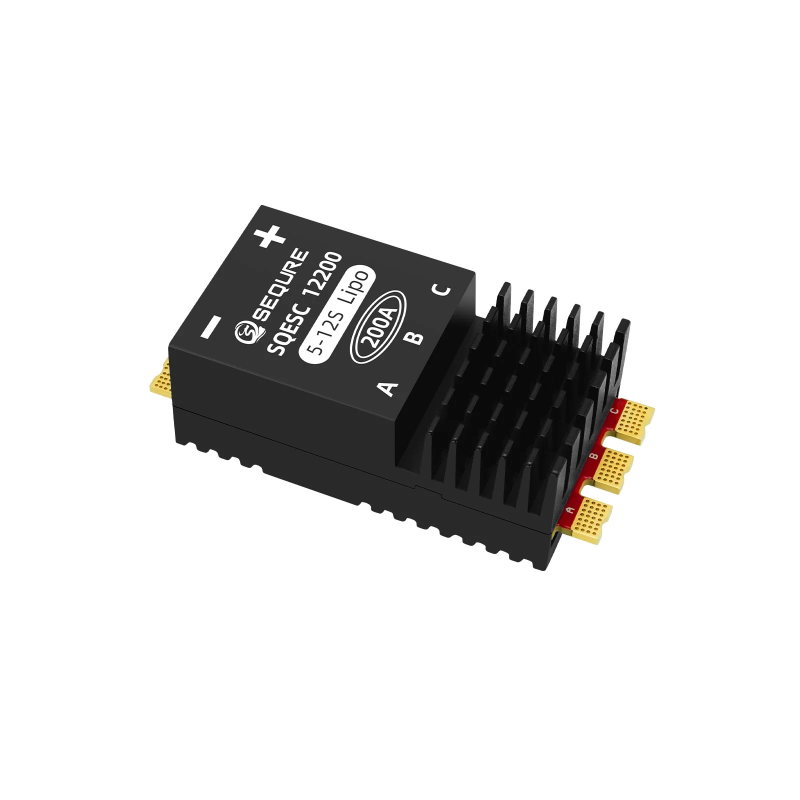

SEQURE SQESC 12200 - ESC controller 5-12S 200A with AM32 software
ID: 1205238
zł457.52
Tax included
zł371.97 tax excl.
This ESC is designed for advanced applications like drones, RC models, and high-powered vehicles, supporting 5- to 12-stage LiPo power supplies. Equipped with a 32-bit STM32G071 microcontroller and PWM support up to 128 kHz, it provides very smooth and precise motor control. It offers continuous current up to 200 A and burst current up to 250 A, and thanks to efficient MOSFETs and a CNC heatsink, it remains stable even under heavy loads.
Description
SEQURE SQESC 12200 is a high-current brushless ESC designed for demanding applications such as multirotor drones, RC airplanes, boats, and high-power vehicles. The device supports voltages from 5 to 12S LiPo, enabling operation in high-power systems. At its core is a 32-bit STM32G071 microcontroller running at up to 64 MHz, ensuring fast and precise motor control. Support for PWM frequencies up to 128 kHz allows for smooth, quiet, and highly responsive operation.
The ESC is equipped with high-performance MOSFET transistors and a robust CNC-machined heatsink, which efficiently dissipates heat even under high current loads. This enables stable operation at a continuous current of up to 200 A and a peak current of up to 250 A. The ESC supports multiple motor operation modes, including forward, bidirectional, and braking, increasing its versatility. Automatic signal detection and support for DShot, PWM, Oneshot, and Multishot protocols ensure compatibility with various control systems.
SEQURE SQESC 12200 also offers a wide range of protection features, such as low voltage, overheating, stalled rotor, and overload protection, enhancing operational safety. Advanced firmware enables configuration of operating parameters, including motor timing, throttle calibration, rotation direction, and telemetry. An additional feature is the built-in RGB LED lighting, which can be customized to user preferences. The absence of an integrated BEC allows greater flexibility in selecting an external power supply. Its robust design and wide range of applications make it an ideal solution for professional and advanced RC projects.
Features
- Microcontroller: STM32G071
- Operating frequency: up to 64 MHz
- Input voltage: DC 18 to 50.4 V (5 to 12S LiPo)
- Continuous current: 200 A (with adequate cooling)
- Peak current: 250 A (with adequate cooling)
- Supported firmware: AM32
- Supported protocols: DShot (All), PWM, Oneshot, Multishot
- PWM support: up to 128 kHz
- Programmable parameters
- Throttle calibration
- Timing adjustment
- Current sensing
- Telemetry
- Motor rotation direction settings
- Operating modes: forward, bidirectional, braking
- Protections: low voltage, overheating, stalled rotor, overload
- Lighting: RGB LED (configurable)
- Dimensions: 84 × 38 × 26.5 mm
- Weight: 125 g
Kit contains
- SEQURE SQESC 12200 ESC
- Signal cable (twisted pair) 300 mm
- 6 × protective tubes (black and red)
