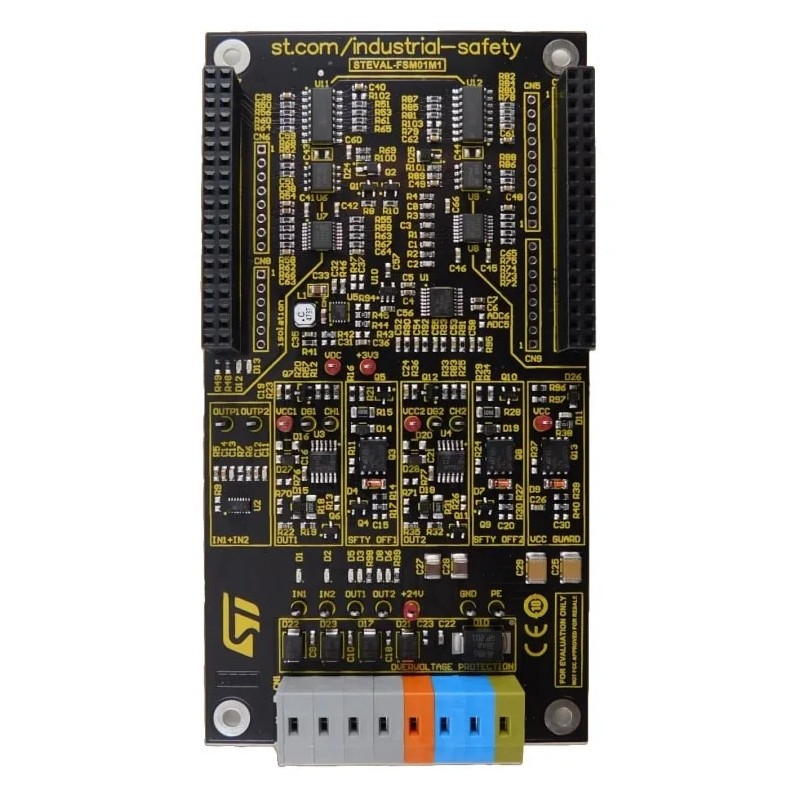

STMicroelectronics STEVAL-FSM01M1 dual-channel digital I/O module designed for the development and testing of industrial digital input and output circuits used in automation and functional safety systems. The board provides two inputs compliant with IEC 61131-2 Type 1 and 3 and two outputs rated at 0.5 A and 2 A. The ST morpho-compatible interface enables operation with STM32 Nucleo boards, while galvanic isolation separates the logic section from the process-side circuitry. STMicroelectronics STEVAL-FSM01M1
STMicroelectronics STEVAL-FSM01M1 dual-channel digital I/O module is designed as an expansion board for the development and evaluation of industrial control systems, including PLCs and functional safety applications. The board translates 3.3 V logic signals from the digital side into 0 / 24 V binary process signals, while maintaining galvanic isolation between the two domains. The board can operate with STM32 Nucleo through ST morpho connectors or as a standalone test board controlled by an external microcontroller or laboratory equipment. The STSW-FSM01 software package is designed for use with NUCLEO-F401RE and can be adapted to other STM32 Nucleo platforms.
The input section uses the CLT03-2Q3 and provides two independent digital inputs compliant with IEC 61131-2 Type 1 and 3. The circuit supports test pulse generation for runtime integrity verification. The output section uses IPS160HF and IPS161HF intelligent high-side switches and P-channel MOSFETs in a redundant configuration. The output channels support nominal loads of 0.5 A and 2 A, while the IPS drivers provide overcurrent and overtemperature protection, diagnostics, and fast demagnetization of inductive loads.
The board operates over a standard 8-30 V range, with optional configuration up to 60 V. Signal isolation is provided by digital isolators including the STISO621 with a data rate of 100 Mbps. The integrated 12-bit ADC120 with a sampling rate of 1 Msps enables real-time monitoring of the supply voltage and key nodes of both output channels via SPI. The design also includes reverse-polarity protection, TVS protection, and 1 kVRMS galvanic isolation. LEDs indicate the status and diagnostics of individual I/O channels, while two additional LEDs are available for user-defined indication.
