X-NUCLEO-IHM08M1

Industrial input/output expansion board based on VNI8200XP and CLT01-38SQ7 for STM32 Nucleo

Multifunctional board for STM32 NUCLEO, built based on operational amplifiers. Has, among others built-in LED current controller, prototype area and window discriminator

Expander (shield) compatible with Arduino and NUCLEO (STM32) systems, equipped with a Bluetooth 4.1 (BLE) radio module from the SPBTLE-RF family

Shield for STM32 series Nucleo, XNucleo and Arduino series for communication via RS485 and CAN interfaces (CAN is only available for Nucleo and XNucleo plates). Shield is based on MAX3485 and SN65HVD230 systems

Two axis stepper motor driver expansion board based on the L6470 for STM32 Nucleo

Sound terminal expansion board based on STA350BW for STM32 Nucleo

DC-DC LED driver expansion board based on LED6001 for STM32 Nucleo

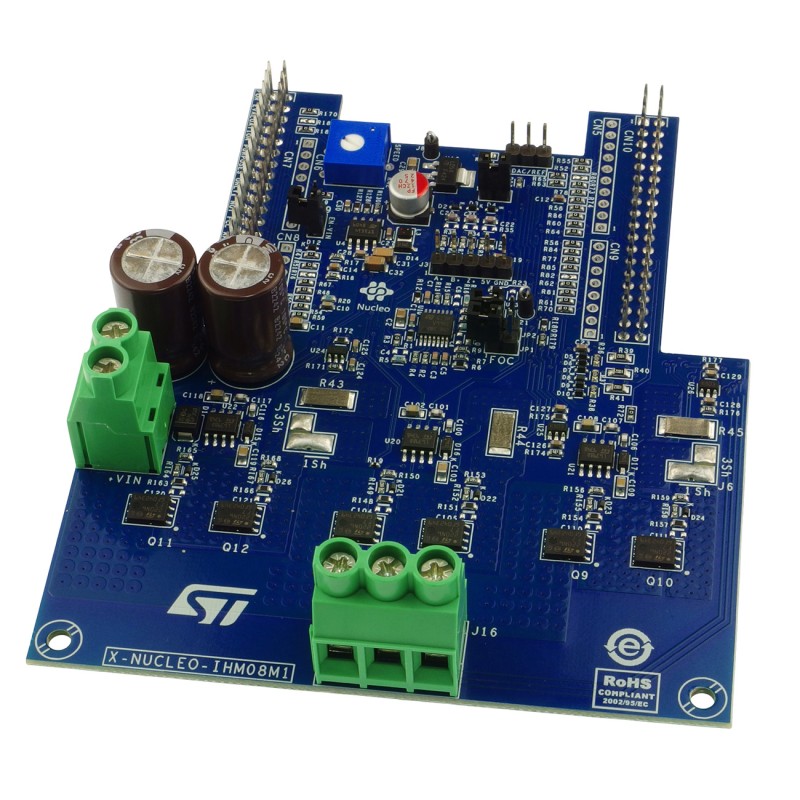

Low-Voltage BLDC motor driver expansion board based on STL220N6F7 for STM32 Nucleo

The X-NUCLEO-NFC02A1 is a dynamic NFC/RFID tag board based on M24LR04E-R, for expansion of STM32 Nucleo boards

The X-NUCLEO-53L0A1 expansion board features the VL53L0X ranging and gesture detection sensor, based on ST’s FlightSense™, Time-of-Flight technology. It is an evaluation board that provides an introduction to the ranging and gesture detection capabilities of the VL53L0X module

Expander (overlay) extending the functionality of the STM32 Nucleo development board. Shield has ST Morpho connectors and is equipped with in a four-segment 7-segment display, four RGB diodes, LIS35DE accelerometer, LPS25HB pressure sensor, and DS18B20 digital thermometer

STM32 Nucleo expansion board designed to provide an application for the 16 channel LED driver LED1642GW. Depending upon the end application, RGB or single color LEDs can be connected to the board. Separate brightness control is possible for each channel. It is compatible with the STM32 Nucleo board family and equipped the Arduino™ UNO R3 connector layout. X-NUCLEO-LED16A1

The X-NUCLEO-IHM11M1 is a low voltage three-phase brushless DC motor driver expansion board based on the STSPIN230 for STM32 Nucleo. It provides an affordable and easy-to-use solution for the implementation of portable motor driving applications such as thermal printers, robotics and toys

The X-NUCLEO-IHM12A1 is a low voltage dual brush DC motor driver expansion board based on the STSPIN240 for STM32 Nucleo. It provides an affordable and easy-to-use solution for the implementation of portable motor driving applications such as thermal printers, robotics and toys

The X-NUCLEO-PLM01A1 expansion board for STM32 Nucleo is based on the ST7580 FSK, PSK multi-mode power line networking system-on-chip. It provides an affordable and easy-to-use solution for the development of connectivity applications based on power line communication

The X-NUCLEO-IHM14A1 motor driver expansion board is based on the STSPIN820 monolithic driver for stepper motors.
