New products
New products
zł340.96 tax excl.
P-NUCLEO-IOD02A1 is an STM32 Nucleo kit consisting of NUCLEO-L452RE (IO-Link stack), X-NUCLEO-IOD02A1 (IO-Link physical layer) and X-NUCLEO-IKS02A1 (sensor module). The kit constitutes a full IO-Link device. P-NUCLEO-IOD02A1
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description

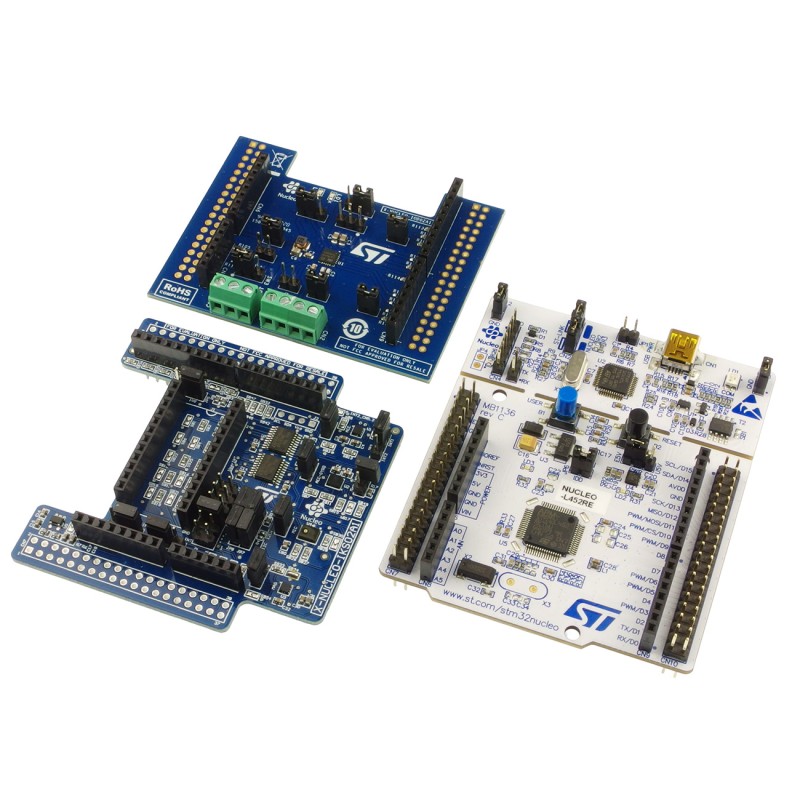

P-NUCLEO-IOD02A1 is an STM32 Nucleo kit consisting of NUCLEO-L452RE, X-NUCLEO-IOD02A1 and X-NUCLEO-IKS02A1. It is designed for use as an IO-Link device. X-NUCLEO-IOD02A1 offers the physical layer of the device, NUCLEO-L452RE the implementation of the IO-Link stack, and X-NUCLEO-IKS02A1 the sensor suite.
IO-Link communication is a solution for I/O modules, which is designed to work with sensors and actuators. It is a new standard that allows every device on the network to be integrated in the same way and throughout the automation area. The STM32 Nucleo package provides an affordable and easy-to-use solution for implementing IO-Link applications.
Features
- X-NUCLEO-IOD02A1
- Based on the L6364Q dual IO-Link transceiver:
- 2-channel (CQ and DIO) IO-Link PHY layer
- IO-Link DLL (M-sequence handler program and checksum)
- Wake-up detection
- Diagnostic pin with interrupt handling
- SPI and UART interfaces
- 50 mA 3.3 V and 5 V linear regulators
- 50 mA inverter (5 to 10.8 V)
- Overload protection with adjustable threshold
- Overheat protection with adjustable shutdown threshold
- Full reverse polarity
- Ground wire and VCC interruption protection
- QFN-20L housing (4 x 4 x 0.9 mm)
- Operating voltage range from 5 to 35 V
- Red and green LED for diagnostics
- Radiated emissions (EM fields 30 MHz-1 GHz) <40 dB µV/m
- Immunity to conducted interference (150 kHz-80 MHz) ≤ 10 V
- Immunity to RF EM fields (80 MHz-1 GHz) ≤ 10 V/m
- Immunity to RF EM fields (1 GHz-2.7 GHz) ≤ 3 V/m
- SURGE pulse immunity (500 Ohm coupling) ≤ ± 1.2 kV
- ESD/air contact immunity ≤ ± 3 kV
- BURST noise immunity ≤ ± 1 kV
- Compatible with STM32 Nucleo development boards
- Equipped with Arduino UNO R3 connectors
- X-NUCLEO-IKS01A2
- 3-axis accelerometer (±2/±4/±8/±16) and gyroscope (±125/±250/±500/±1000/±2000 dps) (ISM330DHCX chip)
- 3-axis magnetometer (±50 gauss) (IIS2MDC chip)
- 3-axis low-power accelerometer (±2/±4/±8/±16 g) (IIS2DLPC chip)
- Digital microphone (-26 dBFS, ±3 dB) (IMP34DT05 chip)
- DIL24 connector for additional sensors
- Free libraries compatible with STM32Cube
- RoHS and WEEE compliance
- NUCLEO-L452RE
- STM32L452RET6 microcontroller in an LQFP64 package.
- Two types of connectors:
- ST Zio connectors supporting Arduino Uno V3 standard.
- ST morpho pin header connectors with full access to GPIO pins of the microcontroller
- Board supported by ARM mbed programming system
- Built-in ST-LINK/V2-1 programmer and debugger with SWD connector for programming external circuits
- Built-in jumpers to disconnect the programmer from the microcontroller on the PCB
- Programmer mode as virtual COM port, storage, program debugging port
- Flexible board power supply
- 5 V power supply from ST-LINK/V2-1 USB VBUS
- External power supply of 3.3 V, 5 V or 7 - 12 V from ST Zio or ST morpho connectors
- One LED available to the user
- Two buttons: user, RESET
- Additional clock source in the form of LSE (Low Speed Clock), 32.768 KHz
- Full compatibility with comprehensive HAL libraries containing many examples of the use of microcontroller peripherals and STMicroelectronics chips
- Supported wide range of development software such as IAR, Keil, GCC-based IDEa, ARM mbed
Kit contains
- NUCLEO-L452RE
- X-NUCLEO-IOD02A1
- X-NUCLEO-IKS02A1
