ID: 1202238
zł175.80
Tax included

zł142.93 tax excl.

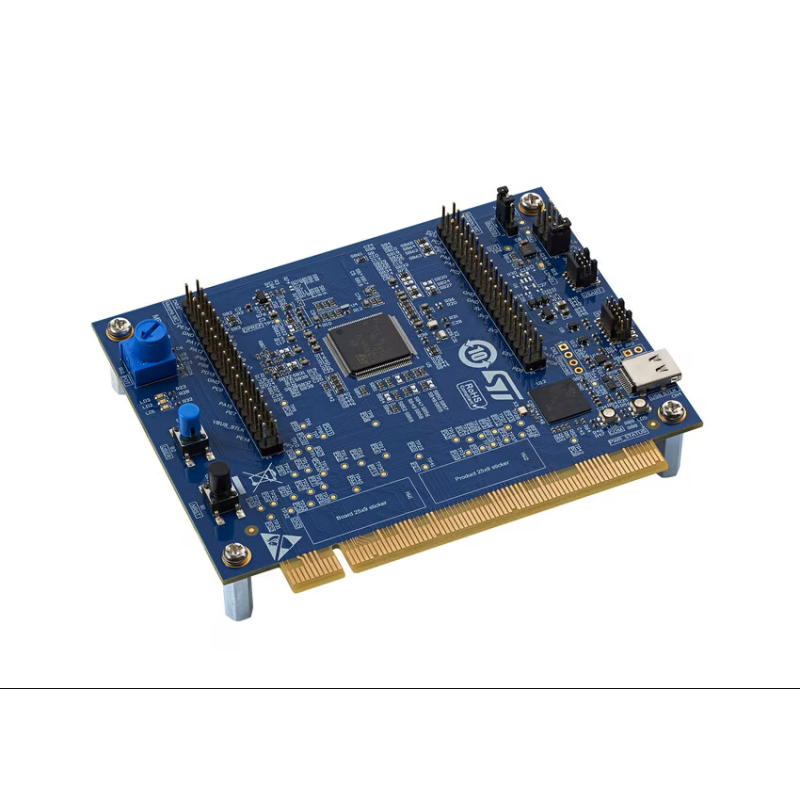

A development platform based on the STM32G473QET6 microcontroller with a Cortex-M4 core, designed for designing motor control systems. The kit enables the implementation of modern control algorithms and interoperability with STM32 power modules and extensions. The built-in STLINK-V3EC programmer allows for convenient programming and debugging without additional hardware. A rich set of interfaces, user components, and support for popular IDE environments facilitate rapid prototyping and application development. STMicroelectronics B-G473E-ZEST1S

24h
Available
Available quantity: 2

Description

B-G473E-ZEST1S is an advanced development platform designed for designing and testing motor control systems. The kit is based on the powerful STM32G473QET6 microcontroller with an Arm Cortex-M4 core, which provides high computational performance and precise control for applications requiring advanced algorithms. The board is part of the STM32 motor control ecosystem and works with dedicated power modules such as STEVAL-LVLP01, as well as additional adapters and accessories.

The kit enables implementation of modern control methods such as ZeST and HSO algorithms, making it an ideal tool for engineers and embedded system developers. Thanks to the integrated STLINK-V3EC programmer/debugger, users can conveniently program and analyze applications without the need for additional hardware. The presence of multiple communication interfaces and expansion connectors allows easy connection of additional modules and components.

The board includes components that facilitate testing and prototyping, such as LEDs, user buttons, and a potentiometer, enabling quick development of interactive applications. The kit supports a wide range of development environments, including STM32CubeIDE, IAR Embedded Workbench, and MDK-ARM, providing flexibility in software development. Additionally, extensive libraries and examples are available within the STM32CubeG4 package, helping to accelerate project startup.

Features

  • Microcontroller: STM32G473QET6 based on Arm Cortex-M4 core
  • Flash memory: 512 KB
  • SRAM: 128 KB
  • Package: LQFP128
  • Integrated debugger/programmer: STLINK-V3EC
  • Support for two Virtual COM ports
  • USB Virtual COM bridge
  • Three user LEDs
  • Buttons: user/tamper and reset
  • Potentiometer for ADC input
  • Connectors: MC connector V2, Morpho MC, STDC14, USART debug
  • Expansion support: X-NUCLEO-IHM08M1, X-NUCLEO-IHM09M1, X-NUCLEO-IHM16M1
  • Compatible with STEVAL-LVLP01 power board and B-ZEST-ADAPT1 adapter
  • Power supply: 5V from power board, ST-LINK USB VBUS, or external 5V via Morpho MC
  • Support for ZeST and HSO motor control algorithms (for selected users)
  • Access to libraries and examples in the STM32CubeG4 package
  • IDE support: IAR Embedded Workbench, MDK-ARM, STM32CubeIDE
  • Integration with X-CUBE-MCSDK tool for motor control project configuration
