7″ DSI capacitive touch display 1280×720 for Raspberry Pi - Waveshare 30646
ID: 1197723
zł263.37
Tax included
zł214.12 tax excl.
7-inch Waveshare DSI display 30646 with an IPS panel and 10-point capacitive touch panel is well-suited for projects requiring vivid image quality and precise touch interaction. Optimal for use with Raspberry Pi, ESP32-P4, and boards based on RK3506 and RK3576 chips. Thanks to its slim design and integrated electronics, it is ideal for integration into portable devices and embedded systems.
Description

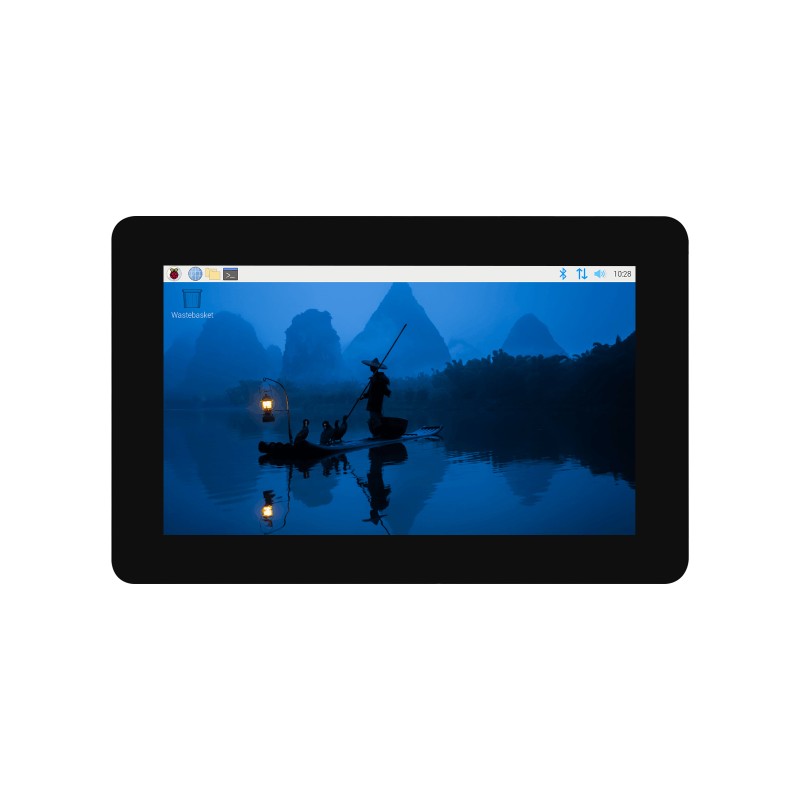

7-inch DSI touch display with a resolution of 1280×720 pixels featuring an IPS panel and a capacitive touch panel with optical bonding allows image display in horizontal orientation. The wide 170° viewing angle ensures high image quality regardless of the viewing angle. The touch surface is made of tempered glass with up to 6H hardness and is coated with an anti-fingerprint (AF) layer, making it easier to keep clean.
The display supports up to 10 touch points (depending on the operating system) and allows software-based backlight adjustment. With the controller integrated into the FPC cable, the total module thickness is only 9.3 mm, facilitating installation in compact designs.
Compatibility includes Raspberry Pi (OS), ESP32-P4 (LVGL), RK3506 (Buildroot/Ubuntu), and RK3576 (Buildroot/Debian/Ubuntu/Android). Powered via 5V GPIO.
Features
- Size: 7 inches
- Resolution: 1280×720 pixels
- Display interface: DSI
- Panel: IPS
- Viewing angle: 170°
- Touch type: capacitive
- Touch points: 10
- Touch glass: tempered, hardness up to 6H
- Touch panel technology: optical bonding
- Coating: AF (anti-fingerprint)
- Touch interface: I2C
- Brightness: 450 cd/m²
- Casing: metal back panel
- Total thickness: 9.3 mm
- Backlight adjustment: via software
Included
- 7inch DSI LCD (H) display x1
- MIPI-DSI cable 12 cm x1
- MX 1.25 2PIN to 2.54 3PIN cable x1
- FFC cable 22PIN ~200 mm (alternating ends) x2
- Screw set x1
1197723
Data sheet
- Screen type
- IPS
- Diagonal (inch)
- 7
- Resolution
- 1280 x 720 px
- Interface
- DSI
- Touch
- Yes
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
