1.83" IPS Touch LCD Display 240x284 SPI/I2C - Waveshare 33985
ID: 1204588
zł65.18
Tax included
zł52.99 tax excl.
1.83" IPS LCD display module with 240 x 284 px resolution, capacitive touch panel, SPI and I2C interfaces, designed for microcontrollers and SBC. Waveshare 1.83inch Touch LCD Module
Description
LCD display module with a 1.83" diagonal, featuring an IPS panel with a resolution of 240 x 284 pixels and a capacitive touch panel. The ST7789P driver handles image display via the SPI interface, while the CST816D controller manages touch input using the I2C bus. The design reduces the number of required signal lines while maintaining full functionality.
The IPS panel provides wide viewing angles and good color reproduction (262K), enabling use in user interfaces, portable devices and embedded projects. The onboard voltage level translator allows operation with both 3.3 V and 5 V systems.
The module is suitable for projects based on microcontrollers and single-board computers such as Raspberry Pi, Arduino, STM32 and ESP32. Available example resources simplify implementation of graphics display and touch control in interface and control applications.

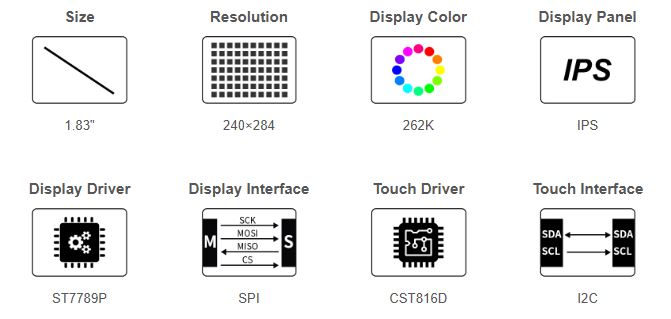

Features
- Display driver: ST7789P
- Touch controller: CST816D
- Resolution: 240 x 284
- Diagonal size: 1.83"
- Panel type: IPS
- Colors: 262K
- Display interface: SPI (4-wire)
- Touch interface: I2C
- Touch type: capacitive
- Supply voltage: 3.3 V / 5 V
- Onboard voltage level translator
- Active area size: 29.52 x 34.93 mm
- Pixel size: 0.126 x 0.126 mm
- Module dimensions: 35 x 42 mm
- Weight: 0.02 kg
Kit includes
- 1.83inch Touch LCD module x1
- GH1.25 12PIN cable x1
- FFC 18PIN 0.5 mm 200 mm cable x1
