ID: 1208253
zł11.89
Tax included

zł9.67 tax excl.

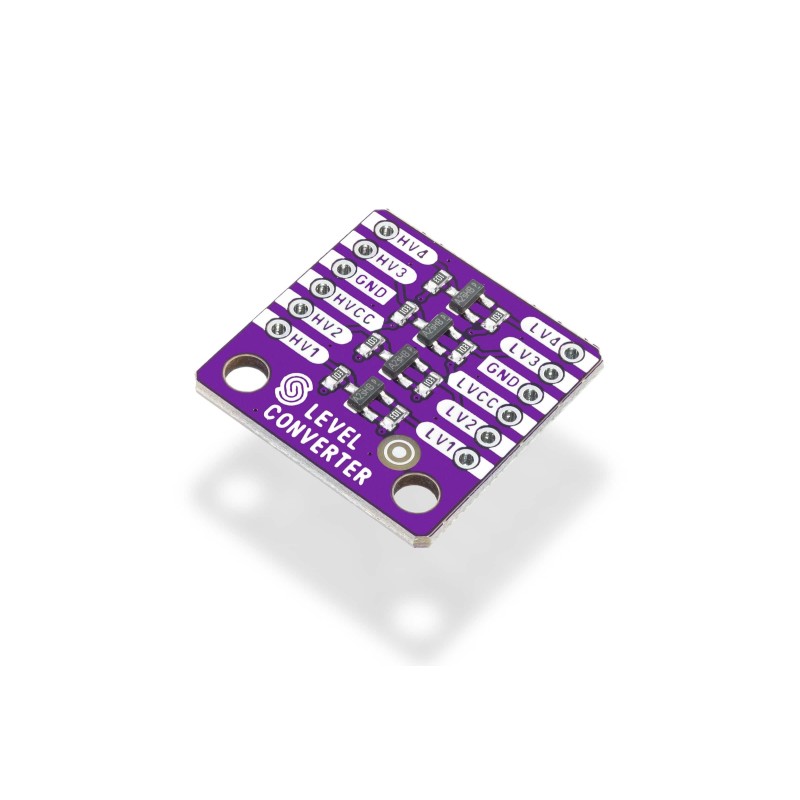

Module for logic level conversion between circuits operating at different voltages, e.g. 5 V and 3.3 V. It provides 4 signal channels and allows devices with incompatible logic voltage levels to be connected. The board measures 22 x 22 mm. Soldered 333029

24h
Available
Available quantity: 1

Description

The logic level converter allows signal voltages to be matched between two digital circuits operating at different voltage levels. A typical application is connecting a device using 5 V logic to a microcontroller operating with 3.3 V logic. Level conversion helps reduce the risk of applying excessive voltage to the input of a circuit designed for a lower logic level. Four channels are available, allowing several signal lines to be handled simultaneously.

The board measures 22 x 22 mm and features pins with a 2.54 mm pitch, making it suitable for breadboard mounting and electronic circuit prototyping. The mounting holes are compatible with LEGO spacing. According to the manufacturer's specifications, the maximum voltage is 30 V, and the hardware design is available as open-source.

Features

  • Type: logic level converter
  • Number of channels: 4
  • Application: logic signal voltage level conversion
  • Supports circuits using 3.3 V and 5 V logic
  • Maximum voltage according to manufacturer specifications: 30 V
  • Pin pitch: 2.54 mm
  • Breadboard-compatible design
  • LEGO-compatible mounting holes
  • Dimensions: 22 x 22 mm
  • Open-source design
  • Manufactured in Croatia, EU

Kit includes

  • Soldered Logic Level Converter Board - 1 pc.
  • Pin header - 1 pc.
1208253

Data sheet

Number of channels
4
Voltage on page A
3,3 V
Voltage on side B
5 V
