KAmodTXS0108 - 8-channel bi-directional logic level converter
search
  • KAmodTXS0108 - 8-channel bi-directional logic level converter
ID: 581753
5906623433339
zł19.89
Tax included

zł16.17 tax excl.

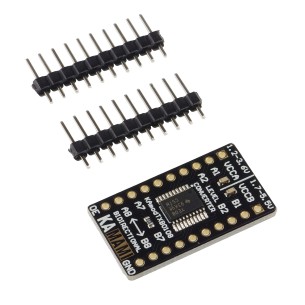

Bi-directional 8-channel logic level converter module (1.2-3.6V to 1.7-5.5V) based on TXS0108 chip.

24h
Available
Available quantity: 147


Free shipping

free shipping in Poland for all orders over 500 PLN



Same day shipping

If your payment will be credited to our account by 11:00



14 days for return

Each consumer can return the purchased goods within 14 days

Description

When using systems that use two different voltages, for example Arduino and a 3.3V powered module, we encounter the problem of voltage difference between logic states. The KAmodTXS0108 module solves this problem, it is a bi-directional converter of logic signals. It can convert 1.2-3.6V voltage to 1.7-5.5V logic state, automatically detecting the transmission direction.

Properties

  • IC: TXS0108EPW
  • Power supply: VCCA from 1.2 V to +3.6 V, VCCB from 1.7 V to +5.5 V, VCCA < VCCB
  • Dimensions: 16 x 29 mm

Included

  • Assembled KAmodTXS0108
  • A set of connectors for self-assembly ( 10-pin 2 szt. )
581753

Data sheet

Number of channels
8
Voltage on page A
1,2 - 3,6 V
Voltage on side B
1,7 - 5,5 V
