zł16.17 tax excl.

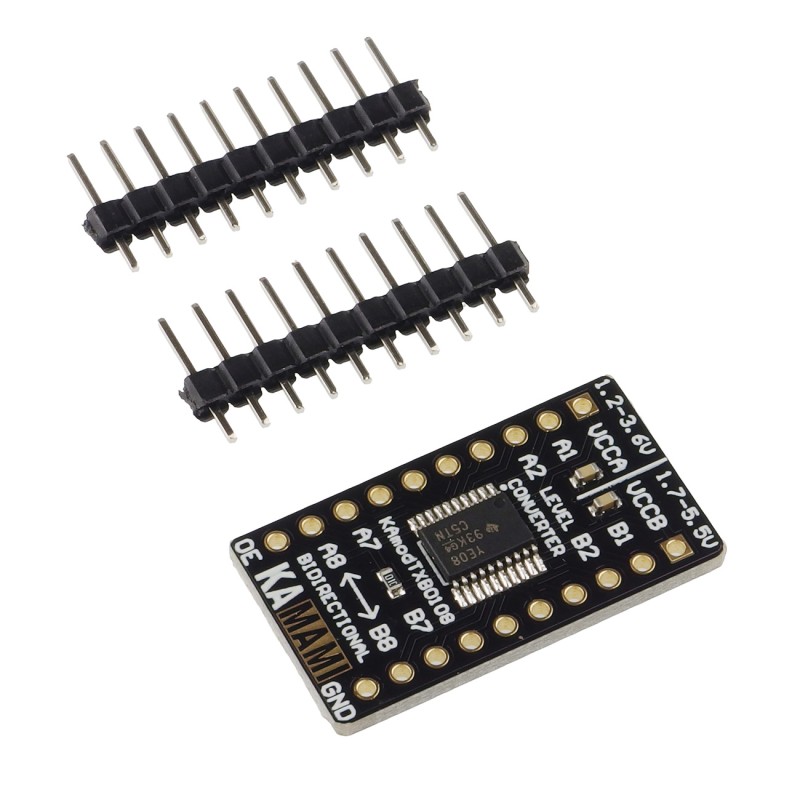

Bi-directional 8-channel logic level converter module (1.2-3.6V to 1.7-5.5V) based on TXB0108 chip.
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
When using systems that use two different voltages, for example Arduino and a 3.3V powered module, we encounter the problem of voltage difference between logic states. The KAmodTXB0108 module solves this problem, it is a bi-directional converter of logic signals. It can convert 1.2-3.6V voltage to 1.7-5.5V logic state, automatically detecting the transmission direction.
Attention!
The TXB0108 device is designed for applications with push-pull outputs (eg SPI, SD card). Our other KAmodTXS0108 module is better suited for cooperation with open-collector outputs, e.g. for I2C communication.
Properties
- IC: TXB0108PWR
- Power supply: VCCA from 1.2 V to +3.6 V, VCCB from 1.7 V to +5.5 V, VCCA < VCCB
- Dimensions: 16 x 29 mm
Included
- Assembled KAmodTXB0108
- A set of connectors for self-assembly ( 10-pin 2 szt. )
