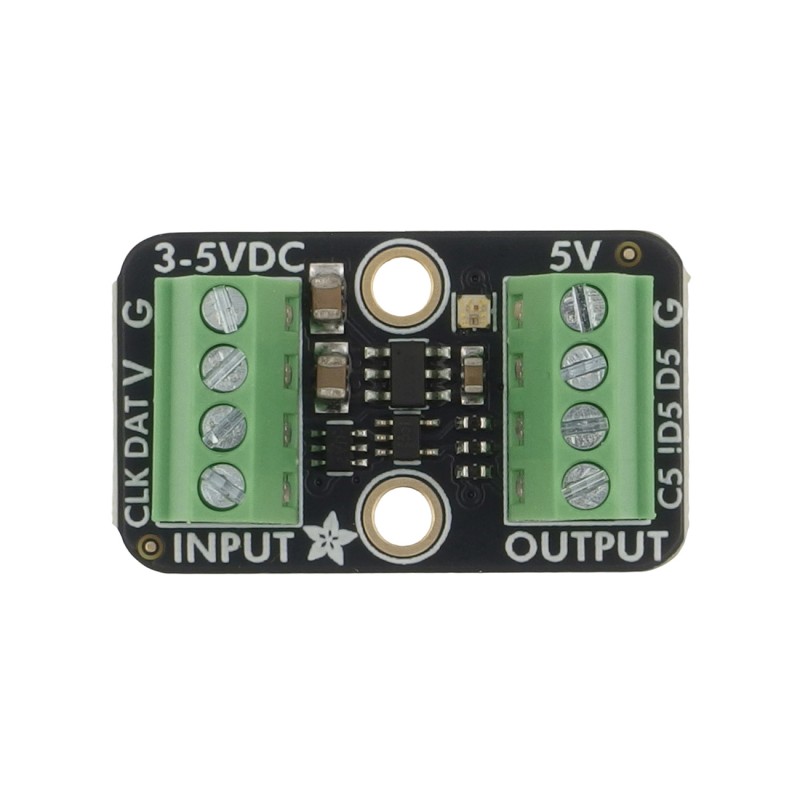

Pixel Shifter - voltage level converter module for NeoPixel
ID: 1195184
5906623498802
zł22.60
Tax included
zł18.37 tax excl.
A small module with a voltage level converter that allows easy conversion of signals from 3.3V to 5V. It is compatible with a wide range of LED strips, such as NeoPixel. With easy, solderless installation, it supports up to two signal lines, ensuring smooth operation of LEDs at frequencies up to 10 MHz. Adafruit 6066
Description
The Adafruit Pixel Shifter is a simple and cost-effective solution designed to make working with NeoPixels and other addressable LED strips easier. NeoPixel-compatible LEDs require precise voltage levels to function correctly, and many 3.3V logic devices, such as the RP2040, ESP32/ESP8266, STM32, SAMD, Raspberry Pi, and others, may encounter issues with this. The Pixel Shifter solves this problem by easily shifting the signal from 3.3V to the required 5V logic level, ensuring smooth operation of your LED setups without the need for complex circuitry or breadboards.
This compact device contains a small 5V voltage generator, two signal converters, and an inverter, ensuring compatibility with a wide range of LED strips. It is designed to be easily connected without soldering; simply provide 3-5V power (a few milliamps), and the device automatically converts the signals to the appropriate voltage levels, making it an ideal solution for your LED projects.
The Adafruit Pixel Shifter supports up to two signal lines and has an inverted signal output, ensuring compatibility with different types of LEDs. It supports signal frequencies up to 10 MHz, fully compatible with the 800KHz signal frequency required by most NeoPixels and similar LED strips. Additionally, the device is equipped with 2.54 mm terminal block connectors, making wiring easier and supporting wire thickness from 18AWG to 26AWG.
Features
- Converts 3.3V signal to 5V, allowing proper operation of NeoPixel LEDs and others
- Supports up to two signal lines and has an inverted signal output
- Built-in 5V voltage generator, two signal converters, and an inverter
- Power supply: 3 to 5V (a few milliamps)
- Supports signal frequencies up to 10 MHz (including 800KHz for NeoPixel)
- 2.54 mm terminal block connectors for easy wiring (supports 18AWG-26AWG wires)
- No soldering required - quick connection without the need for a breadboard
1195184
Data sheet
- Number of channels
- 2
- Voltage on page A
- 3,3 V
- Voltage on side B
- 5 V
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
