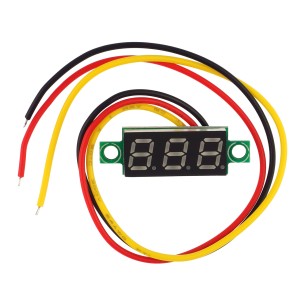

Digital panel voltmeter 0.28 "0-100V blue
ID: 588760
5906623475865
zł5.88
Tax included
zł4.78 tax excl.
Digital LED voltmeter 0,28 "with measuring range 0-100 V. Module powered with 3-30V voltage.
Description
Digital LED voltmeter with a measuring range of 0-100 V. The panel consists of three digits with a height of 0.28 ". The module is supplied with a voltage of 3-30 V. It has holes for easy installation in the target device.
Description of exits:
- Red - VCC
- Black - GND
- White - measuring input
properties
- Measurement range: 0-100 V
- Display: three digital LEDs 0.28 "
- Display color: blue
- Refresh time: about 200 ms
- Measurement accuracy: 1%
- Power supply: 3-30 V
- Power consumption: 5-15 mA
- Working temperature: -10 ~ 65 ℃
- Dimensions: 23 x 10 mm
588760
