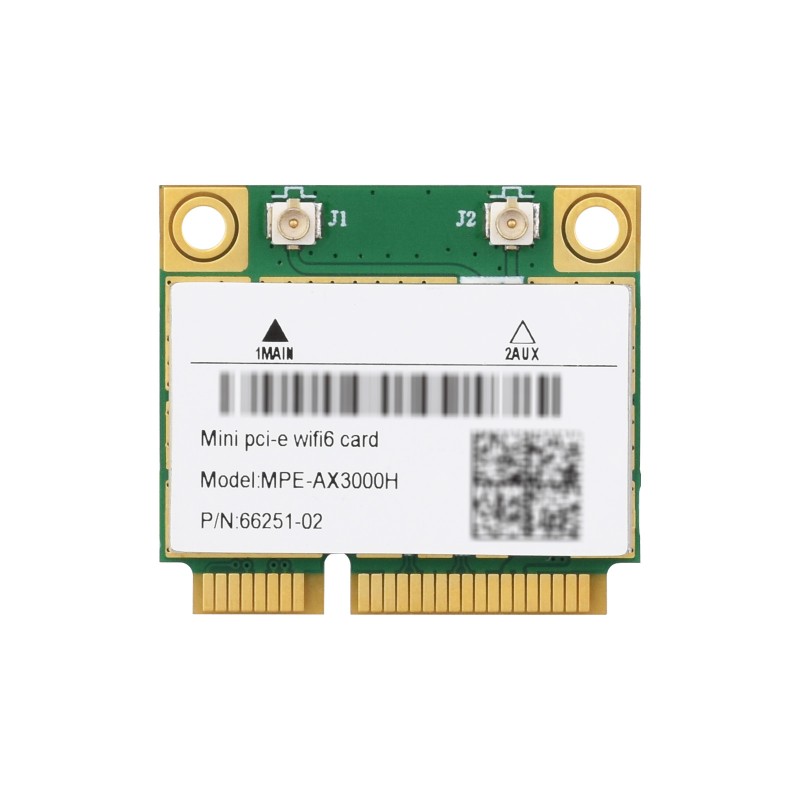

Top view
search
  • Top view
  • Bottom view
  • Angled view - front
  • Module with mounting bracket
  • Module with connected antennas
ID: 1203976
zł89.32
Tax included

zł72.62 tax excl.

MiniPCIe wireless network card module based on the Intel AX200 chip supporting the Wi-Fi 6 (802.11ax) standard and Bluetooth 5.2. Enables communication in the 2.4 GHz and 5 GHz bands with maximum throughput up to 574 Mb/s (2.4 GHz) and 2400 Mb/s (5 GHz), using MU-MIMO technology to improve transmission efficiency. The design features IPEX-4 antenna connectors and is compatible with Linux and Windows 10 / 11 systems. Waveshare Wireless-MINIPCIE-AX200

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Waveshare Wireless-MINIPCIE-AX200 is a MiniPCIe network card equipped with the Intel AX200 chip supporting the Wi-Fi 6 (802.11ax) standard and Bluetooth 5.2. The module enables wireless communication in the 2.4 GHz and 5 GHz bands, providing high data throughput and stable network connectivity in industrial computers, embedded systems, and IoT devices equipped with a MiniPCIe slot.

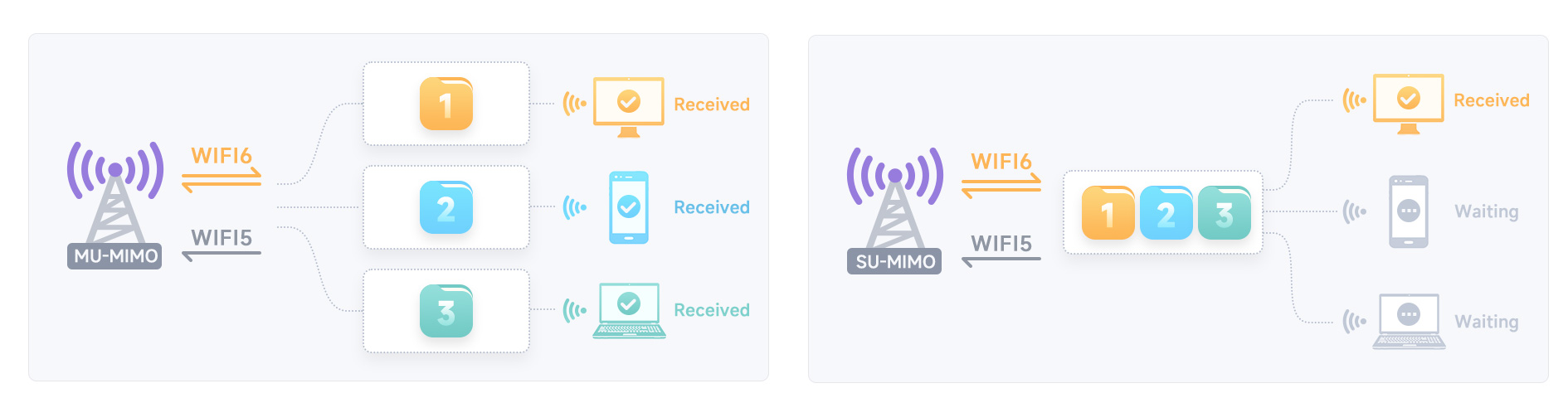

The Wi-Fi 6 interface offers data rates up to 574 Mb/s in the 2.4 GHz band and up to 2400 Mb/s in the 5 GHz band. The use of MU-MIMO technology allows simultaneous communication with multiple devices, improving connection quality and transmission efficiency in environments with high network load.


The module also integrates a Bluetooth 5.2 interface enabling wireless communication with peripheral devices such as keyboards, controllers, or smartphones. The card uses IPEX-4 antenna connectors for connecting external antennas, while compatibility with Linux and Windows 10 / 11 allows deployment across many hardware platforms.

Features

  • Network card type: MiniPCIe Wi-Fi 6
  • Chipset: Intel AX200
  • Wi-Fi standard: Wi-Fi 6 (802.11ax)
  • Supported bands: 2.4 GHz and 5 GHz
  • Speed up to 574 Mb/s in the 2.4 GHz band
  • Speed up to 2400 Mb/s in the 5 GHz band
  • Bluetooth: 5.2
  • MU-MIMO technology

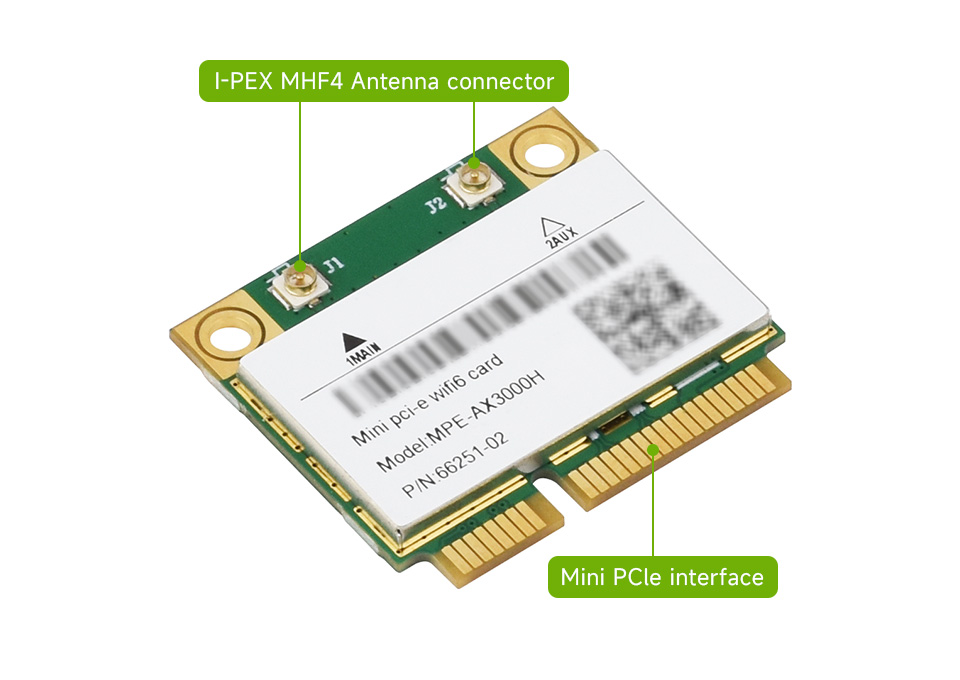

  • Antenna connectors: IPEX-4
  • Interface: MiniPCIe
  • Supported systems: Linux, Windows 10, Windows 11
  • Dimensions: 29.9 x 26.8 x 3.24 mm

Kit includes

  • 1 x Wireless-MINIPCIE-AX200 card
  • 2 x IPEX-1 to SMA antenna cable
  • 2 x 6 dBi antenna
  • 1 x screwdriver
  • 1 x MiniPCIe mounting bracket
  • 1 x screw set
1203976

Data sheet

Logic voltage
3,3 V
Wi-Fi chip
AX200
Wi-Fi standard
802.11 a/b/g/n/ac/ax
Frequency range
2,4 GHz/5 GHz
Baud rate
2400 Mbps
Antenna connector
I-PEX
Power supply voltage
3,3 V
