ID: 1198711
zł62.45
Tax included

zł50.77 tax excl.

Compact and energy-efficient solution combining Bluetooth 5.0 and LoRa (862–930 MHz), ideal for IoT projects requiring long range and low power consumption. It uses the XIAO nRF52840 MCU with Cortex-M4 core and support for multiple interfaces and the LoRa SX1262 module for reliable wireless communication. The kit is perfect for applications such as Meshtastic, asset tracking, sensor networks or educational projects. Seeed Studio 102010710

4 weeks
Awaiting delivery
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

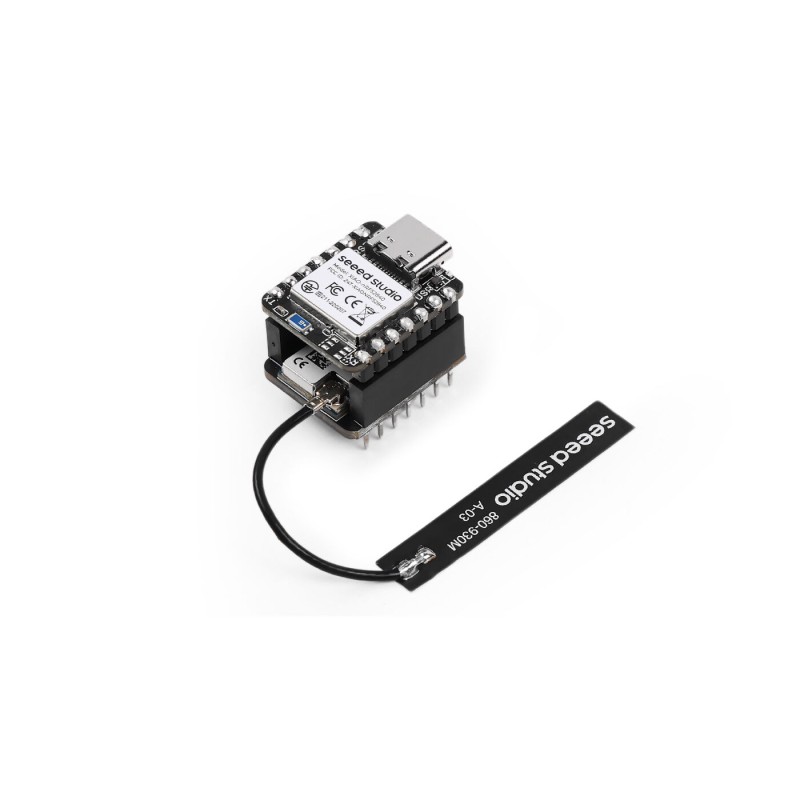

The XIAO nRF52840 + Wio-SX1262 kit is a compact and energy-efficient solution enabling wireless communication via Bluetooth 5.0 and LoRa (862–930 MHz). Featuring the Nordic nRF52840 microcontroller and the SX1262 LoRa module, this kit is ideal for projects such as Meshtastic, environmental monitoring, sensor networks, asset tracking, education, and prototyping.


The XIAO nRF52840 module is a highly versatile microcontroller with an ARM Cortex-M4 core and support for multiple interfaces (UART, I2C, SPI, ADC, GPIO, SWD, NFC). It is compatible with Arduino, CircuitPython, and MicroPython. The kit enables dual-mode communication (BLE + LoRa), allowing flexible data exchange between different devices and environments. Its compact size and built-in antenna make it perfect for mobile and miniaturized IoT projects. When combined with the Wio-SX1262 extension board for long-range LoRa communication, users can easily build independent communication systems with minimal power consumption.


Features

  • Microcontroller: Nordic nRF52840, ARM Cortex-M4 with FPU, up to 64 MHz
  • Wireless connectivity: Bluetooth 5.0, NFC, and LoRa (SX1262)
  • Multiple development environments supported: Arduino, CircuitPython, MicroPython
  • Low power consumption: standby mode below 5μA
  • Charging: USB-C connector, battery charging current 50/100 mA
  • Integrated antenna
  • LoRa module: Semtech SX1262 (862–930 MHz)
  • XIAO nRF52840 interfaces: UART x1, I2C x1, SPI x1 (for LoRa), NFC x1, SWD x1, GPIO x11 (PWM), ADC x6
  • Wio-SX1262 interfaces: SPI (to XIAO), user button x1
  • Power supply: USB-C (5V), BAT connector (4.2V)
  • Operating temperature: -40°C to 65°C
  • Standby current: <5μA
  • Dimensions: 21 x 17.8 mm

Kit contents

  • XIAO nRF52840 – 1 pc
  • Wio-SX1262 expansion board – 1 pc
  • LoRa antenna – 1 pc
1198711

Data sheet

Microcontroller
nRF52840
Flash memory
1 MB
Number of I/O
11
Ethernet
none
WiFi/BT module
No
Bluetooth module
Yes
MicroSD slot
No
Length
21 mm
Width
18 mm
USB connector type
USB type C
