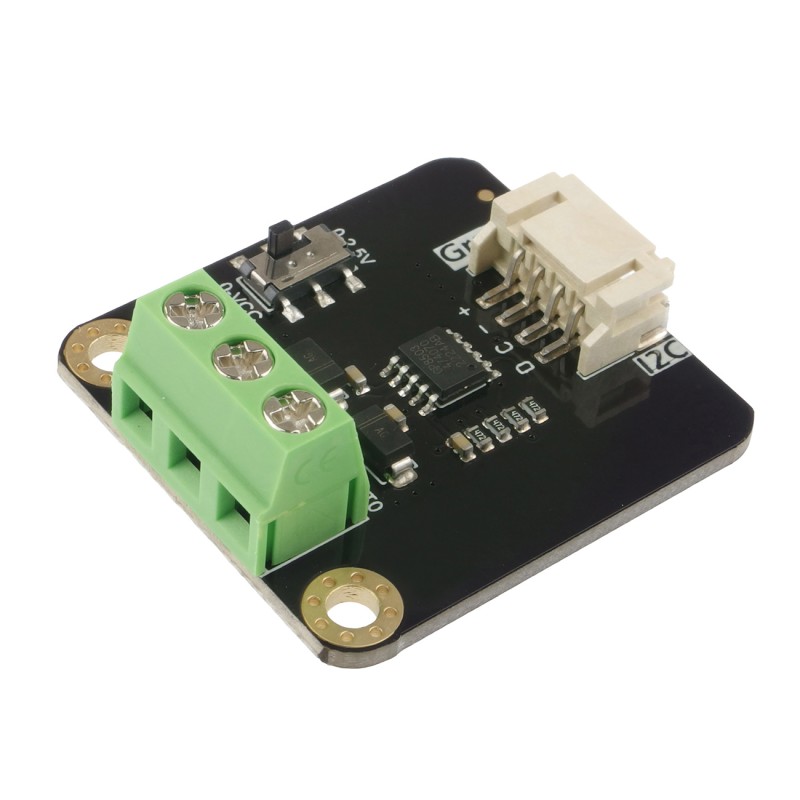

Gravity: GP8503 DAC Module - module with 2-channel DAC converter (I2C to 0-2.5V/VCC)
ID: 1188233
zł44.55
Tax included
zł36.22 tax excl.
Gravity module designed based on the GP8503 system. It is a two-channel DAC (analog-to-digital) converter with I2C communication that offers an output signal with 12-bit resolution and 0.1% accuracy. It allows you to generate analog signals with a voltage range from 0 to 2.5 V or from 0 to VCC. DFRobot DFR1034
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Gravity module designed based on the GP8503 system. It is a two-channel DAC (analog-to-digital) converter with I2C communication that offers an output signal with 12-bit resolution and 0.1% accuracy. It allows you to generate analog signals with a voltage range from 0 to 2.5 V or from 0 to VCC. This range is a standard control method and can be used in various automation applications, such as lighting control, frequency converters, valve regulation or pump control. The module's high precision and resolution make it a suitable solution for projects that require high signal accuracy, such as precise speed or angle control. With this module, the user can achieve precise control of analog signals, making it a versatile tool for a variety of applications in the field of automation and DIY projects.
Features
- Chip type: GP8503
- Communication interface: I2C
- Resolution: 12-bit
- Output voltage: 0 to 2.5V or 0 to VCC
- Number of channels: 2 channels
- Value range: 0 to 4095 corresponding to 0-2.5V or 0-VCC
- Accuracy: 0.1%
- Supply voltage: 3.3V to 5V
- Dimensions: 32 x 35 mm
Kit contains
- GP8503:2-Channel 12bit I2C to 0-2.5V/VCC DAC module
- Gravity-4P I2C/UART cable
