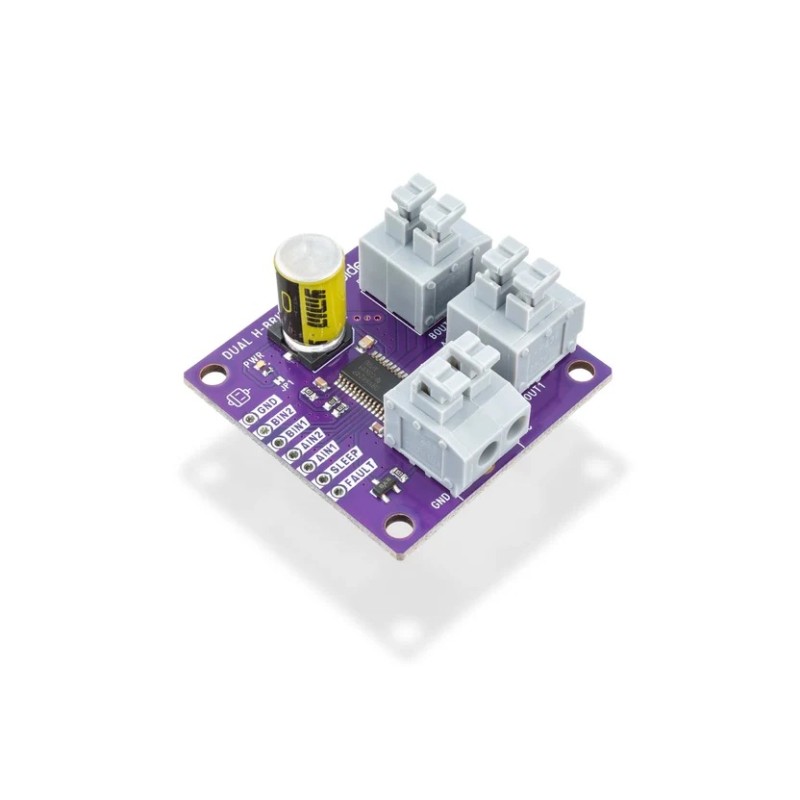

Angled view
search
  • Angled view
  • Main view
  • Kit view
  • View from top
  • View from back
ID: 1208301
zł39.40
Tax included

zł32.03 tax excl.

Dual-channel motor driver breakout based on the Texas Instruments DRV8424P with two full H-bridges for controlling two brushed DC motors or one bipolar stepper motor. It supports 4.5–33V motor supply, up to 1.5A continuous current per H-bridge, PWM speed control, current regulation and protection functions. Soldered 333160

24h
Available
Available quantity: 5

Description

The device Dual Motor H-Bridge DRV8424P Driver Breakout by Soldered is a dual-channel motor driver module designed to control two brushed DC motors or one bipolar stepper motor. The board uses the Texas Instruments DRV8424P, which integrates two full H-bridges and allows motor direction and speed to be controlled using digital and PWM signals.

The driver operates from a motor supply voltage of 4.5 to 33V and can provide continuous current of up to 1.5A per H-bridge with adequate heat dissipation. The DRV8424P provides integrated current sensing and regulation as well as configurable current decay modes, allowing the control method to be adapted to the characteristics of the connected motor.

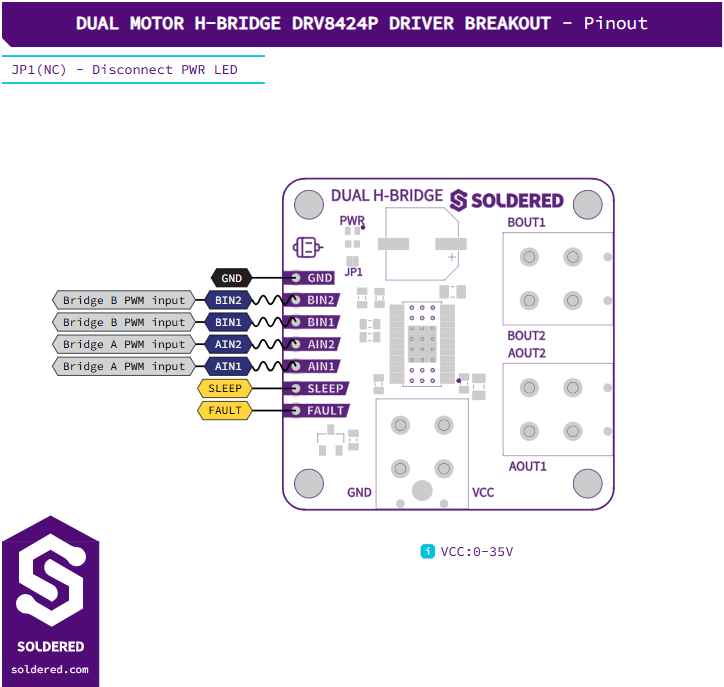

Soldered Dual Motor H-Bridge DRV8424P Driver Breakout - pinout diagram

Each of the two H-bridges is controlled by a separate pair of inputs: AIN1 / AIN2 and BIN1 / BIN2. This allows direction control, braking and PWM speed control. The SLEEP input places the device into a low-power sleep mode, while the FAULT output indicates detected fault conditions.

The DRV8424P includes protection against overcurrent, supply undervoltage and overheating. The control inputs are compatible with microcontrollers using 3.3V and 5V logic. The module can be used in robotics, automation and motorized systems requiring bidirectional motor control.

Features

  • Motor control
    • Driver: Texas Instruments DRV8424P
    • Number of full H-bridges: 2
    • Supports 2 × brushed DC motor
    • Supports 1 × bipolar stepper motor
    • Bidirectional motor control
    • PWM speed control
    • Braking function
    • Integrated current regulation
    • Configurable current decay modes
  • Electrical parameters
    • Motor supply voltage: 4.5 to 33V
    • Continuous current: up to 1.5A per H-bridge with adequate heat dissipation
    • 2 × full H-bridge
    • Control inputs compatible with 3.3V and 5V logic
  • Control and pins
    • Control interface: digital signals / PWM
    • Bridge A control inputs: AIN1, AIN2
    • Bridge B control inputs: BIN1, BIN2
    • SLEEP - sleep mode control
    • FAULT - fault indication output
    • H-bridge outputs for motors or stepper motor windings
  • Protection
    • Overcurrent protection
    • Undervoltage lockout
    • Thermal shutdown
    • FAULT output for fault indication
  • Operating modes
    • Direction control using logic states
    • PWM speed control
    • Braking mode
    • Low-power sleep mode
  • Mechanical parameters
    • Board dimensions: 38 × 38mm
  • Additional information
    • Open-source hardware design
    • Manufacturer: Soldered Electronics
    • Product code: 333160
1208301

Data sheet

Output current
1,5 A
Number of channels
2
Supply voltage min
4,5 V
Supply voltages max
33 V
