ATSAMD09 Breakout - universal I2C expander with ATSAMD09 microcontroller
ID: 1187135
5906623490578
zł28.76
Tax included
zł23.38 tax excl.
A versatile expander supported by the I2C interface, which significantly expands the capabilities of microcontrollers and microcomputers. It is based on the ATSAMD09 microcontroller and comes with default software that can be modified to suit the needs of the project. Adafruit 3657
Description
ATSAMD09 Breakout is a unique and versatile expander supported by the I2C interface that significantly expands the capabilities of microcontrollers and microcomputers. This compact layout gives users access to a variety of features and peripherals, making it ideal for many applications.
The module is based on the ATSAMD09 microcontroller and comes with default software that provides numerous functions and interfaces via the I2C bus. Instead of using separate I2C expanders such as GPIO, ADC converter or PWM controller, it allows the use of one board configured to provide a wide range of functionality. What is worth emphasizing is that the system is flexible and can be reprogrammed and adapted to obtain a different configuration of peripheral systems. You can add or remove specific features depending on your design needs, which makes the module a powerful tool.
The default module configuration includes many useful features such as ADC analog-to-digital inputs, PWM outputs, selectable pull-up or pull-down GPIO pins, NeoPixel output support, EEPROM for data storage, interrupt signal, and much more. Additionally, it comes with several connectors, making it easy to integrate with other devices and systems. Thanks to such great flexibility, the expander allows you to create advanced projects and increase the capabilities of your microcontroller.
Features
- 3 x 12-bit ADC inputs
- 3 x 8-bit PWM outputs
- 7 x GPIO with pull-up/pull-down
- NeoPixel output (up to 63 pixels)
- EEPROM with 64 bytes of NVM memory
- Interrupt output
- 2 x I2C address selection pins (0x49, 0x4A, 0x4B or 0x4C)
- Activity LED
- Dimensions: 32 x 12 x 3.5 mm
Kit contains
- ATSAMD09 Breakout module
- 2 x straight 16-pin goldpin connector
1187135
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
Cables for evaluation boards, set of 10 pcs., blue colour
zł5.20
24h
Available quantity: 198
Available
Set of 40 pieces of male-female connection cables, in various colors, 17 cm long. CAB_M-F (Rainbow-40-17)
zł5.99
Delivery date unknown
No product available!
A set of 10 pcs. Female brown connecting wires with a length of 25 cm. CAB_F-F (10-25-BRW)
zł5.04
24h
Available quantity: 36
Available
Premium Jumper Wire 10-Pieces Green Assortment M-M (Male-to-male)
zł6.90
24h
Available quantity: 7
Available
Other products in the same category (16)
16-channel IO expander with 7 analog inputs with 10-bit resolution. Communicates via USB interface. It has compact dimensions, making it suitable for small devices. Version with connector at the top. Numato Lab GP160002
zł455.59
24h
Available quantity: 2
Available
I2C multiplexer module with TCA9548A system. Allows you to connect up to 8 devices. The system works like a gateway - it transmits I2C interface data to one of the 8 main busses. This allows you to connect up to 8 devices with the same address. Adafruit 2717
zł35.04
4 weeks
No product available!
8-channel analog acquisition module with default current measurement mode (0–20 mA), designed for industrial applications requiring stable and precise data acquisition. Compatible with current sensors, it supports RS485 communication and the Modbus RTU standard, allowing easy integration with SCADA systems and PLC controllers. Galvanic isolation and noise immunity make it suitable for environments with high EMC requirements. Ideal for industrial process monitoring, environmental parameter measurement, and building automation.
zł105.17
4 weeks
No product available!
Module with 16-channel I/O ports expander controlled by the I2C interface. It was based on the MCP23017 chip. Waveshare MCP23017 IO Expansion Board
zł27.65
24h
Available quantity: 17
Available
Module with three voltage analog outputs ranging from 0 to 10 V. It communicates via the RS485 interface and supports the Modbus RTU protocol. The board is enclosed in an industrial housing. Wellpro WP3079ADAM
zł292.24
24h
Available quantity: 5
Available
I2C bus amplifier module based on the LTC4311 system. It enables communication via a popular interface over much longer distances while maintaining high transmission speeds. Adafruit 4756
zł37.06
24h
Available quantity: 3
Available

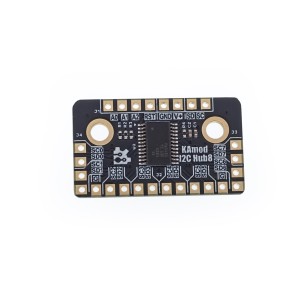

KAmod I2C Hub8 enables splitting the I2C bus into eight independent channels with a voltage translation function, which allows effective integration of multiple devices with repeating addresses. The module is recommended for advanced microprocessor projects with bus separation requirements and diverse voltage levels.
