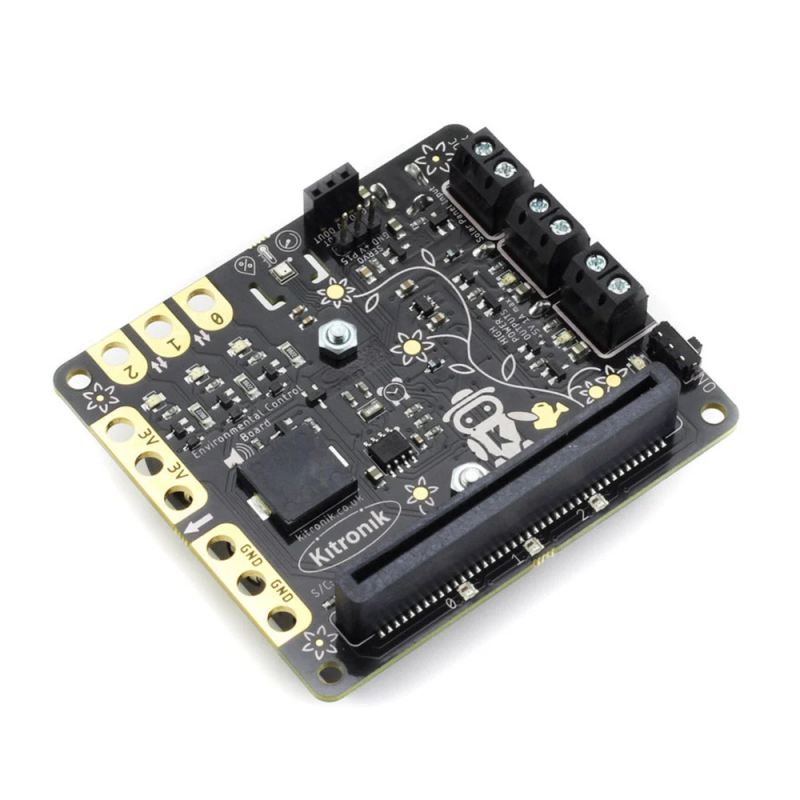

Main view
search
  • Main view
  • Main view (rotated)
  • Top view
  • Bottom view
  • Mounted BBC micro:bit
ID: 1207446
6609025152882
zł155.35
Tax included

zł126.30 tax excl.

Expansion board for BBC micro:bit designed for measuring environmental parameters and controlling devices based on sensor readings. Equipped with a BME280 temperature, pressure and humidity sensor, a real-time clock, two 1 A outputs, a servo output, piezo buzzer and ZIP LEDs. It can be powered by 3 AA batteries or through a 2.1 mm DC jack and also includes a solar panel input for charging rechargeable batteries. Kitronik 5697

24h
Available
Available quantity: 5

Description

Environmental control board for BBC micro:bit enables automated systems that react to changes in environmental conditions, including plant watering systems and greenhouse control applications. BBC micro:bit V1 or V2 plugs directly into the integrated edge connector. The onboard BME280 measures temperature, barometric pressure and humidity, while the RTC real-time clock enables time-based functions.


Two 1 A high-power outputs are available for controlling external devices, including water pumps, fans and heater pads. The board also provides a servo output, piezo buzzer, three status ZIP LEDs and a ZIP LED expansion connector. BBC micro:bit pins P0, P1 and P2 are additionally broken out to pads for crocodile clip connections, together with 3 V and GND, allowing additional sensors and actuators to be connected.



Power can be supplied from three AA batteries or through a 2.1 mm DC jack with a maximum input voltage of 5 V. The onboard regulator provides 3 V to the BBC micro:bit through the edge connector, so the microcontroller does not require a separate power source. A power switch controls the board supply, while a green LED indicates that power is on. The board also includes a solar panel input that can be used to charge rechargeable batteries installed in the 3 x AA holder.



Programming is supported in Microsoft MakeCode, with a dedicated Kitronik extension providing custom blocks for reading sensors and controlling connected devices. The board can also be programmed without the dedicated extension using MakeCode Blocks, JavaScript or Python. Direct control of some functions, including I2C communication, requires more advanced programming knowledge. Applications include environmental automation, data logging, automatic watering, lighting control and other feedback-based systems.

Features

  • Sensors and functions
    • BME280 environmental sensor
    • Temperature measurement
    • Barometric pressure measurement
    • Humidity measurement
    • RTC real-time clock
    • Piezo buzzer
    • 3 x status ZIP LED
  • Inputs and outputs
    • 2 x 1 A high-power output
    • Outputs suitable for pumps, fans and heater pads
    • 1 x servo output
    • 1 x ZIP LED expansion connector
    • BBC micro:bit pins broken out: P0, P1 and P2
    • Pads for crocodile clip connections
    • 3 V and GND connections
    • Integrated BBC micro:bit edge connector
    • Solar panel input
  • Power supply
    • Integrated holder for 3 AA batteries
    • 2.1 mm DC power jack
    • Maximum DC input voltage: 5 V
    • Regulated 3 V supply for BBC micro:bit
    • Charging support for rechargeable batteries using a connected solar panel
    • Power switch
    • Green power indicator LED
  • Programming and compatibility
    • Compatible with BBC micro:bit V1 and V2
    • Programming in Microsoft MakeCode
    • Dedicated Kitronik extension for MakeCode
    • Support for MakeCode Blocks
    • JavaScript support
    • Python support
  • Dimensions
    • Length: 74.5 mm
    • Width: 66 mm
    • Height: 29 mm
  • Required components

Kit includes

  • 1 x Kitronik 5697 Environmental Control Board
1207446

Data sheet

Interface
I2C
Type of sensor
BME280
Power supply voltage
5 V
Sensor type
Temperature, humidity and atmospheric pressure
