BIGTREETECH TMC5160T V1.0 – Stepper Motor Driver

Description

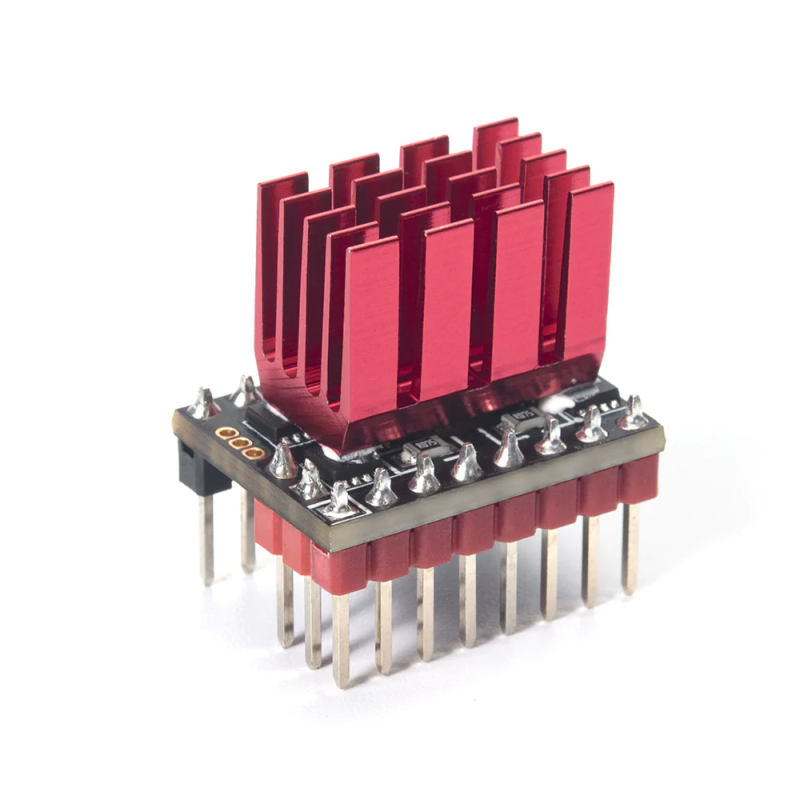

The stepper motor driver based on the Trinamic TMC5160-TA chip with external MOSFETs is designed for applications requiring high torque and precise control. It supports motor supply voltages from 8 V to 56 V DC (recommended up to 48 V) and an RMS current of up to 3 A (peak up to 4.4 A). It allows operation in SPI and Standalone (SD) modes with a resolution of up to 256 microsteps. Integrated features such as StealthChop2, SpreadCycle, StallGuard2, and CoolStep reduce noise, optimize energy consumption, and enable step loss detection. A finned aluminum heatsink improves thermal dissipation. The driver is compatible with BIGTREETECH mainboards such as Octopus Pro, SKR V1.4 Turbo, SKR 3, and Manta M5P/M8P. Designed for use in 3D printers, CNC machines, and other mechatronic systems.

Properties

• Control chip: TMC5160-TA
• Motor supply voltage: 8 V–56 V DC (recommended up to 48 V)
• Max RMS current: 3 A, peak current: 4.4 A
• Microstepping: up to 256
• Interface: SPI or SD (Standalone mode)
• Built-in features: StealthChop2, SpreadCycle, StallGuard2, CoolStep
• High-current external MOSFETs
• Finned heatsink for improved cooling
• Compatibility: BIGTREETECH Octopus Pro, SKR V1.4 Turbo, SKR 3, Manta M5P/M8P
• Dimensions: 20.4 × 15.3 × 23.2 mm
