ID: 1208294
zł6.21
Tax included

zł5.05 tax excl.

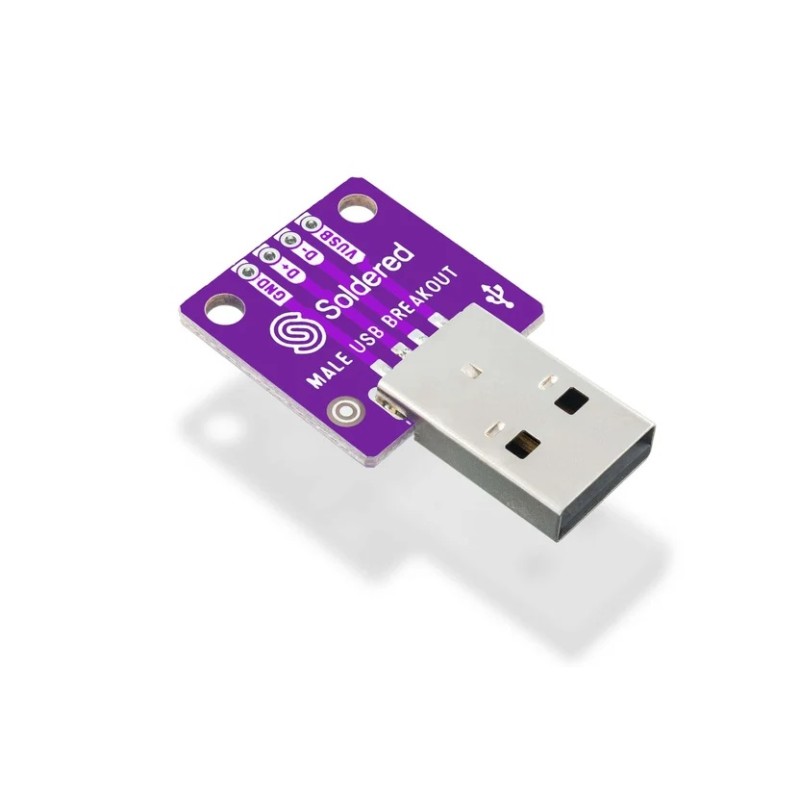

Breakout board with a male USB Type-A connector, bringing the VUSB, D+, D- and GND lines to 2.54mm through-holes. It is suitable for breadboards and prototyping boards and includes male headers for soldering. Soldered 333133

Delivery date unknown
Out-of-Stock

Description

The device USB Type A Male Breakout by Soldered is a breakout board designed to provide convenient access to a male USB Type-A connector in prototype circuits. The board brings the four basic USB lines — VUSB, D+, D- and GND — to through-holes, making it easy to connect them to a custom circuit.

The pins use a standard 2.54mm pitch, making the breakout suitable for solderless breadboards, prototyping boards and standard pin headers. Male headers are included with the board and need to be soldered by the user.

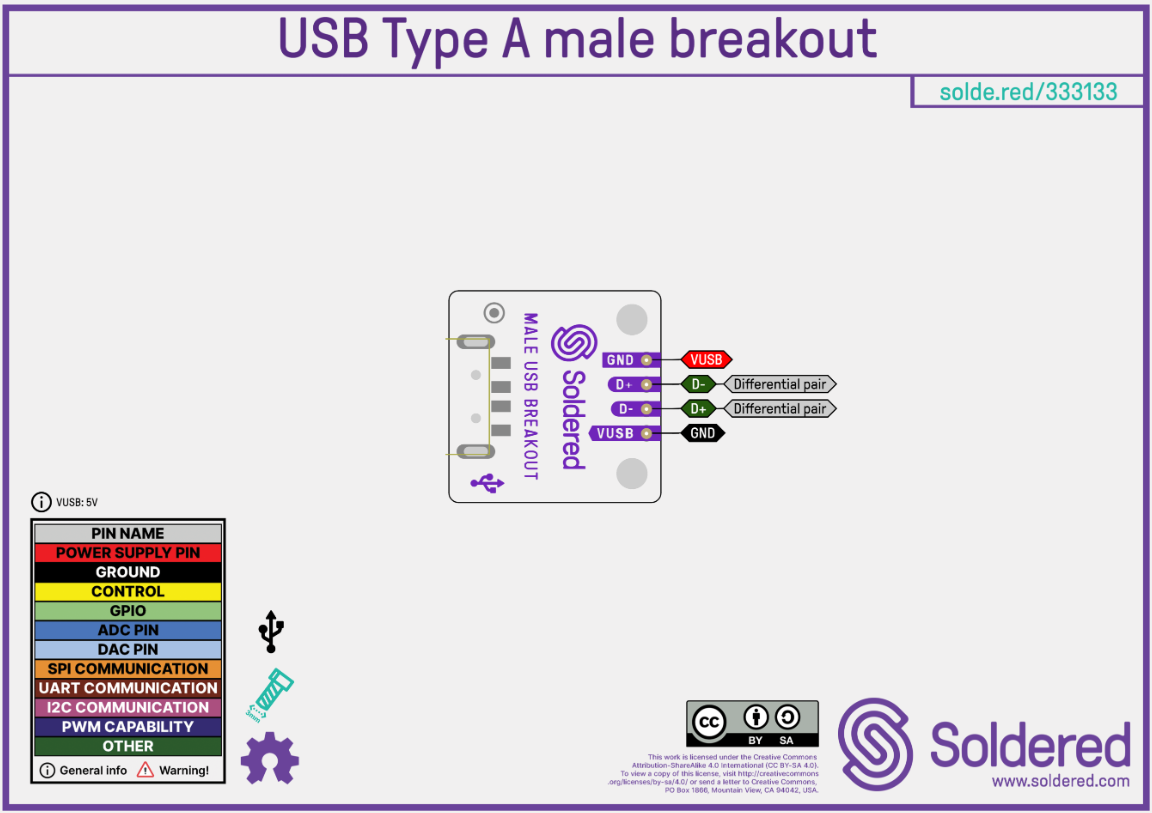

Soldered USB Type A Male Breakout - pinout diagram

The module is useful for prototyping devices that use USB for power or data transmission. Direct access to the VUSB, GND, D+ and D- lines makes it easy to route signals from the USB-A connector to a prototype or custom electronic circuit.

The board measures 22 × 22mm and features two mounting holes for securely mounting the adapter in a project. The hardware design is open source, and the manufacturer provides design files and a pinout diagram.

Features

  • Connector and pins
    • Connector type: USB Type-A
    • Connector gender: male
    • Broken-out lines: VUSB, D+, D-, GND
    • Through-hole connections
    • Pin pitch: 2.54mm
  • Applications
    • USB circuit prototyping
    • Suitable for solderless breadboards
    • Suitable for prototyping boards
    • Male headers included for soldering
  • Mechanical parameters
    • Board dimensions: 22 × 22mm
    • Number of mounting holes: 2
  • Additional information
    • Open-source hardware design
    • Pinout diagram available
    • Hardware design files available
    • Manufacturer: Soldered Electronics
    • Product code: 333133
