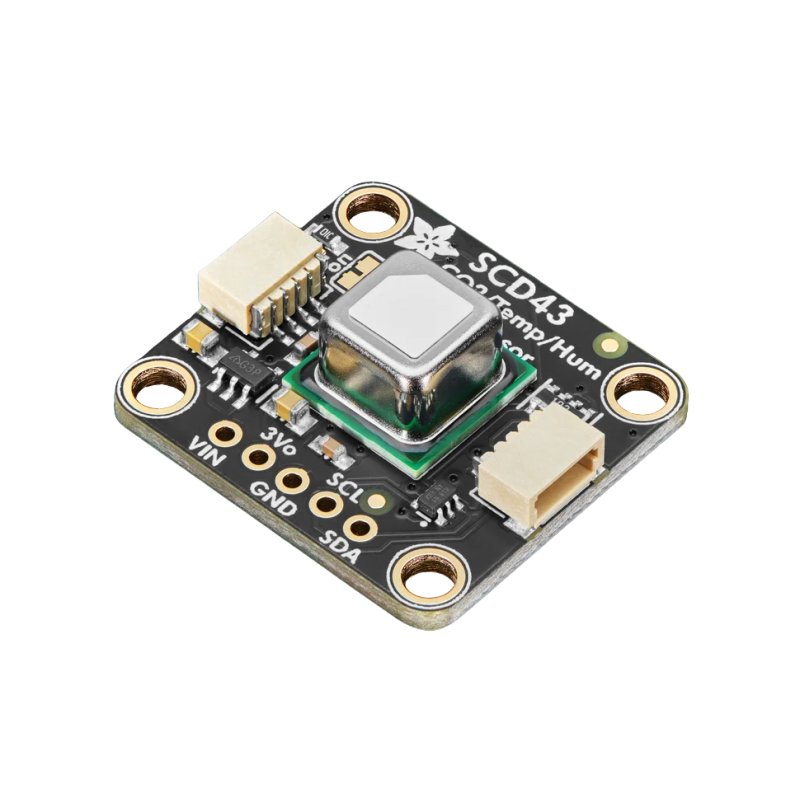

Main view
search
  • Main view
  • Top view
  • Connector view
  • Kit view
  • Bottom view
ID: 1210189
zł287.34
Tax included

zł233.61 tax excl.

SCD-43 sensor breakout for direct photoacoustic CO2 measurement from 400 to 5000ppm with accuracy of ±(30ppm + 3% of reading). Integrated temperature and humidity sensing, I2C communication and STEMMA QT / Qwiic connectors make it suitable for indoor air quality, ventilation and environmental monitoring systems. Adafruit 6512

4 weeks
Awaiting delivery
Kamami is the official distributor of Adafruit modules and development kits. All boards of this brand in our offer are original and come directly from the manufacturer.

Description

The sensor breakout Adafruit SCD-43 uses the SCD-43 device for direct carbon dioxide measurement using a photoacoustic principle. The sensor measures actual CO2 concentration rather than estimating it from volatile organic compounds. Its measurement range is 400–5000ppm, with a specified accuracy of ±(30ppm + 3% of reading). The module can be used for indoor air quality monitoring, ventilation control, environmental experiments and industrial or laboratory measurement systems.

The SCD-43 also integrates temperature and humidity sensing, allowing one module to provide three key environmental parameters. The CO2 response time is approximately 60s. The device is factory calibrated and linearized for easier integration into measurement systems.

Communication is provided through I2C at address 0x62. The Adafruit board includes two STEMMA QT / Qwiic connectors for solderless connection to compatible development boards. An onboard 3.3V regulator and logic-level shifting allow operation with systems powered from 3.3V to 5V.

Current consumption depends on the measurement interval and is approximately 17mA at a 5s measurement rate and approximately 0.5mA at a 5min measurement rate. The breakout measures approximately 25.5 × 22.8 × 8mm and weighs approximately 2.7g.

Features

  • Sensor
    • Device: SCD-43
    • CO2 measurement technology: photoacoustic
    • CO2 measurement range: 400–5000ppm
    • CO2 accuracy: ±(30ppm + 3% of reading)
    • Response time: approximately 60s
    • Factory calibrated and linearized
  • Additional measurements
    • Temperature
    • Relative humidity
  • Interface
    • Communication interface: I2C
    • I2C address: 0x62
    • Connectors: STEMMA QT / Qwiic
  • Power
    • Module supply voltage: 3.3–5V
    • Onboard 3.3V regulator
    • Logic-level shifting
    • Current consumption: approximately 17mA at 5s measurement interval
    • Current consumption: approximately 0.5mA at 5min measurement interval
  • Sensor element dimensions: approximately 10.1 × 10.1 × 6.5mm
  • Module dimensions: approximately 25.5 × 22.8 × 8mm
  • Weight: approximately 2.7g
  • Manufacturer: Adafruit
  • Product ID: 6512
1210189

Data sheet

Interface
I2C
Type of sensor
SCD43
Power supply voltage
3,3 - 5 V
Concentration measurement
CO2
