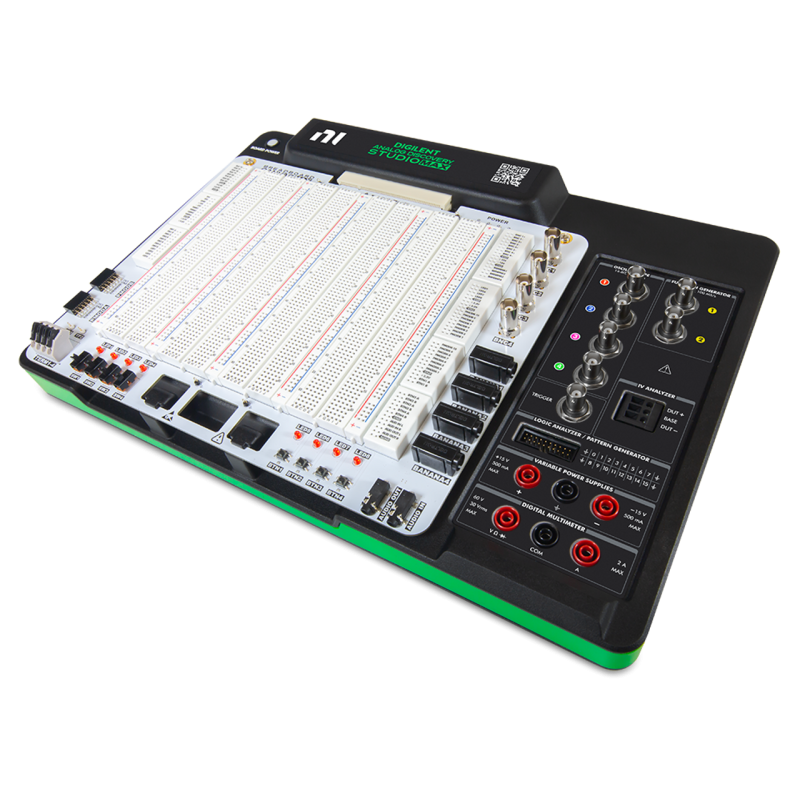

A complete mobile electronics laboratory, integrating up to 14 measuring instruments in one compact housing, ideal for students and lecturers of engineering courses. With built-in power supplies, a prototyping board and support for Digilent WaveForms, LabVIEW and Python software, ADS Max enables rapid prototyping, signal analysis and measurement automation. It is a modern educational tool, perfect for both laboratory work and remote learning. Analog Discovery Studio Max (410-435)

3 weeks
On request
Kamami is the official distributor of Digilent FPGA kits, modules and measurement tools. All products of this brand in our offer are original and come directly from the manufacturer.


ATTENTION! This product is for academic recipients (students and academic teachers) only!

After the ordering, please send us by e-mail the data listed below:

  • the name and last name
  • position (student, teacher)
  • e-mail (with the University domain)
  • University name
  • Facultie / Section
  • University address
  • University phone no.

Description

Analog Discovery Studio Max (ADS Max) is a versatile and complete mobile electronics laboratory designed for engineering education. It combines as many as 14 essential measurement instruments in a single compact enclosure, including an oscilloscope, waveform generator, logic analyzer, spectrum analyzer, digital multimeter (DMM), programmable power supplies, and protocol analyzer. This makes ADS Max an ideal solution for both in-person and remote learning.


1. Oscilloscope 5. Logic Analyzer
2. Waveform Generator 6. Power Supply
3. Analyzer 7. Digital Multimeter
4. Trigger 8. Canvas Max Breadboard

One of ADS Max's standout features is the ability to quickly and conveniently prototype electronic circuits. The device includes built-in power supplies and an integrated prototyping area in the form of a breadboard, allowing students to rapidly build and test their own projects. It's ideal for subjects such as circuit design, signal analysis, embedded systems, and power electronics. ADS Max is designed with versatility in mind. Thanks to its compact size and full functionality, it is suitable for traditional labs as well as home-based learning. It’s an excellent solution for universities aiming to provide students with access to advanced engineering tools without requiring a physical lab presence.

The device comes with Digilent WaveForms software, featuring ready-to-use instrument panels that enable immediate use with no additional configuration. ADS Max also supports LabVIEW, Python, and C environments, allowing for the development of custom applications and automation of measurement processes. Additionally, the LabVIEW WaveForms Toolkit ensures tight integration with LabVIEW analytical tools, enabling efficient data analysis and custom user interface development. ADS Max is part of a broader educational ecosystem that includes Canvas Max—an expansion module for the platform—as well as thematic kits developed in collaboration with academic partners. Available materials cover areas such as wireless communication, power electronics, digital logic, and more. This allows instructors to conduct lab classes based on proven, ready-to-use scenarios and educational tasks.

Features

Oscilloscope

  • Inputs: 4 single-ended channels
  • Resolution: 14-bit
  • Input voltage range: ±25 V
  • Sampling rate: 100 MS/s
  • Bandwidth: 50 MHz (-3 dB)
  • Input impedance: 1 MΩ || 15 pF

Function Generator

  • Outputs: 2 single-ended channels
  • Resolution: 14-bit
  • Output voltage range: ±10 V
  • Sampling rate: 100 MS/s
  • Bandwidth: up to 15 MHz (-3 dB)
  • Supported waveforms: standard, modulation, sweep, custom

Power Supply

  • Programmable:
    • Channels: 2
    • Output voltage: 1 V to 15 V and -1 V to -15 V
    • Output current: up to 500 mA per channel
  • Fixed:
    • Channels: 4
    • Output voltages: 15 V, -15 V, 5 V, 3.3 V
    • Output current: 500 mA, -500 mA, 2 A, 310 mA

Digital Multimeter (DMM)

  • Measurement ranges: DC/AC voltage, AC current, resistance, diode, continuity
  • Resolution: 4½ digits

Data Logger

  • Channels: 4 (shared with oscilloscope)
  • Measurement types: DC, True RMS, AC RMS, custom

Digital I/O

  • Channels: 16
  • Configuration: logic analyzer, pattern generator, static I/O
  • Logic levels: 3.3 V CMOS (5 V tolerant)
  • Sampling rate: 100 MS/s
  • Logic triggers: edge, pulse, timeout, protocol values

Spectrum Analyzer

  • Channels: 4 (shared with oscilloscope)
  • Frequency range: DC to 50 MHz
  • Window functions: Rectangular, Hamming, Blackman-Harris, Flat Top, others
  • Display modes: Value, Peak Hold, Average, Min Hold, Count
  • Measurements: NF, SFDR, THD, FF up to 10th harmonic, and more

Network Analyzer

  • Channels: 4 inputs (shared with oscilloscope) + 1 excitation signal (from AWG)
  • Frequency range: 20 μHz to 25 MHz
  • Frequency steps: 1 to 10,001 steps
  • Plot types: Bode, time domain, FFT, Nichols, Nyquist

Impedance Analyzer

  • Inputs/outputs: shared with oscilloscope and waveform generator
  • Frequency range: 20 μHz to 25 MHz
  • Voltage range: ±10 V
  • Current range: ±30 mA

Tracer

  • Inputs/outputs: shared with oscilloscope and waveform generator
  • Voltage range: ±10 V
  • Current range: ±30 mA

Protocol Analyzer

  • Inputs/outputs: 16 channels (shared with logic analyzer)
  • Generation: UART, SPI, I2C, CAN, SWD, AVR
  • Analysis: UART, SPI, I2C, CAN, SWD, AVR, CEC, JTAG, quadrature decoder

Other

  • Script editor: JavaScript language
  • Bidirectional external trigger
    • Channel: 1
    • Supported instruments: oscilloscope, waveform generator, logic analyzer, pattern generator
  • Additional connectors:
    • PCI connector: for Canvas expansions
  • WaveForms for Windows, Mac, and Linux
  • WaveForms SDK for custom applications and scripting in C/C++, Python, C#, Visual Basic
  • LabVIEW WaveForms Toolkit
  • Power:
    • Supply voltage: 19 V
    • Current consumption: 4.74 A
    • Power consumption: up to 76 W
  • Operating temperature: 10 °C to 35 °C
  • Dimensions: 26.68 x 39.09 x 5.51 cm

Kit contains

  • Analog Discovery Studio Max (ADS Max)
  • Analog Discovery Canvas Max
  • Power supply (115–230 VAC, 60 Hz, 19 V, 90 W)
  • 4 × M4 screws (6 mm)
  • USB cable type A – type C (2 m)
  • Screwdriver
  • Flywire cable 2x10, keyed
1197619
