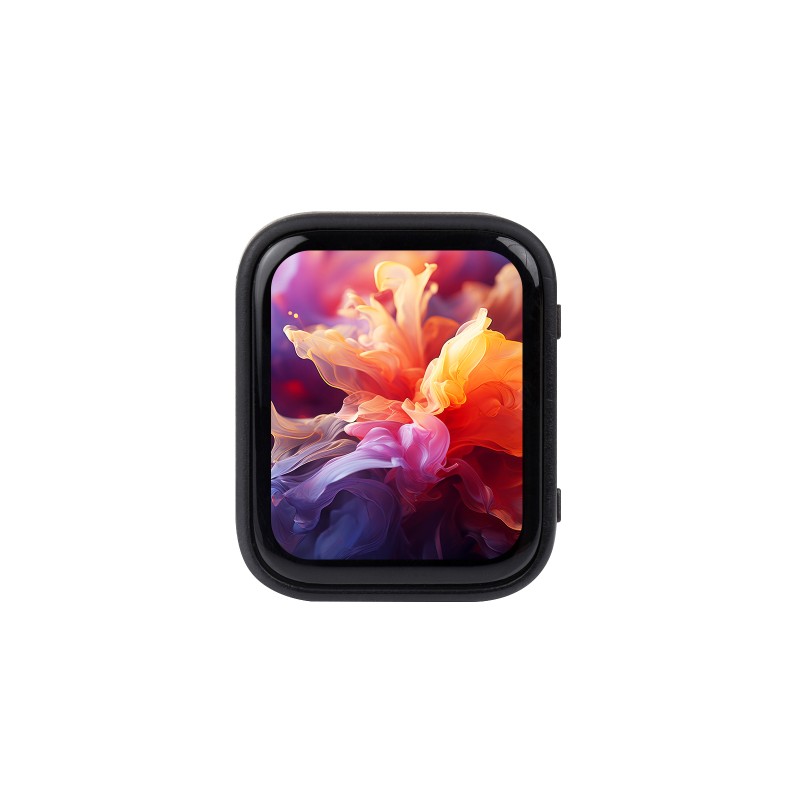

RP2350 development board with 1.8-inch AMOLED touch display and battery - Waveshare 31295
ID: 1198965
zł127.38
Tax included
zł103.56 tax excl.
RP2350-Touch-AMOLED-1.8 with battery is an advanced development board with an AMOLED display, touch support, motion sensors, audio, and a wide range of interfaces. Designed for mobile and embedded applications, it enables the creation of compact interactive devices with full open-source support.
Description
RP2350-Touch-AMOLED-1.8 is a compact development board equipped with a 1.8-inch AMOLED display with a resolution of 368 × 448 pixels, a capacitive touch panel, and a 3.7 V MX1.25 lithium-ion battery. The integrated RP2350A microcontroller with a unique dual architecture (ARM Cortex-M33 and Hazard3 RISC-V) enables a flexible approach to embedded system design. The module also includes a 6-axis sensor (QMI8658), RTC, 16 MB Flash memory, ES8311 audio codec, NS4150B amplifier, microphone, speaker, and microSD card reader.
The built-in SH8601 controller drives the display via QSPI, while the FT3168 manages touch communication via I2C. Power supply and programming are provided through a USB Type-C connector. The enclosure with a cover allows integration into mobile projects, and support for C/C++, MicroPython, and Arduino IDE facilitates application development.
Properties
- Microcontroller: RP2350A, dual-core ARM Cortex-M33 or Hazard3 RISC-V, up to 150 MHz
- Memory: 520 KB SRAM, 16 MB NOR Flash
- Display: AMOLED 1.8" 368×448, 16.7M colors, SH8601 driver
- Touch panel: FT3168, I2C interface
- IMU sensor: QMI8658 (3-axis accelerometer and 3-axis gyroscope)
- RTC: PCF85063
- Audio: ES8311 codec, NS4150B amplifier, microphone, and speaker
- Power supply: USB-C or integrated 3.7 V MX1.25 battery (3.85 × 24 × 28 mm)
- microSD support
- Interfaces: 2× I2C, 1× UART, 1× ADC (12-bit), 5× PWM, 5× GPIO, 12× PIO
- Low-power and sleep modes supported
- Programming: drag-and-drop via USB, support for C/C++, MicroPython, Arduino IDE
- Dedicated enclosure with battery slot and removable cover
- Dimensions: 45.20 × 37.60 × 15.00 mm
Included in the set
- RP2350-Touch-AMOLED-1.8 (battery version) ×1
- 3.7 V MX1.25 lithium-ion battery ×1
1198965
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 16 MB
- Number of I/O
- 22
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- Yes
- Length
- 45,2 mm
- Width
- 37,6 mm
- USB connector type
- USB type C
