RP2350 development board with 1.64-inch 280x456 AMOLED touch display - Waveshare 31337
ID: 1198966
zł105.44
Tax included
zł85.72 tax excl.
RP2350-Touch-AMOLED-1.64-M is a compact board featuring the RP2350 microcontroller and an AMOLED display, equipped with touch input, motion sensors, and a full set of peripheral interfaces. Designed for modern mobile applications, HMI systems, and experiments with RISC-V and ARM architectures.
Description

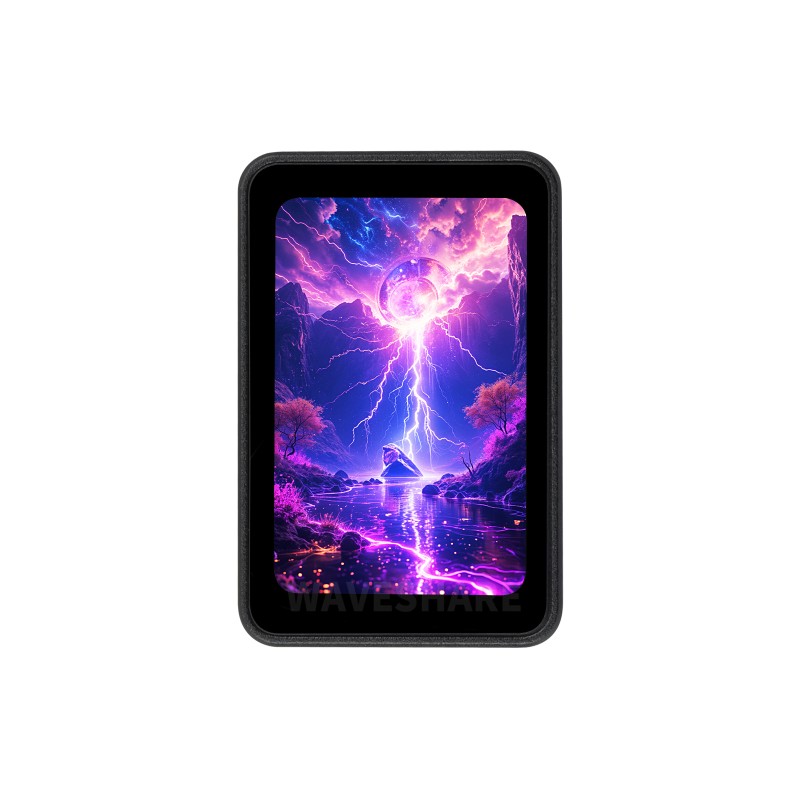

The RP2350-Touch-AMOLED-1.64-M development board features the RP2350A microcontroller, offering high performance in a compact form. It includes a 1.64″ AMOLED display with a 280×456 resolution and a capacitive touch panel (FT3168), allowing for the creation of advanced graphical user interfaces. The RP2350A supports either dual ARM Cortex-M33 cores or dual Hazard3 RISC-V cores, enabling flexible architecture usage. The board also integrates a 6-axis sensor (accelerometer and gyroscope), 16 MB Flash memory, RTC, TF card slot, and a Li-ion battery connector with charging support. It supports programming in C/C++, MicroPython, and Arduino IDE.
Features
- Microcontroller: RP2350A (2× Cortex-M33 or 2× Hazard3 RISC-V)
- Clock speed: up to 150 MHz
- Memory: 520 KB SRAM, 16 MB Flash (W25Q128JVSIQ)
- Display: 1.64″ AMOLED, 280×456, 16.7 M colors
- Brightness: 350 cd/m²
- Contrast: 60000:1
- Viewing angle: 178°
- Display controller: CO5300 (QSPI)
- Touch panel: capacitive, FT3168 (I²C)
- Sensors: QMI8658 – 3-axis accelerometer + 3-axis gyroscope
- Connectors: USB 1.1 (host/device), Type-C, TF (microSD), MX1.25 (Li-ion)
- GPIO: 17×
- UART: 2×
- I²C: 2×
- ADC: 3× (12-bit)
- PWM channels: 13×
- PIO (programmable I/O state machines): 12×
- Battery power: 3.7 V Li-ion connector with charge/discharge support
- Power-saving modes: sleep and standby
- Programming: USB drag-and-drop, SDK support
- Dimensions: 44 mm × 29.1 mm × 9.6 mm
1198966
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 16 MB
- Number of I/O
- 17
- Ethernet
- none
- WiFi/BT module
- No
- Bluetooth module
- No
- MicroSD slot
- Yes
- Length
- 44 mm
- Width
- 29,1 mm
- USB connector type
- USB type C
