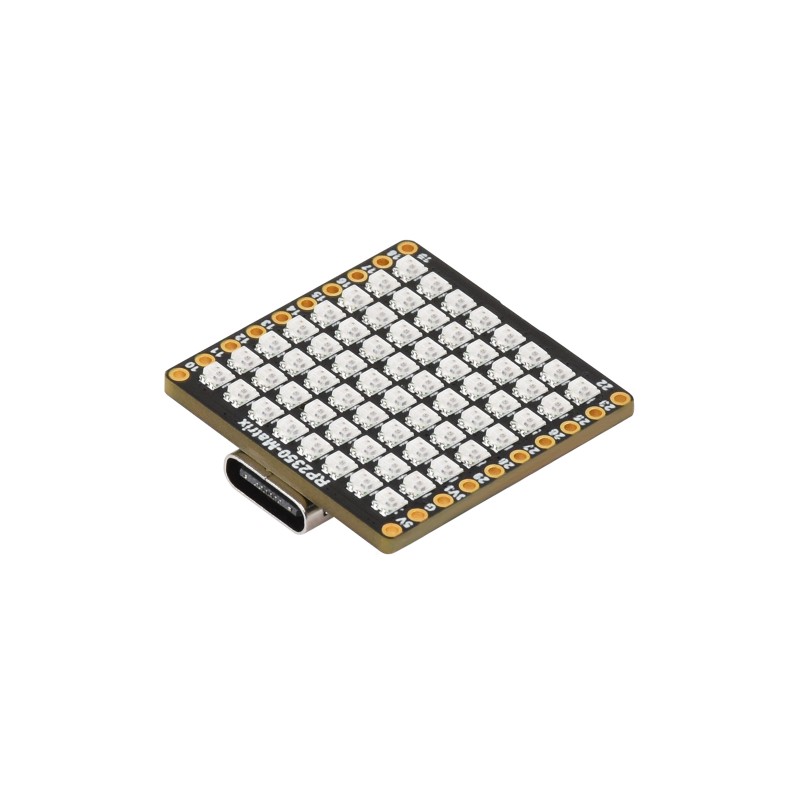

Waveshare 32225 – overview
search
  • Waveshare 32225 – overview
  • Top view – component side
  • Waveshare 32225 – top view
  • Angled view – component side
  • Waveshare 32225 – angled view
ID: 1200329
zł41.07
Tax included

zł33.39 tax excl.

Development board based on the RP2350A microcontroller featuring a unique dual-core, dual-architecture design (Arm Cortex-M33 + Hazard3 RISC-V), an onboard 6-axis sensor, and an 8×8 RGB LED matrix for IoT, robotics, and interactive systems. Waveshare RP2350-Matrix

24h
Available
Available quantity: 5
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

The Waveshare 32225 RP2350-Matrix is a microcontroller development board based on the Raspberry Pi RP2350A, which combines a dual-core Arm Cortex-M33 processor and a dual-core Hazard3 RISC-V processor. This architecture provides flexibility in choosing the computing core and broad programming capabilities, with an operating frequency of up to 150 MHz.

The board integrates a 6-axis IMU sensor (three-axis accelerometer and three-axis gyroscope), enabling motion detection and orientation tracking. In addition, the module includes an 8×8 RGB LED matrix, allowing visual effects and status indication without additional external components.

The board provides a set of 25 multifunction GPIO pins for connecting peripherals such as sensors, motors, converters, and displays. Communication and programming are handled via a USB Type-C connector. Supported development environments include C/C++, Arduino IDE, and MicroPython. Programming can be performed using a drag-and-drop method over USB, similar to other Raspberry Pi Pico-class products.

The module is used in IoT projects, robotics, motion-monitoring systems, electronic games, and applications that require both sensor data processing and visual output.

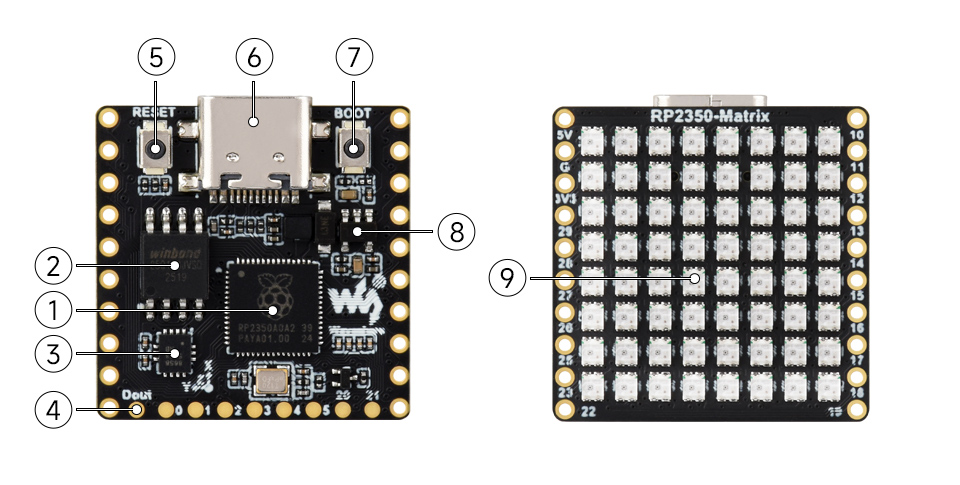

[1]. RP2350A: Dual-core, dual-architecture design with a maximum operating frequency of up to 150 MHz

[2]. 16MB Flash: Integrated 16 MB Flash memory

[3]. QMI8658: QST 6-axis sensor (3-axis accelerometer, 3-axis gyroscope)

[4]. Dout pin: Used for extending the RGB matrix

[5]. RESET button

[6]. USB Type-C connector: For programming; USB 1.1 with device and host support

[7]. BOOT button: Press during reset to enter download mode

[8]. ME6217C33M5G: Low-dropout voltage regulator with a maximum output current of 800 mA

[9]. RGB LED matrix: 8 × 8

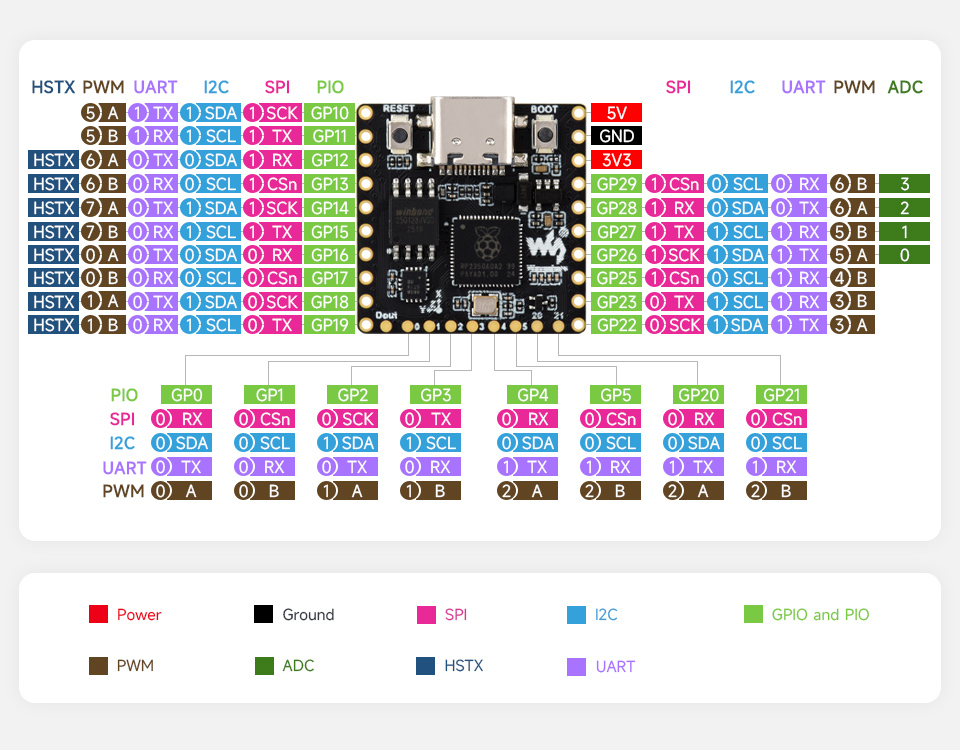

                                                                                                                                              Pin definition



Features

  • Microcontroller: Raspberry Pi RP2350A
  • Architecture: Dual-core Arm Cortex-M33 and dual-core Hazard3 RISC-V
  • Maximum clock frequency: Up to 150 MHz
  • SRAM: 520 KB
  • Flash memory: 16 MB onboard
  • Onboard IMU: 6-axis sensor (3× accelerometer, 3× gyroscope)
  • LED matrix: 8×8 RGB
  • GPIO: 25 multifunction pins
  • Interfaces: SPI, I2C, UART, ADC, PWM (configuration depends on the project)
  • Programming interface: USB Type-C
  • Supported languages: C/C++, MicroPython, Arduino IDE
  • Power modes: Low-power operation and sleep modes
  • Applications: IoT, robotics, interactive systems, motion measurement
  • Programming method: USB drag-and-drop
1200329

Data sheet

Microcontroller
RP2350A
Flash memory
16 MB
Number of I/O
25
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
25 mm
Width
25 mm
USB connector type
USB type C
