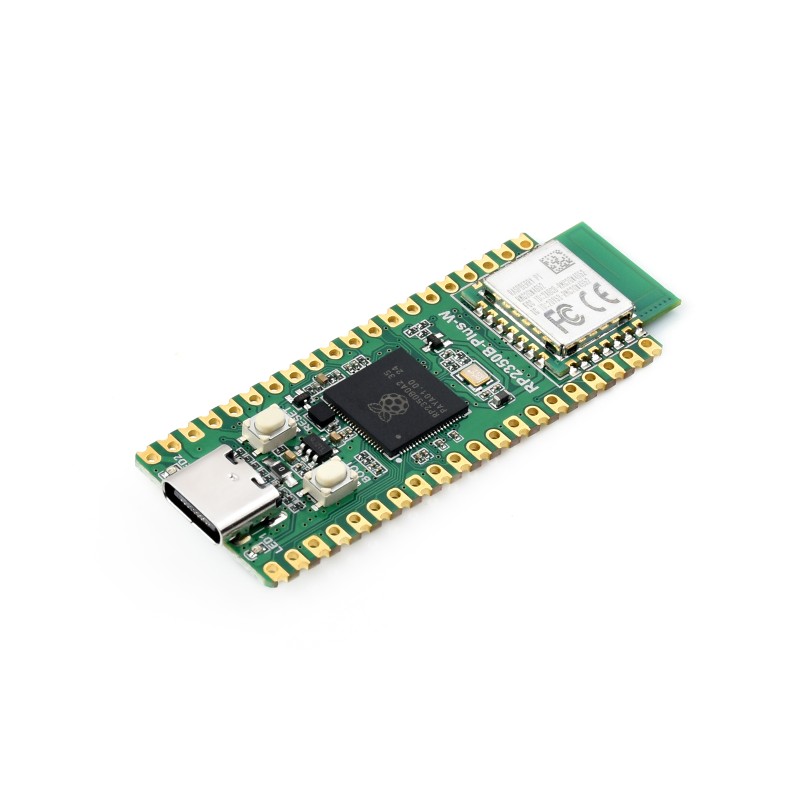

RP2350B-Plus-W board with RP2350B microcontroller and Wi-Fi/Bluetooth module - Waveshare 32048
ID: 1201219
zł57.71
Tax included
zł46.92 tax excl.
RP2350B-Plus-W is an advanced development board with an RP2350B microcontroller and wireless Wi-Fi/Bluetooth communication, enabling selection between ARM and RISC-V architectures. Intended for educational applications, IoT device prototyping, and projects requiring versatile communication and processing capabilities.
Description
The RP2350B-Plus-W development board by Waveshare based on the Raspberry Pi RP2350B microcontroller enables operation in ARM Cortex-M33 or RISC-V Hazard3 dual-core architecture, with a maximum frequency of 150 MHz. The integrated Raspberry Pi Radio Module 2 communication module based on the Infineon CYW43439 chip provides wireless connectivity in Wi-Fi 4 and Bluetooth 5.2 standards. The device is equipped with 520 kB of SRAM and 16 MB of Flash memory and allows further expansion thanks to pads for mounting a PSRAM chip.
The board features a USB Type-C connector supporting device and host modes (USB 1.1), 41 multifunctional GPIO pins including SPI, I2C, UART interfaces, 6 12-bit ADC channels, 22 PWM channels and 12 PIO programmable state machines. It supports drag-and-drop programming via USB mass storage, as well as C/C++, MicroPython and Arduino IDE environments. Also included are BOOT and RESET buttons and two LED indicators.
The RP2350B-Plus-W is used in projects requiring flexibility of CPU architecture, wireless communication and low power consumption, as well as an experimental platform for learning microcontroller programming in RISC-V and ARM architecture.
Properties
- Raspberry Pi RP2350B microcontroller with two Cortex-M33 or Hazard3 RISC-V cores
- Clock speed up to 150 MHz
- 520 kB SRAM memory
- 16 MB NOR Flash memory
- Pads for external PSRAM chip mounting
- Raspberry Pi Radio Module 2 with Wi-Fi 4 and Bluetooth 5.2 (Infineon CYW43439 chip)
- USB 1.1 with host and device mode support
- USB Type-C connector
- 41 GPIO pins (multifunctional)
- Interfaces: 2× SPI, 2× I2C, 2× UART, 6× ADC (12-bit), 22× PWM
- 12 PIO state machines
- Built-in temperature sensor
- Built-in BOOT and RESET buttons
- Two LEDs (one for MCU and one for Wi-Fi module)
- Low power consumption: sleep and standby modes
- Support for C/C++, MicroPython, Arduino IDE
1201219
Data sheet
- Microcontroller
- RP2350
- Flash memory
- 16 MB
- Number of I/O
- 41
- Ethernet
- none
- WiFi/BT module
- Yes
- Bluetooth module
- Yes
- MicroSD slot
- No
- Length
- 51mm
- Width
- 21 mm
- USB connector type
- USB type C
