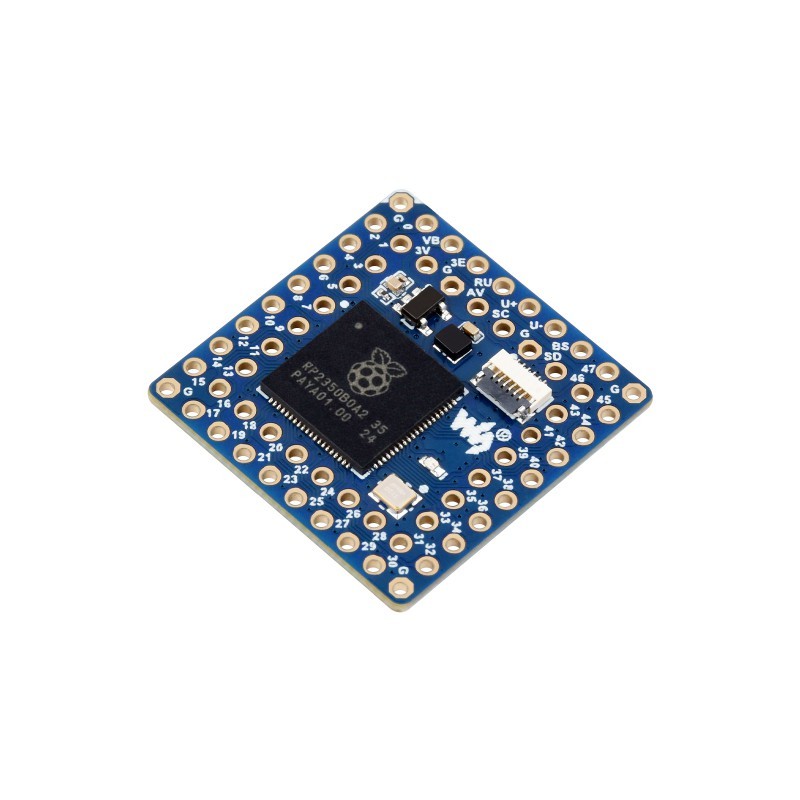

Module with RP2350B microcontroller, clock speed up to 150 MHz, 0 MB PSRAM, 16 MB Flash, 48 GPIO, 2.54 mm pitch, compact size 25.40 x 25.40 mm. Waveshare Core2350B0

6 weeks
Awaiting delivery
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Core2350B module with RP2350B microcontroller designed by Raspberry Pi intended for embedded applications and integration with carrier boards. Compact dimensions of 25.40 x 25.40 mm and pin headers with 2.54 mm pitch allow easy use in prototyping, control systems and target devices.

The module features a dual-core, dual-architecture design supporting ARM Cortex-M33 or Hazard3 RISC-V cores with a clock frequency up to 150 MHz. The board includes 16 MB Flash memory and 520 kB SRAM. A total of 48 multifunction GPIO pins and multiple communication interfaces enable implementation of advanced data processing and IoT applications.

The 6PIN FPC connector allows connection of a USB interface via an adapter (not included), while low power modes enable use in battery-powered devices. Programming is performed via USB using mass storage functionality.

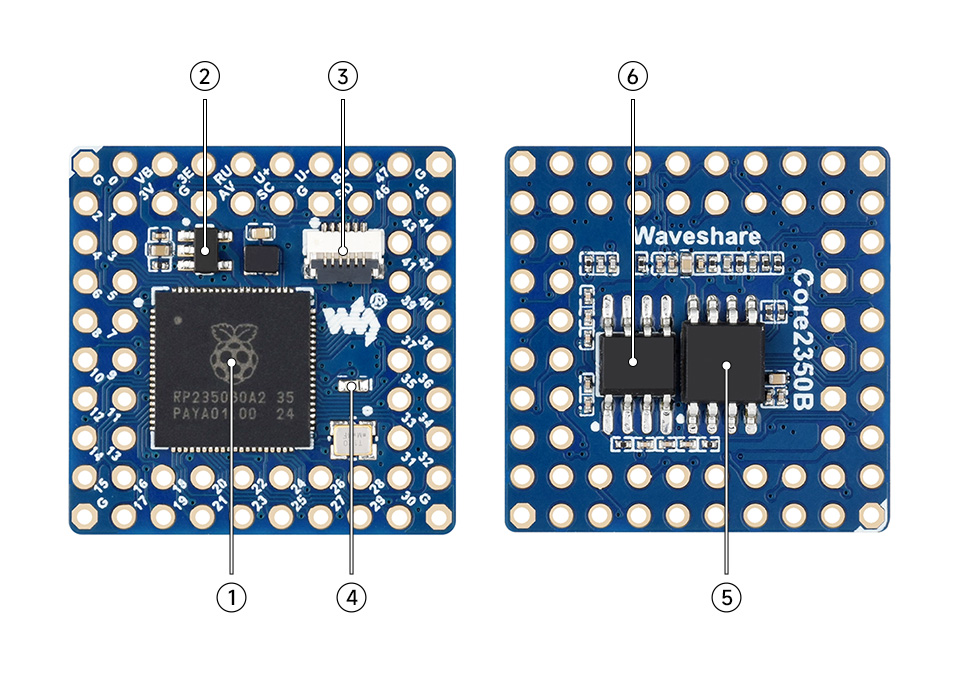

  1. RP2350B - dual-core and dual-architecture design, up to 150 MHz operating frequency
  2. ME6217C33M5G - LDO regulator, maximum output current 800 mA
  3. FPC connector - 6PIN connector with 0.5 mm pitch
  4. LED indicator - user LED (not a power indicator)
  5. Flash memory: 16 MB NOR-Flash
  6. PSRAM: 0 MB

Features

  • Microcontroller: RP2350B
  • Core architecture: dual-core ARM Cortex-M33 or dual-core Hazard3 RISC-V
  • Clock frequency: up to 150 MHz
  • SRAM: 520 kB
  • Flash memory: 16 MB
  • PSRAM: 0 MB

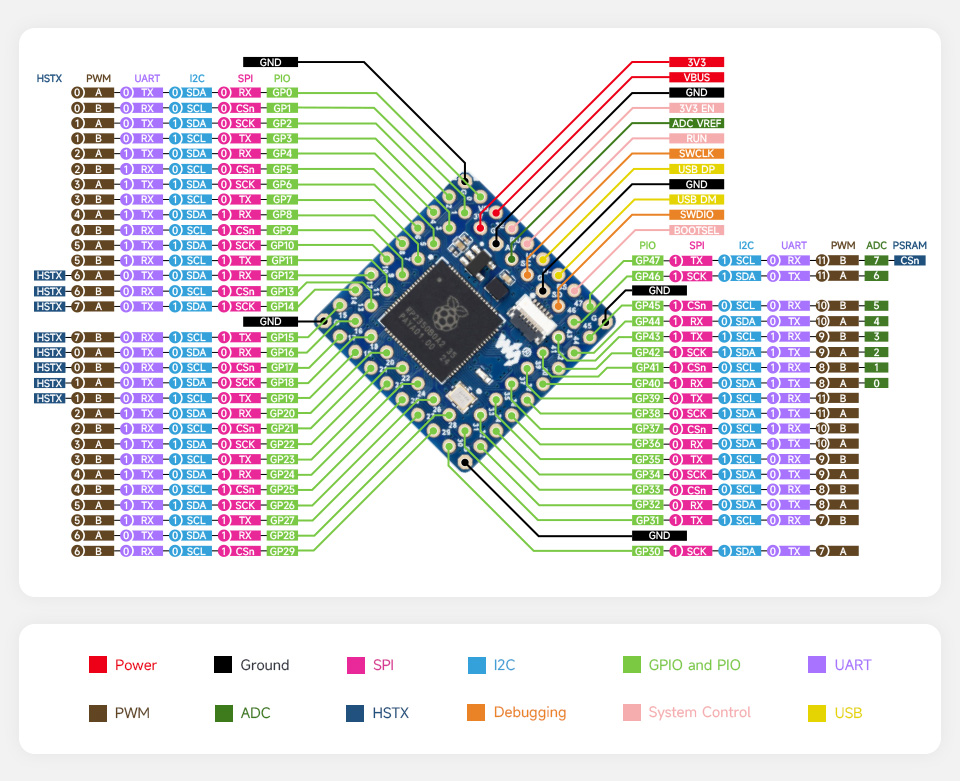

  • GPIO: 48 multifunction pins
  • I2C: 2
  • UART: 2
  • ADC: 8 channels 12-bit
  • PWM: 24 channels
  • PIO: 12 state machines
  • USB: 1.1 device and host
  • USB interface: via 6PIN FPC connector
  • Pin pitch: 2.54 mm
  • Connector: FPC 6PIN 0.5 mm
  • Voltage regulator: ME6217C33M5G 800 mA
  • Temperature sensor: yes
  • Low power modes: sleep, dormant

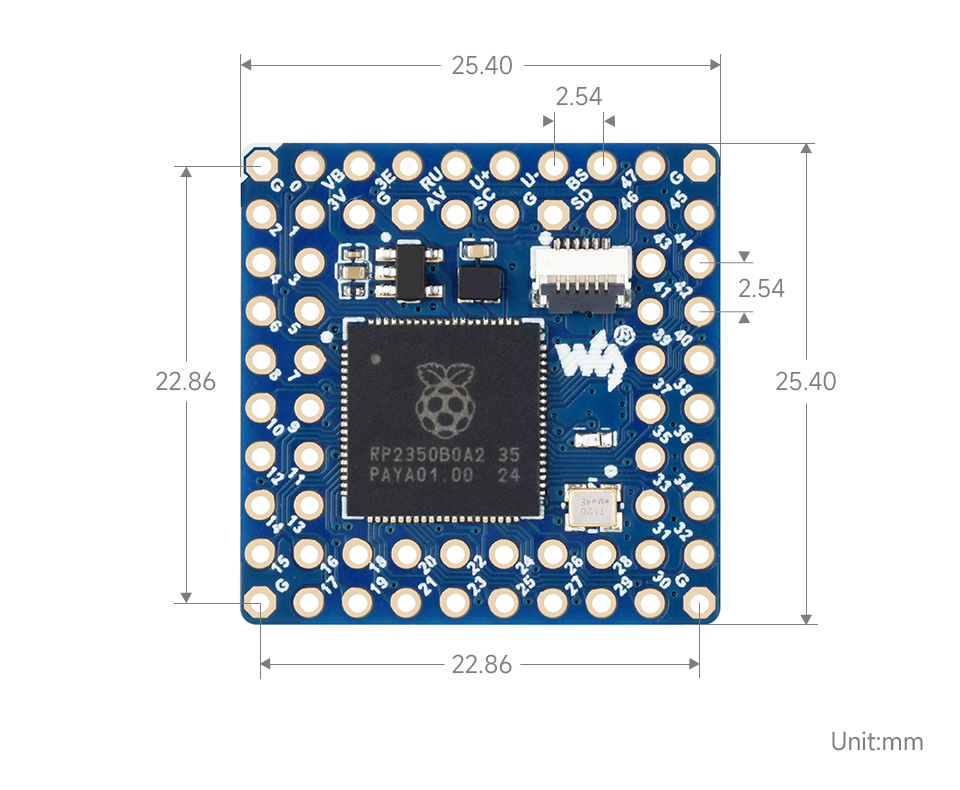

  • Dimensions: 25.40 x 25.40 mm
1203958

Data sheet

Microcontroller
RP2350B
Flash memory
16 MB
Number of I/O
48
Ethernet
none
WiFi/BT module
No
Bluetooth module
No
MicroSD slot
No
Length
25,4 mm
Width
25,4 mm
USB connector type
Brak
