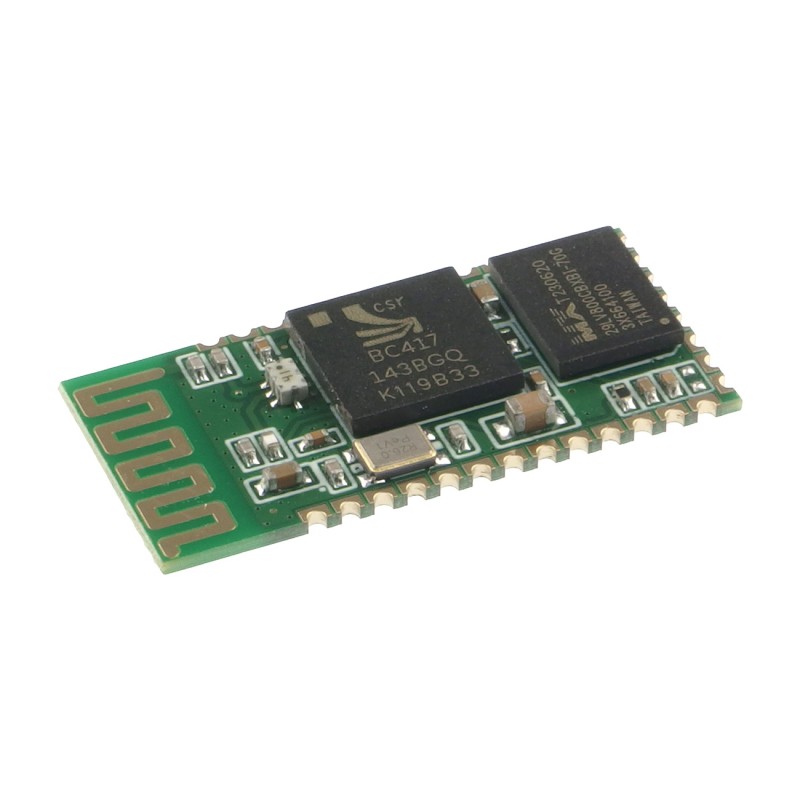

Bluetooth module HC-06 (2.0 + EDR)
zł21.63 tax excl.
Bluetooth module v2.0 + EDR, controlled by AT + commands with built-in antenna.
Free shipping
free shipping in Poland for all orders over 500 PLN
Same day shipping
If your payment will be credited to our account by 11:00
14 days for return
Each consumer can return the purchased goods within 14 days
Description
Bluetooth module v2.0 + EDR, controlled by AT + commands with built-in antenna.
properties
- Bluetooth v2.0 + EDR specification
- Frequency 2.4 GHz ISM
- Modulation: GFSK (Gaussian Frequency Shift Keying)
- Transmission power: 4dBm, Class 2
- Security: authentication and encryption
- Sensitivity: -84dBm
- Profile: Bluetooth serial port
- Interface: UART
- Speed:
- Synchronous: up to 2.1Mbps (Max) / 160 kbps
- Synchronous 1Mbps / 1Mbps
- Working temperature: -25 ~ 75 ° C
- Operating voltage: 3.3 V
- Current: 50 mA
- Dimensions: 26.9 x 13 mm
Description of leads
