modCC2540-A1 - Bluetooth BLE 4.0 module with Texas Instruments CC2540 system
ID: 559266
5906623454853
zł30.80
Tax included
zł25.04 tax excl.
ModCC2540-A1 allows the use of Bluetooth transmission features BLE 4.0 - thanks to the built-in CC2540 chip, it is possible to create complex projects without the use of an additional microcontroller. modCC2540-A1
Description
A module with large possibilities and small dimensions (24.1 x 15.2 x 1.9 mm), it has a built-in CC2540 (8051 microcontroller) and a PCB antenna.
Features
- Bluetooth 4.0 module (ISM 2.4GHz)
- It uses the TI CC2540 / 1 chip with 256 kB Flash memory
- Supports master / slave modes
- Integrated Bluetooth BLE stack, containing ATT, GATT, SMP, L2CAP, GAP
- Up to 70 meters range with integrated antenna (with direct visibility)
- It can be controlled via AT ASCII commands (via UART) or programmed in the module
- Supervision of RSSI values (for applications using RSSI for distance measurement)
- 10-bit analogue-to-digital converter
- Serial interface (UART / SPI)
- Interrupting break and watchdog timer
- It has an AES coprocessor
- Power supply voltage: 2 ... 3.6 V
- Edge leads allow easy assembly of the module
- Module dimensions: 24.1 x 15.2 from 1.9 mm
Block diagram of CC2540
Included
- Module modCC2540-A1
559266
Manufacturer BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
Responsible person BTC Korporacja sp. z o. o. Lwowska 5 05-120 Legionowo Poland sprzedaz@kamami.pl 22 767 36 20
You might also like
The BLE 4.0 Bluetooth module with CC2540 allows for transmission in both Slave and Master modes. It has an integrated PCB antenna and an extensive security system. modCC2540
zł24.40
24h
Available quantity: 6
Available
Other products in the same category (16)
Bluetooth audio receiver module enclosed in a housing that enables wireless transmission of sounds. It is equipped with a PCB antenna and a 3.5 mm audio jack
zł12.80
24h
Available quantity: 14
Available
Bluetooth audio receiver module enclosed in a housing that enables wireless transmission of sounds. It is equipped with a PCB antenna, microphone, 3.5 mm audio jack and control buttons
zł23.85
24h
Available quantity: 5
Available
Waveshare BLE4.0 Bluetooth 2.4G Mother Board, provides I/O expansion connectors and various interfaces. BLE400
zł36.90
24h
Available quantity: 5
Available
Evaluation kit with Bluetooth 5.0 Sparkfun Artemis module. Equipped with a microphone, kmaers and accelerometer. SparkFun DEV-16828
zł153.80
24h
Available quantity: 1
Available
Bluetooth 5.2 and IEEE 802.15.4 communication kit. It uses the STM32WB55RG microcontroller (1 MB Flash, 256 KB SRAM, ARM® Cortex®-M4 and Cortex®-M0 +). STMicroelectronics NUCLEO-WB55RG
zł189.49
1 weeks
No product available!
The ESP32 WiFi and Bluetooth module has a dual-core 32-bit MCU that integrates WiFi HT40 and Bluetooth / BLE 4.2 technology. Designed for mobile devices and Internet of Things (IoT) applications. DFRobot TEL0111
zł38.93
24h
Available quantity: 3
Available
An advanced wireless communication module based on the Bluetooth 5.2 (Bluetooth® Low Energy, BLE) stack, which is designed using the powerful Nordic nRF5340 SoC. It provides GPIO, SPI, UART, TWI, I2C, PDM, PWM, ADC, NFC and USB interfaces for connecting peripherals and sensors. SparkFun WRL-25465
zł66.44
24h
Available quantity: 2
Available
The evaluation kit designed for the nRF51822 Bluetooth 4.0 system consists of the BLE400 base board and the Core51822 wireless module with the nRF51822 chip. Waveshare NRF51822 Eval Kit
zł86.42
4 weeks
No product available!
Powerful, generic Wi-Fi+BT+BLE MCU modules that target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding. Espressif ESP32-WROOM-32E 32MBit (4MB)
zł19.08
24h
Available quantity: 20
Available
Bluetooth 4.0 BLE module with UART serial interface. Controlled by AT commands, it can be supplied with the voltage from 3.6 V to 6 V. AT-09/HM-10
zł18.45
24h
Available quantity: 9
Available
Bluetooth 5 module with nRF52840 chip. It is based on the ARM Cortex-M4 core with 1 MB Flash memory and 256 KB RAM memory. It is equipped with a USB interface. SparkFun DEV-15025
zł193.64
24h
Available quantity: 1
Available
The Vtec by BLOW Bluetooth 4.0 OBD2 diagnostic interface is an advanced tool for monitoring vehicle parameters and diagnosing faults. It allows reading and deleting errors, analyzing performance and controlling engine operation in real time. Thanks to its compatibility with Android, iOS, Windows and MacOS systems and support for popular diagnostic applications, it is a convenient solution for every driver who cares about the technical condition of their vehicle. Vtec iTRON by BLOW
zł50.90
24h
Available quantity: 7
Available

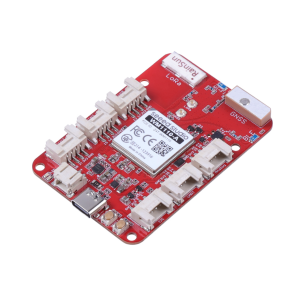

Seeed Studio 114993187 is an LPWAN Asset Tracker development kit based on the Wio-WM1110 module, supporting the Amazon Sidewalk network. With integrated GNSS, Wi-Fi, and Bluetooth, it enables precise asset tracking, while built-in sensors and compatibility with Grove modules provide extensive capabilities for IoT applications and monitoring systems.
