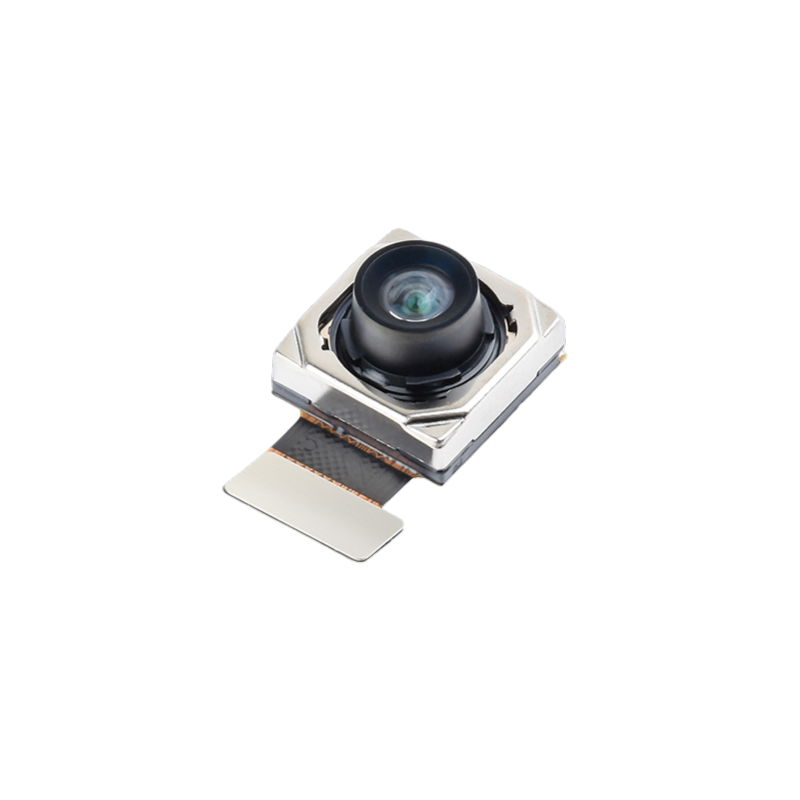

Main view
search
  • Main view
ID: 1205082
zł124.88
Tax included

zł101.53 tax excl.

Camera module with IMX708 sensor featuring 11.9 MP resolution, 120° wide field of view and autofocus. Designed for use with baseboards compliant with the Camera Module 3 standard as well as custom hardware designs. Waveshare IMX708-120 Camera Module

24h
Available
Available quantity: 3
Kamami is the official distributor of Waveshare displays, accessories and modules.

Description

Camera module based on the IMX708 image sensor, used in solutions compliant with the Camera Module 3 standard. The sensor provides 11.9 MP resolution (4608 × 2592 px), enabling detailed image capture in vision systems, IoT devices, and embedded applications.

A 120° field of view lens allows capturing a wide scene area. The autofocus mechanism supports automatic focus adjustment from 15 cm to infinity, ensuring sharp images under varying operating conditions.

The design supports integration with baseboards compliant with the Camera Module 3 standard as well as custom-developed hardware, allowing use in devices with non-standard form factors. The module is compatible with libcamera library, as well as Picamera2 and rpicam-apps tools, enabling quick deployment within Raspberry Pi environments.

Features

  • Sensor: IMX708
  • Resolution: 11.9 MP (4608 × 2592 px)
  • Sensor size: 7.4 mm (diagonal)
  • Field of view: 120°
  • Focal length: 3.08 mm
  • Aperture: F2.2
  • Focus range: 15 cm ~ ∞
  • Autofocus: Yes
  • Distortion: < 3.5%
  • IR filter: Built-in (IR-cut)
  • Interface: CSI (compatible with Camera Module 3 standard baseboards)
  • Lens mounting: Integrated module with factory-mounted lens
  • Operating temperature: 0°C ~ 50°C
  • Compatibility: Baseboards compliant with Camera Module 3 standard
  • Supported software: libcamera, Picamera2, rpicam-apps
  • Weight: 0.005 kg
1205082

Data sheet

Resolution
11,9 Mpx
Interface
CSI
Sensor
Sony IMX708
IR filter
Yes
Lens assembly
none
