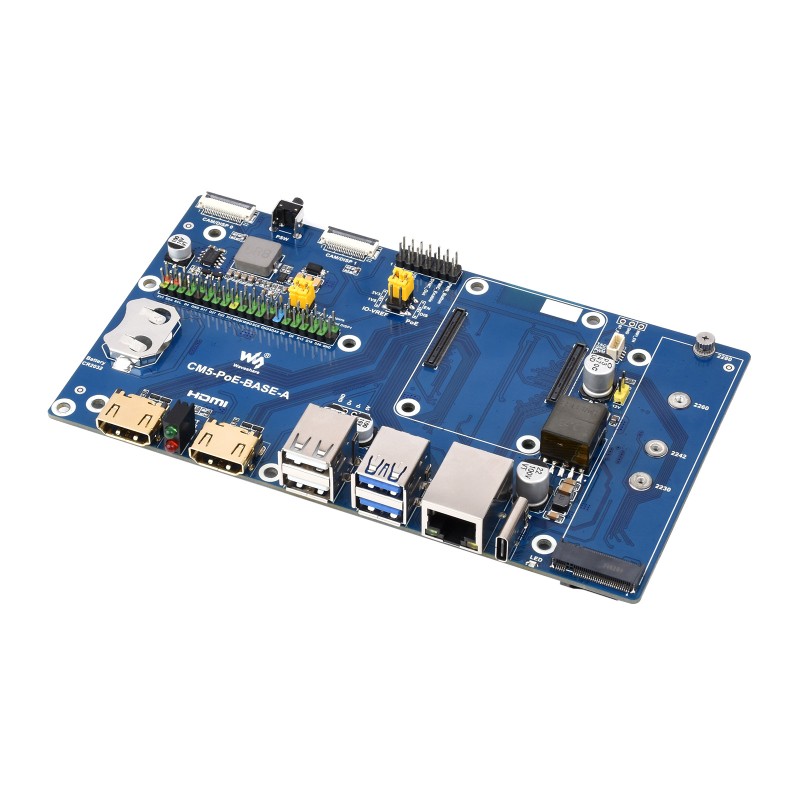

CM5-PoE-BASE-A base board with PoE for Raspberry Pi Compute Module 5 - Waveshare 29488
ID: 1197552
5902186314627
zł163.33
Tax included
zł132.79 tax excl.
CM5-PoE-BASE-A is a functional base board for the Raspberry Pi Compute Module 5, equipped with PoE power supply and a rich set of peripheral interfaces. With support for NVMe drives, MIPI cameras and displays, and two HDMI ports, it is well-suited for industrial projects, AI systems, and multimedia solutions. Ideal for prototyping and integration into finished products.
Description
The CM5-PoE-BASE-A base board is designed for use with all variants of the Raspberry Pi Compute Module 5. It enables Power over Ethernet (PoE – compliant with 802.3af/at) and provides a wide range of peripheral interfaces essential for building industrial, multimedia, and integrated system applications.
The board features HDMI ports, USB 3.2 and 2.0, NVMe M.2 slot, MIPI interfaces for cameras and displays, a 40PIN GPIO header, and a TF card socket (for CM5 Lite versions). A USB Type-C connector is also available for alternative power and programming.
Features
- CM5 socket – compatible with all Raspberry Pi Compute Module 5 variants
- Power via PoE (RJ45, IEEE 802.3af/at compliant), 5 V/5 A
- Alternative power via USB Type-C
- USB ports: 2× USB 3.2 Gen1 (5 Gbps), 2× USB 2.0
- HDMI: 2× ports, 4K output support
- MIPI: 2× interfaces (DSI/CSI), 22PIN connectors (0.5 mm pitch)
- M.2 slot (M-Key): supports NVMe drives (2280/2260/2242/2230) and AI accelerators
- TF card slot for CM5 Lite (no eMMC)
- Fan connector: 4PIN PWM 5 V
- RTC: CR/ML2032 battery socket
- GPIO header: standard Raspberry Pi 40PIN
- LED indicators: PWR, ACT, M.2 LED
- Configuration switches: logic level selection (3.3 V / 1.8 V), PoE enable
- Board dimensions: 160 × 90 mm
Included
- CM5-PoE-BASE-A base board x1
- Mounting screw set x1
