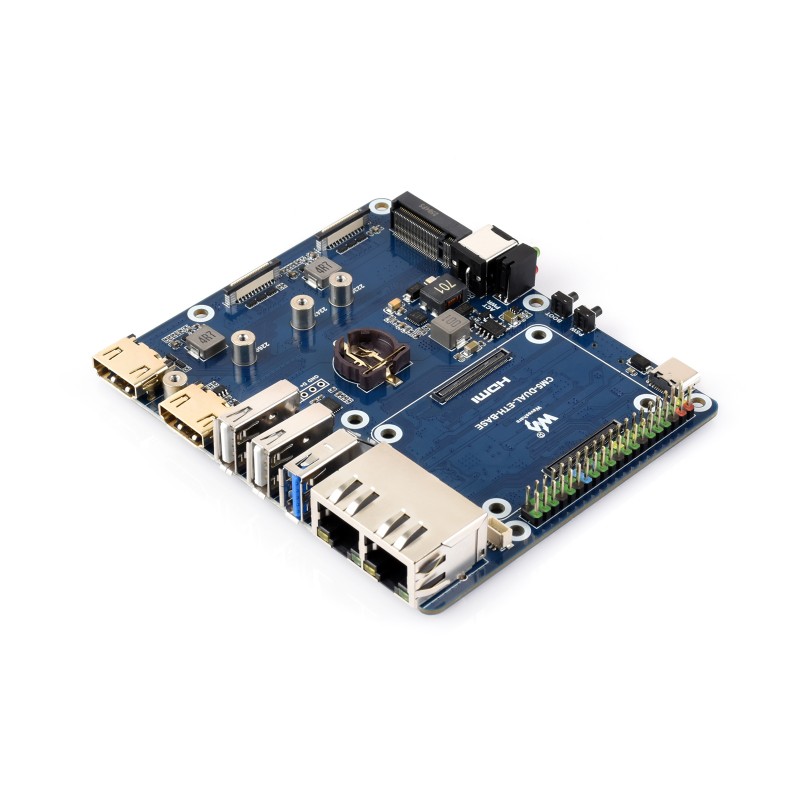

Dual Ethernet 1G / 2.5G Base Board for Raspberry Pi Compute Module 5 - Waveshare 32176

Description

The base board is designed for Raspberry Pi Compute Module 5, providing advanced networking and multimedia functionality for industrial and system applications. The board is equipped with two independent RJ45 Ethernet ports: one Gigabit Ethernet (1 Gb/s) and one 2.5 Gigabit Ethernet (2.5 Gb/s), enabling advanced networking solutions such as routers, communication gateways, and edge computing systems.

The board supports two HDMI outputs, allowing simultaneous 4K video display, as well as two four-lane MIPI interfaces (CSI/DSI) for connecting cameras and displays. The M.2 M Key connector (PCIe Gen2/Gen3 x1) enables the use of NVMe SSDs, significantly improving system performance compared to microSD storage.

A 40-pin GPIO header ensures compatibility with Raspberry Pi HAT and peripheral modules. The board also features USB 3.2 Gen1 and USB 2.0 ports, a PWM fan connector, BOOT and PWR buttons, an RTC circuit with backup battery support, and a wide power input range from 7 V to 36 V, making it suitable for industrial environments. The design supports both CM5 Lite and eMMC variants.

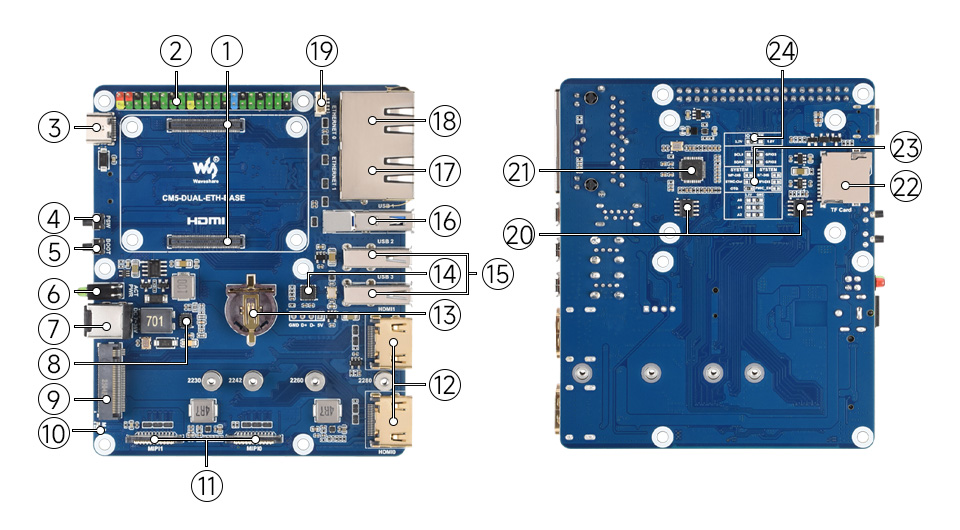

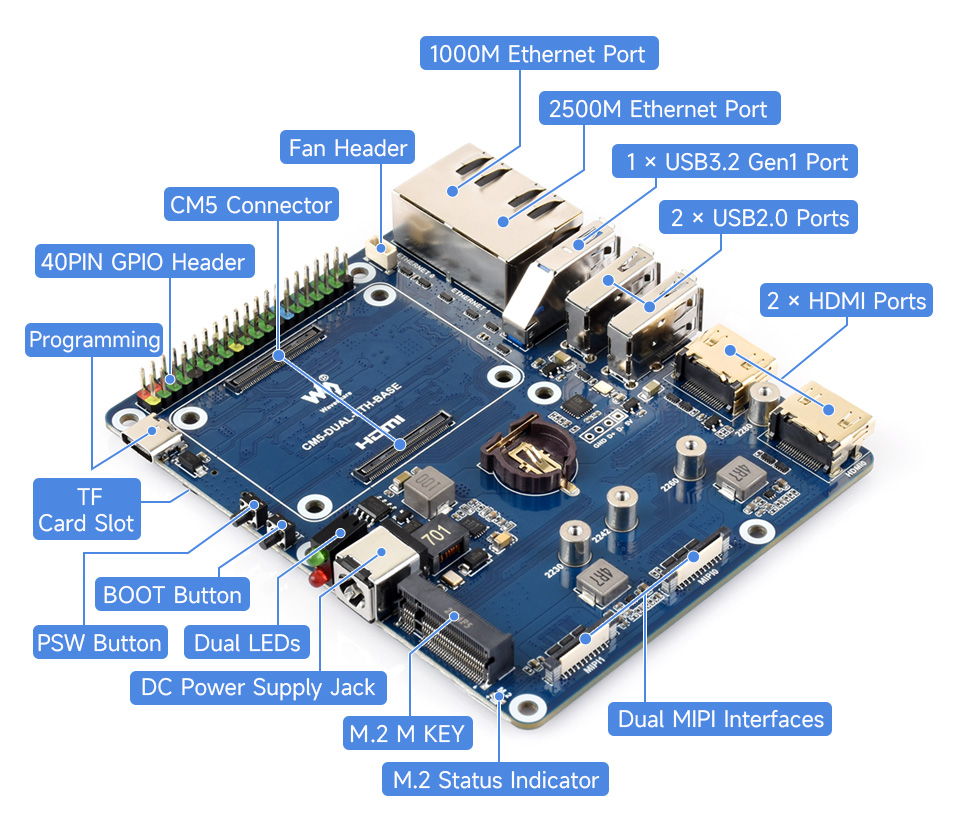

1. CM5 socket - Suitable for all variants of Compute Module 5
2. 40PIN GPIO header - Suitable for connecting to various HAT/HAT+ modules
3. Programming - used for eMMC burning
4. PSW power button - Long press to force power off, short press to soft power off or on
5. BOOT button - Press before powering on and release it after powering on to enter burning mode
6. STAT LED - Dual LED indicators
7. DC power jack
8. DC-DC power chip
9. M.2 M KEY - Supports 2280/2260/2242/2230 NVMe Solid State Drives or AI modules
10. M.2 LED - keeps blinking when NVMe drive reading/writing
11. MIPI Interfaces - for connecting to DSI displays or CSI cameras
12. HDMI ports - Supports dual 4K outputs
13. RTC battery header - for connecting an external RTC battery to maintain real-time clock operation
14. USB 2.0 HUB chip
15. USB 2.0 ports
16. USB 3.2 Gen1 port - supports up to 5 Gbps reading / writing speed
17. 2500M Ethernet RJ45 port - supporting 10M/100M/1000M/2500M network connections
18. 1000M Ethernet RJ45 port - supporting 10M/100M/1000M network connections
19. FAN header - for connecting the cooling fan, 5V, 4PIN JST-SH PWM fan connector
20. EEPROM and encryption chip
21. USB to 2500M Ethernet chip
22. TF card slot - for connecting a TF card with pre-burnt image (Lite variant ONLY)
23. Other function pins - Hardware disable function, write protection and chip address selection
24. IO-VREF selection - CM5 10 logic level: 3.3V (default) or 1.8V

Features

• Compatibility: Raspberry Pi Compute Module 5 (all variants)
• Ethernet ports:
  • 1 × RJ45 Gigabit Ethernet (10/100/1000 Mb/s)
  • 1 × RJ45 2.5 Gigabit Ethernet (10/100/1000/2500 Mb/s)
• Video outputs: 2 × HDMI (dual 4K display support)
• MIPI interfaces: 2 × 4-lane MIPI CSI/DSI (22-pin, 0.5 mm)
• Expansion header: 40-pin GPIO (Raspberry Pi)
• USB:
  • 1 × USB 3.2 Gen1
  • 2 × USB 2.0
• M.2 connector: M Key (PCIe Gen2/Gen3 x1, NVMe SSD support)
• Storage support: TF (microSD) slot for CM5 Lite variants
• Power input: 7–36 V DC
• Cooling: 5 V PWM fan connector (4-pin JST-SH)
• Additional components: EEPROM, encryption chip
• RTC: backup battery connector
• I/O logic levels: selectable 3.3 V / 1.8 V
• Board dimensions: 109.0 × 91.5 mm
• Applications: Industrial networking gateways and routers; Remote communication systems; Edge and edge-AI servers; Monitoring and automation systems; Raspberry Pi CM5 applications in industrial environments

Kit includes

• CM5-DUAL-ETH-BASE base board – 1 pc
• Mounting screw set – 1 set
