• New
reComputer R1113-10 – Raspberry Pi CM4 Industrial Computer, IoT Gateway with AI, 2 GB RAM, 8 GB eMMC - Seeed Studio 113991375
search
  • reComputer R1113-10 – Raspberry Pi CM4 Industrial Computer, IoT Gateway with AI, 2 GB RAM, 8 GB eMMC - Seeed Studio 113991375
ID: 1200472
zł780.34
Tax included

zł634.42 tax excl.

reComputer R1113-10 is an IoT gateway and industrial controller based on Raspberry Pi CM4 with 2 GB RAM and 8 GB eMMC, equipped with RS485, RS232, DI, DO, and Ethernet interfaces with PoE support. It supports wireless communication and edge AI, making it suitable for automation, smart city, and monitoring systems.

4 weeks
On request
Kamami is the official distributor of Seeed Studio modules and development kits. All products of this brand in our offer are original and come directly from the manufacturer.

Description

reComputer R1113-10 from the R1100 series is an industrial edge computer based on the Raspberry Pi Compute Module 4 with a quad-core ARM Cortex-A72 1.5 GHz processor. The device runs Raspbian, Debian, Yocto, or Buildroot operating systems and supports artificial intelligence technologies at the edge.

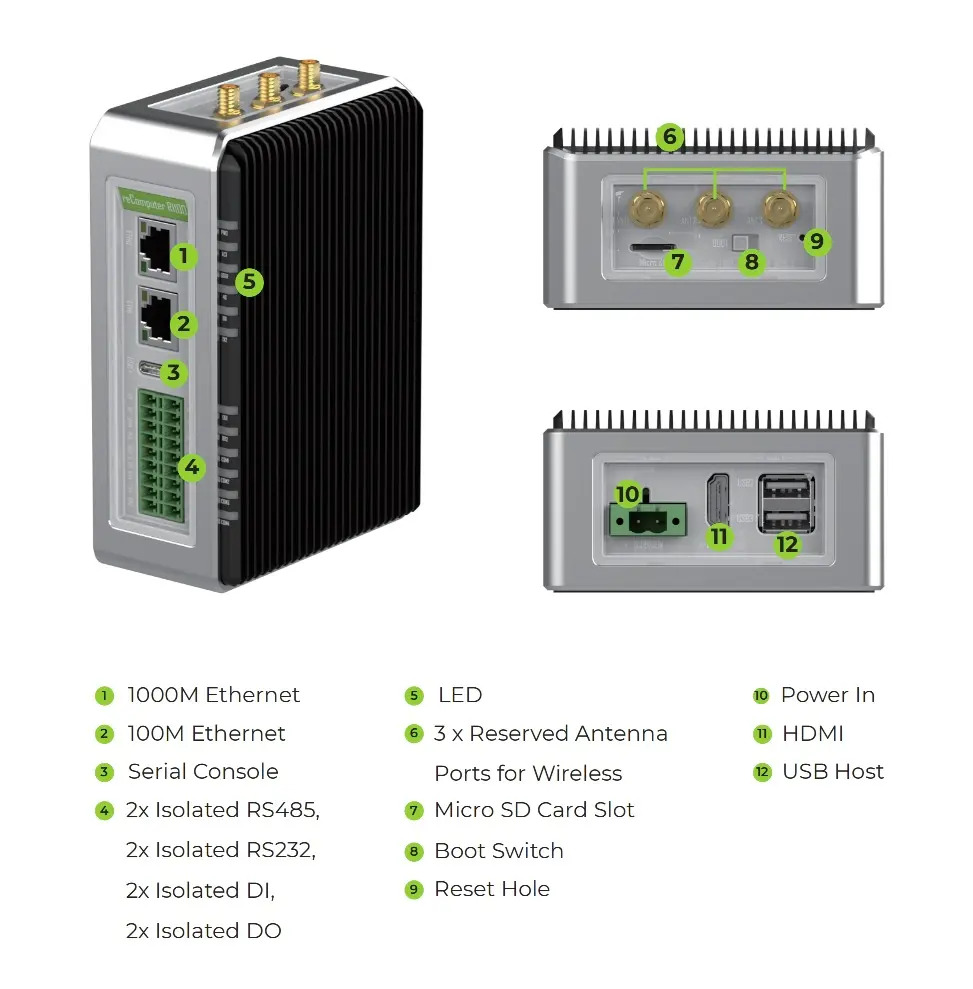

Equipped with a rich set of industrial interfaces (2 × RS485, 2 × RS232, 2 × DI, 2 × DO) and two Ethernet ports (including 1 Gb/s with PoE support), it serves as an IoT gateway, automation controller, and AI platform. It supports expansion with wireless communication – Wi-Fi 2.4/5 GHz, BLE 5.0, LoRa, and 4G LTE – and features an M.2 NVMe slot for additional storage. Fanless design and wide operating temperature range (-30°C to 70°C) ensure reliability in industrial applications.

Properties

  • CPU: Raspberry Pi CM4, Quad-core Cortex-A72 1.5 GHz
  • RAM: 2 GB
  • Storage: eMMC 8 GB + M.2 NVMe SSD 2280-M Key slot
  • Operating systems: Raspbian, Debian, Yocto, Buildroot
  • Power supply: DC 9–36 V (2-pin terminal block), IEEE 802.3af PoE* support
  • Power consumption: 2.88 W (idle), 5.52 W (full load)
  • 1 × Ethernet 10/100/1000 Mb/s (PoE*)
  • 2 × USB 2.0 Host, 1 × USB-C for system flashing
  • 2 × RS485 (isolated)
  • 2 × RS232 (isolated)
  • 2 × DI (5–24 V DC, isolated)
  • 2 × DO (<60 V DC, isolated)
  • 1 × HDMI 2.0
  • 1 × nano SIM card slot (internal)
  • 1 × microSD slot
  • Wireless communication: Wi-Fi 2.4/5 GHz, BLE 5.0, optional LoRa, 4G LTE, Zigbee
  • Additional functions: 12 × LED, buzzer, RTC, watchdog, TPM 2.0*/ATECC608A, optional SuperCAP UPS
  • Protection rating: IP40
  • Operating temperature range: -30°C to 70°C
  • Operating humidity: 10–95% RH
  • Dimensions: compact housing for DIN-rail mounting
  • Certifications: CE, FCC, TELEC, RoHS

Set includes

  • 1 × reComputer R1113-10 industrial computer
  • 1 × DIN-rail mount
  • 1 × screw set
  • 1 × DC power adapter (female socket to terminal block)
  • 1 × 9 × 2-pin terminal block connector (male)
  • 5 × 120 Ω resistors
  • 1 × user manual
